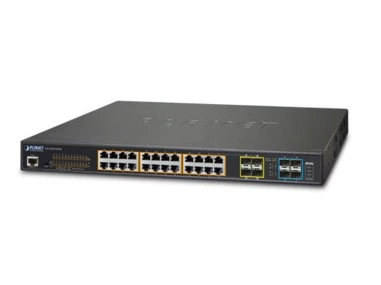

Planet GS 4210 24P4C PoE Managed Switch
Teknik Özellikler
| Physical Port |
| 28-port 10/100/1000BASE-T Gigabit RJ45 copper with 24-port IEEE 802.3at/af PoE injector |
| 4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-28 compatible with 100BASE-FX SFP |
| RJ45 console interface for switch basic management and setup |
| Power over Ethernet |
| Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE |
| Backward compatible with IEEE 802.3af Power over Ethernet |
| Up to 24 ports of IEEE 802.3af / 802.3at devices powered |
| Supports PoE power up to 30.8 watts for each PoE port |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100 meters |
| PoE management |
| Total PoE power budget control |
| Per port PoE function enable/disable |
| PoE Port power feeding priority |
| Per PoE port power limitation |
| PD classification detection |
| PD alive-check |
| PoE schedule |
| Layer 2 Features |
| Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) |
| High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth |
| Supports VLAN |
| IEEE 802.1Q tagged VLAN |
| Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) |
| Protocol VLAN |
| Voice VLAN |
| Private VLAN |
| Management VLAN |
| GVRP |
| Supports Spanning Tree Protocol |
| STP (Spanning Tree Protocol) |
| RSTP (Rapid Spanning Tree Protocol) |
| MSTP (Multiple Spanning Tree Protocol) |
| STP BPDU Guard, BPDU filtering and BPDU forwarding |
| Supports Link Aggregation |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) |
| Cisco ether-channel (static trunk) |
| Maximum 8 trunk groups, up to 8 ports per trunk group |
| Provides port mirror (many-to-1) |
| Loop protection to avoid broadcast loops |
| Quality of Service |
| Ingress and egress rate limit per port bandwidth control |
| Storm control support |
| Broadcast / Unknown unicast / Unknown multicast |
| Traffic classification |
| IEEE 802.1p CoS |
| TOS / DSCP / IP precedence of IPv4/IPv6 packets |
| Strict priority and Weighted Round Robin (WRR) CoS policies |
| Multicast |
| Supports IPv4 IGMP snooping v2 and v3 |
| Supports IPv6 MLD snooping v1, v2 |
| IGMP querier mode support |
| IGMP snooping port filtering |
| MLD snooping port filtering |
| Security |
| Authentication |
| IEEE 802.1X port-based network access authentication |
| Built-in RADIUS client to co-operate with the RADIUS servers |
| RADIUS / TACACS+ login user access authentication |
| Access control list |
| IPv4 / IPv6 IP-based ACL |
| MAC-based ACL |
| MAC security |
| Static MAC |
| MAC filtering |
| Port security for source MAC address entries filtering |
| DHCP snooping to filter distrusted DHCP messages |
| Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding |
| IP source guard prevents IP spoofing attacks |
| DoS attack prevention |
| SSH/SSL |
| Management |
| IPv4 and IPv6 dual stack management |
| Switch management interface |
| Web switch management |
| Telnet command line interface |
| SNMP v1, v2c and v3 |
| SSH and SSL secure access |
| User privilege levels control |
| Built-in Trivial File Transfer Protocol (TFTP) client |
| BOOTP and DHCP for IP address assignment |
| System maintenance |
| Firmware upload/download via HTTP / TFTP |
| Configuration upload / download through web interface |
| Dual images |
| Hardware reset button for system reboot or reset to factory default |
| SNTP Network Time Protocol |
| Cable diagnostics |
| Link Layer Discovery Protocol (LLDP) and LLDP-MED |
| SNMP trap for interface link up and link down notification |
| Event message logging to remote Syslog server |
| Four RMON groups (history, statistics, alarms and events) |
| PLANET smart discovery utility |
| Smart fan with speed control |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Rack Mount
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı :
24 Port
24 Port
