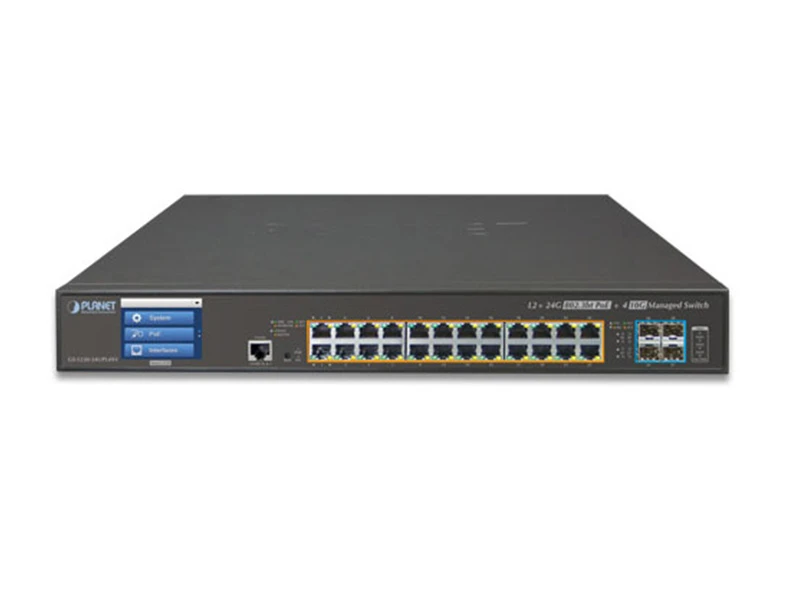

Planet GS 5220 24PL4XVR PoE Managed Switch

Üretici:Planet
Kullanılabilirlik:stokta 53 öğe(ler)
Ürün Kodu:Planet GS 5220 24PL4XVR
Fiyat teklifi alın
Planet GS 5220 24PL4XVR, 24 Port, 10Gbps SFP+, PoE Schedule, 36W Per Port, L3 Static Routing, Touch LCD, 10/100/1000T, PoE Managed Switch

Açıklama

Planet GS 5220 24PL4XVR PoE Managed Switch

Özellikler

  Physical Port
  • 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3af/at PoE+ injector
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 console interface for switch basic management and setup
  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 24 ports of IEEE 802.3af/IEEE 802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE admin-mode control
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD classification detection
  • Temperature threshold control
  • PD alive check
  • PoE schedule
  Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast/Multicast/Unknown unicast
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 255 VLANs groups, out of 4094 VLAN IDs
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  • BPDU Guard
  • Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 14 trunk groups, up to 4 ports per trunk group
  • Up to 80Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  Layer 3 Features
  • IP interfaces (Max. 8 VLAN interfaces)
  • Routing table (Max. 32 routing entries)
  • Routing Protocols (IPv4/IPv6 software static routing)
  Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
  Multicast
  • Supports IGMP snooping v1, v2 and v3
  • Supports MLD snooping v1 and v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • Multicast VLAN Registration (MVR) support
  Security
  • Authentication
  • IEEE 802.1x port-based/MAC-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • TACACS+ login users access authentication
  • RADIUS/TACACS+ users access authentication
  • Access Control List
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter untrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder
  Management
  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
  • Console/Telnet Command Line Interface
  • Web switch management
  • SNMP v1, v2c, and v3 switch management
  • SSH/SSL secure access
  • 2.4-inch color LCD touch screen
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • Firmware upload/download via HTTP/TFTP
  • Reset button for system reboot or reset to factory default
  • Dual images
  • DHCP Relay
  • DHCP Option 82
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network Diagnostic
  • ICMPv6/ICMPv4 remote ping
  • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface Link Up and Link Down notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • Smart fan with speed control
  Redundant Power System (GS-5220-24PL4XVR)
  • Redundant 100~240V AC/36-60V DC dual power
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience

pdfPlanet GS 5220 24PL4XVR PoE Managed Switch Pdf Dosyası6.95 MB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı : Tooltip 16 Port
