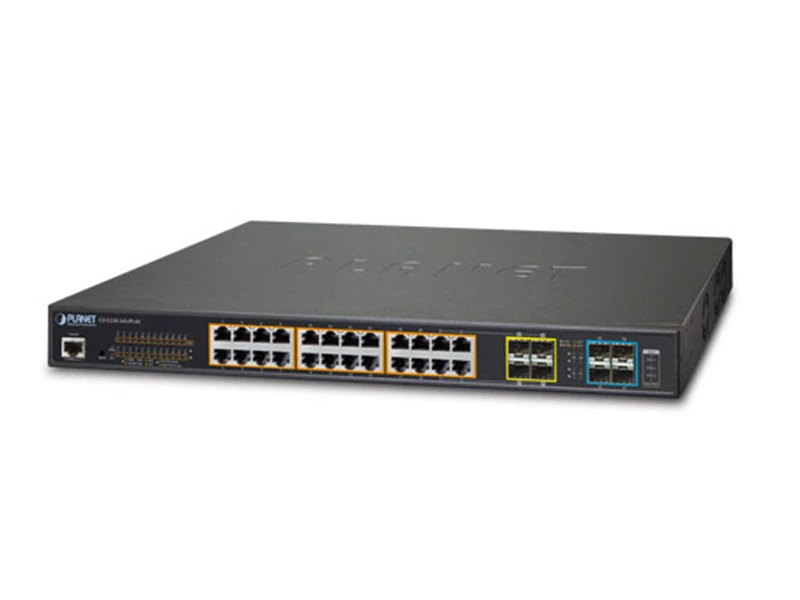

Planet GS 5220 24UPL4X PoE Managed Switch

Özellikler

Physical Port

24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3af/at/bt Ultra PoE injector
4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-21 to port-24 compatible with 100BASE-FX SFP
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
RJ45 console interface for switch basic management and setup

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span/mid-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 24 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt Ultra PoE devices powered
Supports PoE power up to 75 watts for each ultra PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE admin-mode control
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
Temperature threshold control
PD alive check
PoE schedule

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 255 VLANs groups, out of 4094 VLAN IDs
Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 14 trunk groups, up to 8 ports per trunk group
Up to 16Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Layer 3 Features

IP interfaces (Max. 8 VLAN interfaces)
Routing table (Max. 32 routing entries)
Routing Protocols (IPv4/IPv6 software static routing)

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP snooping v1, v2 and v3
Supports MLD snooping v1 and v2
Querier mode support
IGMP snooping port filtering
MLD snooping port filtering
Multicast VLAN Registration (MVR) support

Security

Authentication
IEEE 802.1x port-based/MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
TACACS+ login users access authentication
RADIUS/TACACS+ users access authentication
Access Control List
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC/IP address binding
DHCP Snooping to filter untrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management

IPv4 and IPv6 dual stack management
Switch Management Interfaces
Console/Telnet Command Line Interface
Web switch management
SNMP v1, v2c, and v3 switch management
SSH/SSL secure access
IPv6 IP Address/NTP/DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP/TFTP
Reset button for system reboot or reset to factory default
Dual images
DHCP Relay
DHCP Option 82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) and LLDP-MED
Network Diagnostic
ICMPv6/ICMPv4 remote ping
Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
SMTP/Syslog remote alarm
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interface Link Up and Link Down notification
System Log
PLANET Smart Discovery Utility for deployment management
Smart fan with speed control

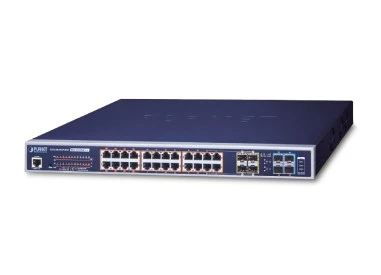

Redundant Power System (GS-5220-24UPL4XR)

Redundant 100~240V AC/36-60V DC dual power
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience

Teknik Özellikler

Hardware Specifications
Copper Ports	24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
SFP/mini-GBIC Slots	Compatible with 100BASE-FX SFP transceiver
SFP+ Slots	4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
SFP+ Slots	Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console	1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	128Gbps (non-blocking)
Throughput	95.23Mpps@64 bytes
Address Table	16K entries, automatic source address learning and aging
Shared Data Buffer	32M bits
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	10K bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
Dimensions (W x D x H)	440 x 300 x 44.5 mm, 1U height
Weight	5082g (GS-5220-24UPL4X)
Weight	5119g (GS-5220-24UPL4XR)
LED	System:
	SYS (Green)
	AC/PWR (Green)
	DC (Green) (GS-5220-24UPL4XR only)
	Fan1/2/3 Alert ( Red )
	PoE PWR Alert ( Red )
	PoE Ethernet Interfaces (Port-1 to Port-24):
	PoE-in-Use (802.3bt - Green) (802.3af/at - Orange)
	Ethernet Interfaces (Port-1 to Port-24):
	1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
	100/1000Mbps SFP Combo Interfaces (Port-21 to Port-24):
	1000 (Green), 100 (Orange)
	1/10G SFP+ Interfaces (Port-25 to Port-28):
	1000 (Green), 10G (Orange)
Power Consumption	Max. 662.1 watts/2257.8 BTU
Power Requirements – AC	AC 100~240V, 50/60Hz, 10A
Power Requirements – DC	DC 36~60V, 2A (GS-5220-24UPL4XR only)
ESD Protection	6KV DC
Fan	3 smart fans
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at/802.3bt Ultra PoE PSE
PoE Power Supply Type	End-span/Mid-span/UPoE
PoE Power Output	Per port 52V DC, 75 watts (max.)
Power Pin Assignment	End-span: 1/2(-), 3/6(+)
	Mid-span: 4/5(+), 7/8(-)
	UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Budget	600 watts (max.)
PoE Ability PD @ 15 watts	24 units
PoE Ability PD @ 30 watts	20 units
PoE Ability PD @ 60 watts	10 units
Layer 2 Management Functions
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow control disable/enable
Port Status	Display each port’s speed duplex mode, link status, flow control status,
Port Status	auto-negotiation status, trunk status
Port Mirroring	TX/RX/Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged based VLAN
	Q-in-Q tunneling
	Private VLAN Edge (PVE)
	MAC-based VLAN
	Protocol-based VLAN
	Voice VLAN
	IP subnet-based VLAN
	MVR (Multicast VLAN registration)
	Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk
Link Aggregation	14 groups with 8 port per trunk
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP)
	IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
	IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS	Traffic classification based, strict priority and WRR
	8-level priority for switching:
	- Port number
	- 802.1p priority
	- 802.1Q VLAN tag
	- DSCP/ToS field in IP packet
IGMP Snooping	IGMP (v1/v2/v3) snooping, up to 255 multicast groups
	IGMP querier mode support
MLD Snooping	MLD (v1/v2) snooping, up to 255 multicast groups
MLD Snooping	MLD querier mode support
Access Control List	IP-based ACL/MAC-based ACL
Access Control List	Up to 256 entries
Bandwidth Control	Per port bandwidth control
	Ingress: 100Kbps~1000Mbps
	Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing
Routing Protocols	IPv6 software static routing
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
SNMP MIBs	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2863 Interface MIB
	RFC 2665 Ether-Like MIB
	RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC 2737 Entity MIB
	RFC 2618 RADIUS Client MIB
	RFC 2863 IF-MIB
	RFC 2933 IGMP-STD-MIB
	RFC 3411 SNMP-Frameworks-MIB
	RFC 4292 IP Forward MIB
	RFC 4293 IP MIB
	RFC 4836 MAU-MIB
	IEEE 802.1X PAE
	LLDP
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3ae 10Gb/s Ethernet
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3bt 4-pair Power over Ethernet
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 3376 IGMP v3
	RFC 2710 MLD v1
	FRC 3810 MLD v2
Environment
Operating	Temperature: 0 ~ 50 degrees C for AC power input
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 80 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
