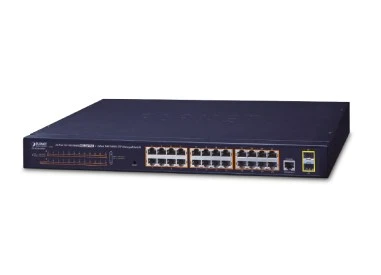

Planet IGS 5225 24P4S Endüstriyel PoE Switch

Özellikler

Physical Port

24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24, compatible with 100BASE-FX SFP
One RJ45 console interface for basic management and setup

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
Up to 24 IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE management features
Total PoE power budget control
Per port PoE function enable/disable
PoE admin-mode control
PoE port power feeding priority
Per PoE port power limit
PD classification detection
Intelligent PoE features
Temperature threshold control
PoE usage threshold control
PD alive check
PoE schedule
Industrial Case & Installation
IP30 metal case protection
19-inch rack-mountable design
48~56V DC, redundant power with polarity reverse protect function
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Digital Input and Digital Output

2 Digital Input (DI)
2 Digital Output (DO)
Integrate sensors into auto alarm system
Transfer alarm to IP network via email and SNMP trap

Layer 3 IP Routing Features

Supports maximum 32 software static routes and route summarization

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 255 VLANs groups, out of 4094 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 12 trunk groups with 4 ports per trunk group
Up to 8Gbps bandwidth (duplex mode)
Provides port mirror (1-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
IP TOS/DSCP/IP precedence
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP snooping v1, v2 and v3
Supports MLD snooping v1 and v2
Querier mode support
IGMP snooping port filtering
MLD snooping port filtering
MVR (Multicast VLAN Registration)

Security

IEEE 802.1x port-based/MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
TACACS+ login users access authentication
RADIUS/TACACS+ users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC/IP address binding
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
IP address access management to prevent unauthorized intruder

Management

Switch Management Interfaces
Console/Telnet Command Line Interface
Web switch management
SNMP v1 and v2c switch management
SSH/SSL and SNMP v3 secure access
Four RMON groups (history, statistics, alarms, and events)
IPv6 IP address/NTP/DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP/TFTP
DHCP Relay
DHCP Option 82
User Privilege levels control
Network Time Protocol (NTP)
Link Layer Discovery Protocol (LLDP)
SFP-DDM (Digital Diagnostic Monitor)
Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deployment management

Teknik Özellikler

Hardware Specifications
Copper Ports	24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	4 1000BASE-SX/LX/BX SFP interfaces , shared with Port-21 to Port-24
SFP/mini-GBIC Slots	Compatible with 100BASE-FX SFP
PoE Injector Port	24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	48Gbps/non-blocking
Throughput (packet per second)	35.71Mpps@ 64Bytes packet
Address Table	8K entries, automatic source address learning and aging
Shared Data Buffer	4Mbits
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	9Kbytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
ESD Protection	6KV DC
Enclosure	IP30 metal case
Installation	19-inch rack-mountable design
Connector	Fixed 6-pin terminal block for power input
	Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
	Removable 6-pin terminal block for DI/DO interface
	Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI, DO	2 Digital Input (DI):
	Level 0: -24V~2.1V (±0.1V)
	Level 1: 2.1V~24V (±0.1V)
	Input load to 24V DC, 10mA max.
	2 Digital Output (DO):
	Open collector to 24V DC, 100mA max.
LED Indicator	System:
	DC 1 (Green)
	DC 2 (Green)
	Fault Alarm ( Red )
	I/O ( Red )
	PoE Fault ( Red )
	PoE Max. ( Red )
	Ring (Green)
	Ring Owner (Green)
	Per 10/100/1000T RJ45 PoE+ Ports:
	PoE-in-Use (Orange)
	LNK/ACT (Green)
	Per SFP Interface:
	100 LNK/ACT (Orange)
	1000 LNK/ACT (Green)
Dimensions (W x D x H)	440 x 300 x 44.5 mm
Weight	3638g
Power Requirements	Dual 48~56V DC (>53V DC for PoE+ output recommended)
Power Consumption	Max. 23.9 watts/81.55BTU (Power on without PoE loading)
Power Consumption	Max. 423 watts/1443.34BTU (Full loading with PoE function)
Power Over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	IEEE 802.3af Standard
	- Per port 48V~53V DC (depending on the power supply), max. 15.4 watts
	IEEE 802.3at Standard
	- Per port 53V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	48V Power input
	- 300W maximum (depending on power input)
	56V Power input
	- 400W maximum (depending on power input)
Max. number of Class 2 PDs	24
Max. number of Class 3 PDs	24
Max. number of Class 4 PDs	15
Layer 2 Function
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow control disable/enable
	Power saving mode control
Port Status	Display each port’s speed duplex mode, link status, flow control status,
Port Status	auto negotiation status, trunk status
Port Mirroring	TX/RX/both
Port Mirroring	1 to 1 monitor
VLAN	802.1Q tagged based VLAN, up to 255 VLAN groups
	Q-in-Q tunneling
	Private VLAN Edge (PVE)
	MAC-based VLAN
	Protocol-based VLAN
	Voice VLAN
	MVR (Multicast VLAN Registration)
	Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk
Link Aggregation	Supports 12 trunk groups with 4 ports per trunk group
QoS	Traffic classification based, strict priority and WRR
	8-level priority for switching
	- Port number
	- 802.1p priority
	- 802.1Q VLAN tag
	- DSCP/TOS field in IP packet
IGMP Snooping	IGMP (v1/v2/V3) snooping, up to 255 multicast groups
IGMP Snooping	IGMP querier mode support
MLD Snooping	MLD (v1/v2) snooping, up to 255 multicast groups
MLD Snooping	MLD querier mode support
Access Control List	IP-based ACL/MAC-based ACL
Access Control List	Up to 123 entries
Bandwidth Control	Per port bandwidth control
	Ingress: 500Kb~1000Mbps
	Egress: 500Kb~1000Mbps
SNMP MIBs	RFC-1213 MIB-II
	IF-MIB
	RFC-1493 Bridge MIB
	RFC-1643 Ethernet MIB
	RFC-2863 Interface MIB
	RFC-2665 Ether-Like MIB
	RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
	RFC-2737 Entity MIB
	RFC-2618 RADIUS Client MIB
	RFC-2933 IGMP-STD-MIB
	RFC3411 SNMP-Frameworks-MIB
	IEEE 802.1X PAE
	LLDP
	MAU-MIB
Layer 3 Function
IP Interfaces	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing
Routing Protocols	IPv6 software static routing
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall)
	IEC60068-2-27 (shock)
	IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
