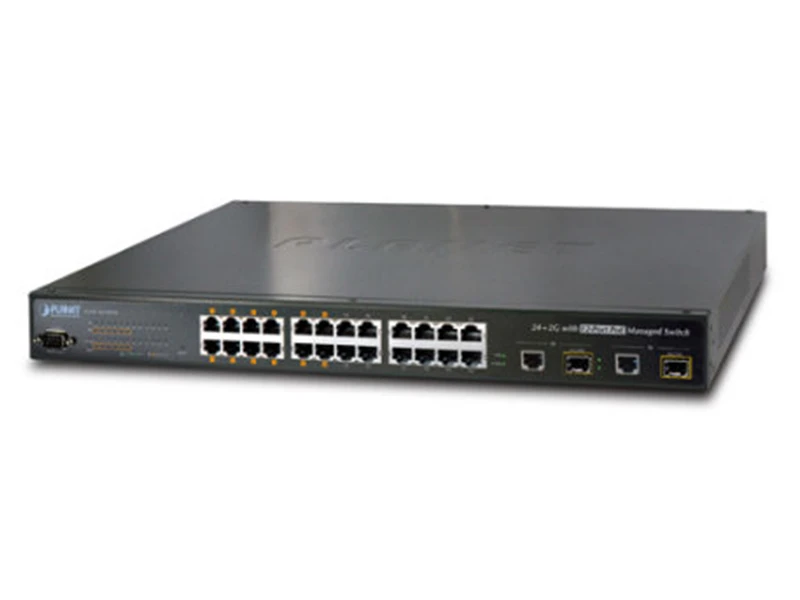

Planet PL FGSW 2612PVM PoE Switch

Özellikler

24 10/100 Mbps Fast Ethernet ports
12 PoE Injector ports ( Port 1 to port 12)
2 10/100/1000Mbps TP
SFP shared combo interfaces
RS-232 male DB9 console interface for Switch basic management and setup
Reset button for system management
24-Port 10/100Base-T 12-Port IEEE 802.3af PoE Injector
Port 1 ile Port 12 arası
Per port 15.4 watt
PoE Power Budget 110 watt
2 x 1000Base-SX/LX/BX SFP/mini-GBIC yuva
1 x konsol port
1 x Reset düğmesi (sistem yönetimi için)

Teknik Özellikler

Hardware Specification
10/100Mbps Copper Ports	24 10/ 100Base-TX RJ-45 auto-MDI/MDI-X ports
1000Mbps Copper Ports	2 10/100/1000Mbps RJ-45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000Base-SX/LX/BX, shared with Port-25~Port-26
PoE Ports	12 (port 1 to port 12)
Switch Architecture	Store-and-Forward
Switch Fabric	8.8Gbps / non-blocking
Switch Throughput	6.547Mpps @64Bytes
Address Table	8K entries
Share Data Buffer	512Kbytes
Maximum Frame Size	9K Bytes
Flow Control	Back pressure for half-duplex
Flow Control	IEEE 802.3x pause frame for full-duplex
LED	Power, Fan Alarm
	Link / Activity (Green)
	PoE In-Use (Amber)
	1000 LNK / ACT(Green)
	10/100 LNK / ACT(Green)
Reset Button	< 5 sec: System reboot
Reset Button	> 8 sec: Factory Default
Dimensions (W x D x H)	440 x 265 x 44 mm, 1U height
Weight	3.6kg
Power Requirements	100~240V AC, 50-60 Hz
Power Consumption / Dissipation	150 watts maximum / 511.5 BTU/hr maximum
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type	End-span
PoE Power Output	Per Port 48V DC, 350mA . max. 15.4 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	110 watts
Max. number of Class 2 PD	12
Max. number of Class 3 PD	6
Layer 2 Functions
Management Interface	Console, Telnet, Web Browser, SSL, SNMPv1, v2c
Port Configuration	Port disable / enable
	Auto-Negotiation
	10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
Bandwidth Control	Ingress / Egress Rate Control
Bandwidth Control	Allow to configure per 128Kbps
VLAN	IEEE 802.1Q Tag-based VLAN
	Port-based VLAN
	Q-in-Q tunneling
	Up to 255 VLANs groups, out of 4041 VLAN IDs
Link Aggregation	Static Port Trunk
	IEEE 802.3ad LACP (Link Aggregation Control Protocol)
	Supports 13 groups of 8-Port trunk support
QoS	Traffic classification based on:
	-Port priority
	-802.1p priority
	-DSCP / TOS field in IP Packet
IGMP Snooping	IGMP (v1 / v2) Snooping, up to 256 multicast Groups
IGMP Snooping	IGMP Querier support
Port Mirror	RX / TX / Both
Port Mirror	1-to-1 mirroring
Security	IEEE 802.1x Port-based Network access control
	Port Security
	Static MAC
	MAC Filtering
	MAC / IP Binding
Access Control List	IP-based Layer 3 / Layer 4 ACL
Access Control List	Up to 220 ACL rule entries
SNMP MIBs	RFC-1213 MIB-II
	RFC-2863 Interface MIB
	RFC-2665 EtherLike MIB
	RFC-1493 Bridge MIB
	RFC-2819 RMON MIB (Group 1, 2, 3,9)
	POWER-ETHERNET-MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3: 10Base-T
	IEEE 802.3u: 100Base-TX
	IEEE 802.3z: 1000Base- SX/LX
	IEEE 802.3ab: 1000Base-T
	IEEE 802.3x: Flow Control and Back pressure
	IEEE 802.3ad: Port trunk with LACP
	IEEE 802.1D: Spanning tree protocol
	IEEE 802.1w: Rapid spanning tree protocol
	IEEE 802.1p: Class of service
	IEEE 802.1Q: VLAN Tagging
	IEEE 802.1x: Port Authentication Network Control
	IEEE 802.3af: Power over Ethernet
Environmental
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 20 ~ 95%
Storage	Temperature: -10 ~ 70 degrees C
