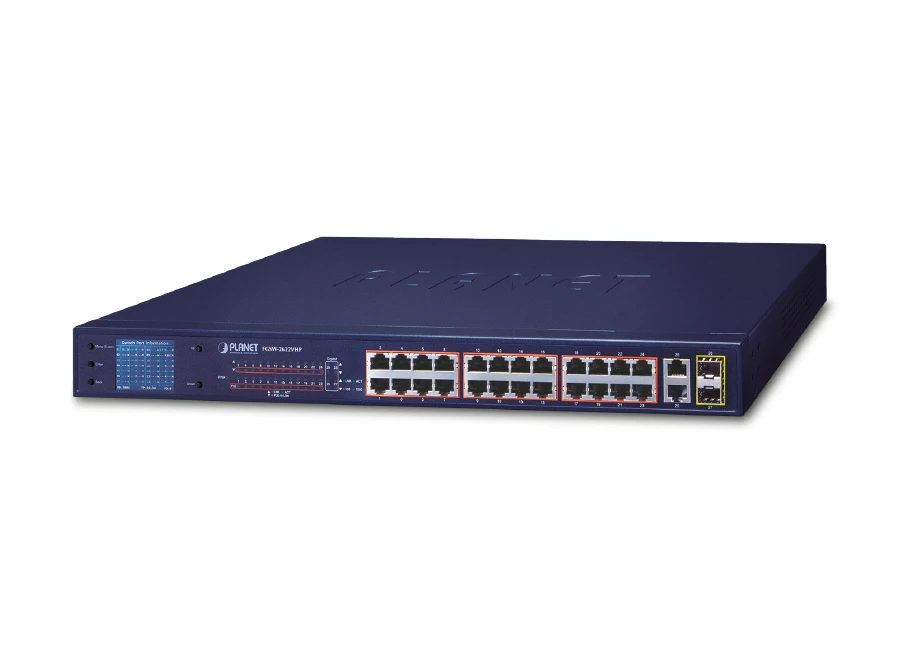

Planet PL FGSW 2622VHP PoE Switch

Özellikler

24-Port 10/100Base-T IEEE 802.3at/af PoE injector
Per port 30.8 watt
PoE Power Budget 300 Watt
2-Port 10/100/1000Base-T (combo port)
2 x 1000BASE-X mini-GBIC/SFP yuva (combo port)

Teknik Özellikler

Hardware Specifications
802.3af/802.3at PoE Injector Port	24
10/100BASE-TX MDI/MDIX Ports	24
10/100/1000BASE-T MDI/MDIX Ports	2 (Combo Port)
1000BASE-X SFP/mini-GBIC Slots	2 (Combo Port)
DIP Switch	1 for standard mode/VLAN mode operation
Switch Architecture	Store-and-Forward
Switch Fabric	8.8Gbps/non-blocking
Switch Throughput@64 bytes	6.54Mpps@64bytes
MAC Address Table	4K entries
Maximum Frame Size	1536 bytes
Flow Control	IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex
LED	System:
	Power (Green)
	10/100BASE-TX RJ45 Interfaces:
	10/100Mbps LNK/ACT (Green)
	PoE-in-Use (Orange)
	10/100/1000BASE-T RJ45/SFP Interfaces:
	LNK/ACT (Green)
	100/1000 (Green)
LCD Monitor	■ Total PoE budget
	■ Total PoE usage
	■ Per port PoE usage
	■ PD light load protection/PD over load protection
	■ Short-circuit protection(SCP)
	■ Low voltage alarm, high voltage alarm
	Refresh PoE status display every 10 seconds
Dimensions (W x D x H)	233 x 440 x 44 mm (1U height)
Enclosure	Metal
Weight	3.3kg
Power Requirements	AC 100~240V, 50/60Hz, 5A max.
Power Consumption/Dissipation	Max. 330 watts/1125 BTU
Thermal Fan	2
ESD Protection	Contact Discharge of ±4KV DC
ESD Protection	Air Discharge of ±6KV DC
Surge Immunity	±4KV
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
PoE Power Output	Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	300 watts
Max. Number of Class 2 PDs	24
Max. Number of Class 3 PDs	23
Max. Number of Class 4 PDs	11
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3x flow control and back pressure
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
