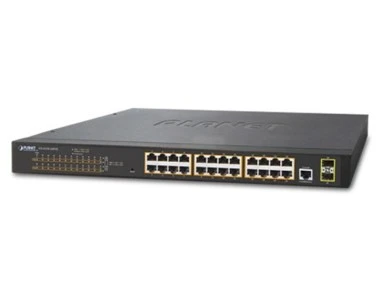

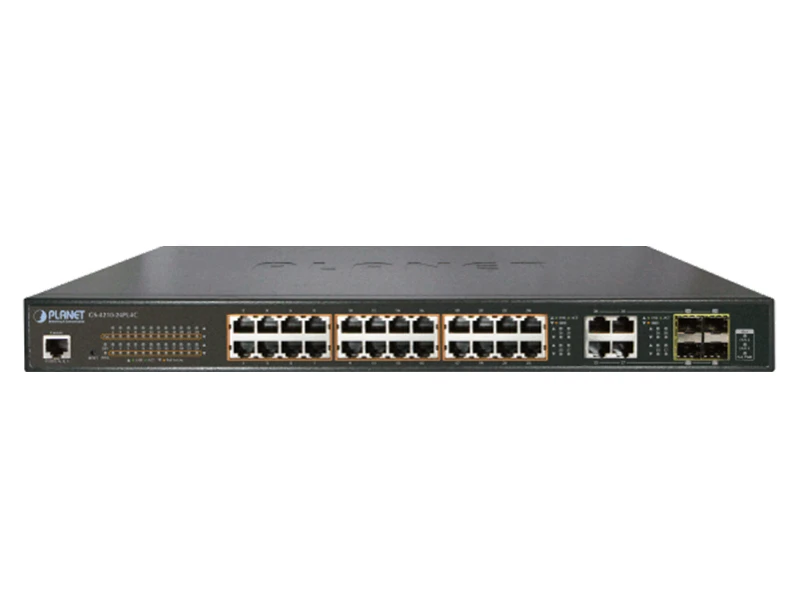

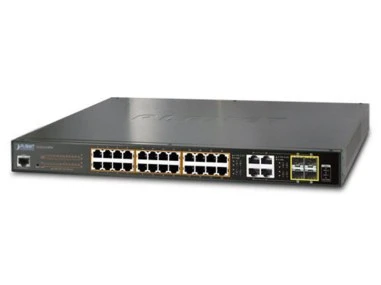

Planet PL GS 4210 24P4C 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware Specifications |
| Copper Ports |
| 28 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots |
| 4 x 100/1000BASE-X SFP interface shared with port-25 to port-28 |
| Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port |
| 24 ports with 802.3at / af PoE injector function with port-1 to port-24 |
| Console |
| 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture |
| Store-and-Forward |
| Switch Fabric |
| 56Gbps / non-blocking |
| Switch Throughput @ 64Bytes |
| 41.67Mpps |
| Address Table |
| 8K entries |
| Shared Data Buffer |
| 4.1 megabits |
| Flow Control |
| IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex |
| Jumbo Frame |
| 10K bytes |
| Reset Button |
| < 5 sec: System reboot |
| > 5 sec: Factory default |
| LED |
| PWR, SYS, LNK/ACT, PoE-in-Use, 1000, FAN 1 Alert, FAN 2 Alert, PoE PWR Alert |
| Power Requirements |
| 100~240V AC, 50/60Hz, auto-sensing |
| Dimensions (W x D x H) |
| 440 x 300 x 44.5 mm, 1U height |
| ESD Protection |
| Contact Discharge 4KV DC |
| Air Discharge 8KV DC |
| Enclosure |
| Metal |
| Weight |
| 4214g |
| Power Consumption / Dissipation |
| 275 watts (max.) / 938.3 BTU |
| Fan |
| 2 x smart fan |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3af / 802.3at PoE+ PSE |
| PoE Power Supply Type |
| End-span |
| PoE Power Output |
| Per port 52V DC, 30.8 watts (max.) |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| PoE Power Budget |
| 220 watts (max.) @ 25 degrees C |
| 190 watts (max.) @ 50 degrees C |
| PoE Ability PD @ 9 watts |
| 24 units |
| PoE Ability PD @ 15.4 watts |
| 14 units |
| PoE Ability PD @ 30 watts |
| 7 units |
| Layer 2 Functions |
| Port Mirroring |
| TX / RX / both |
| Many-to-1 monitor |
| VLAN |
| 802.1Q tagged-based VLAN |
| Up to 256 VLAN groups, out of 4094 VLAN IDs |
| 802.1ad Q-in-Q tunneling |
| Voice VLAN |
| Protocol VLAN |
| Private VLAN (Protected port) |
| GVRP |
| Link Aggregation |
| IEEE 802.3ad LACP and static trunk |
| Supports 8 groups of 8-port trunk |
| Spanning Tree Protocol |
| STP, IEEE 802.1D Spanning Tree Protocol |
| RSTP, IEEE 802.1w Rapid Spanning Tree Protocol |
| MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping |
| IGMP (v2/v3) snooping |
| IGMP querier |
| Up to 256 multicast groups |
| MLD Snooping |
| MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List |
| IPv4/IPv6 IP-based ACL / MAC-based ACL |
| QoS |
| 8 mapping ID to 8 level priority queues |
| - Port number |
| - 802.1p priority |
| - 802.1Q VLAN tag |
| - DSCP field in IP packet |
| Traffic classification based, strict priority and WRR |
| Security |
| IEEE 802.1X port-based authentication |
| Built-in RADIUS client to co-operate with RADIUS server |
| RADIUS / TACACS+ user access authentication |
| IP-MAC port binding |
| MAC filtering |
| Static MAC address |
| DHCP Snooping and DHCP Option82 |
| STP BPDU guard, BPDU filtering and BPDU forwarding |
| DoS attack prevention |
| ARP inspection |
| IP source guard |
| Management Functions |
| Basic Management Interfaces |
| Web browser / Telnet / SNMP v1, v2c |
| Firmware upgrade by HTTP / TFTP protocol through Ethernet network |
| Remote / Local Syslog |
| System log |
| LLDP protocol |
| SNTP |
| Secure Management Interfaces |
| SSH, SSL, SNMP v3 |
| SNMP MIBs |
| RFC 1213 MIB-II |
| RFC 1215 Generic Traps |
| RFC 1493 Bridge MIB |
| RFC 2674 Bridge MIB Extensions |
| RFC 2737 Entity MIB (Version 2) |
| RFC 2819 RMON (1, 2, 3, 9) |
| RFC 2863 Interface Group MIB |
| RFC 3635 Ethernet-like MIB |
Planet PL GS 4210 24P4C 10/100/1000 PoE Switch Pdf Dosyası2.16 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
