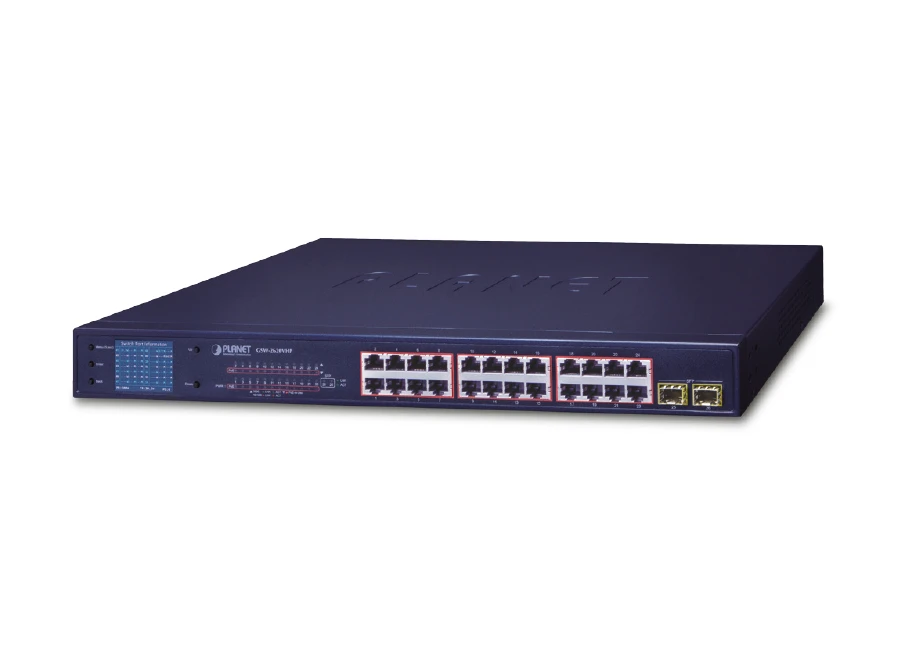

Planet PL GSW 2620VHP PoE Switch

Özellikler

24-Port 10/100/1000Base-T IEEE 802.3at/af PoE injector
Per port 30.8 watt
PoE Power Budget 300 Watt
2-Port 1000X SFP yuva
19-inch desktop size, 1U height, rack mountable
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
LCD monitor for system status and PoE usage status display
2 silent fan to provide stable and efficient power performance

Teknik Özellikler

Hardware Specifications
10/100/1000BASE-T MDI/MDIX Ports	24
1000BASE-X SFP Interfaces	2
PoE Injector Port	24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
Switch Architecture	Store-and-Forward
Switch Fabric	52Gbps/non-blocking
Switch Throughput@64 bytes	38.7Mpps@64Bytes
MAC Address Table	8K entries, automatic source address learning and aging
Maximum Frame Size	9K bytes
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
LED	System:
	Power (Green)
	10/100/1000BASE-T RJ45 Interfaces:
	10/100Mbps LNK/ACT (Orange)
	1000Mbps LNK/ACT (Green)
	1000BASE-X SFP Interfaces:
	1000Mbps LNK/ACT (Green)
	PoE Interfaces:
	PoE-in-Use (Orange)
LCD Monitor	■ PoE loading of each port
	■ Total PoE power usage
	■ Total PoE budget
	■ System status, such as overload, low voltage, over voltage and high temperature
DIP Switch	Selectable operation mode
	■ Standard
	■ VLAN
	■ Extend + VLAN
Dimensions (W x D x H)	233 x 440 x 44 mm (1U height)
Enclosure	Metal
Weight	3.4kg
Power Requirements	AC 100~240V, 50/60Hz, 5A max.
Power Consumption/Dissipation	Max. 330 watts/1132 BTU
Thermal Fan	2
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 52V DC, 600mA. max. 30 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	300 watts
Max. Number of Class 2 PDs	24
Max. Number of Class 3 PDs	23
Max. Number of Class 4 PDs	11
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3x flow control and back pressure
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
