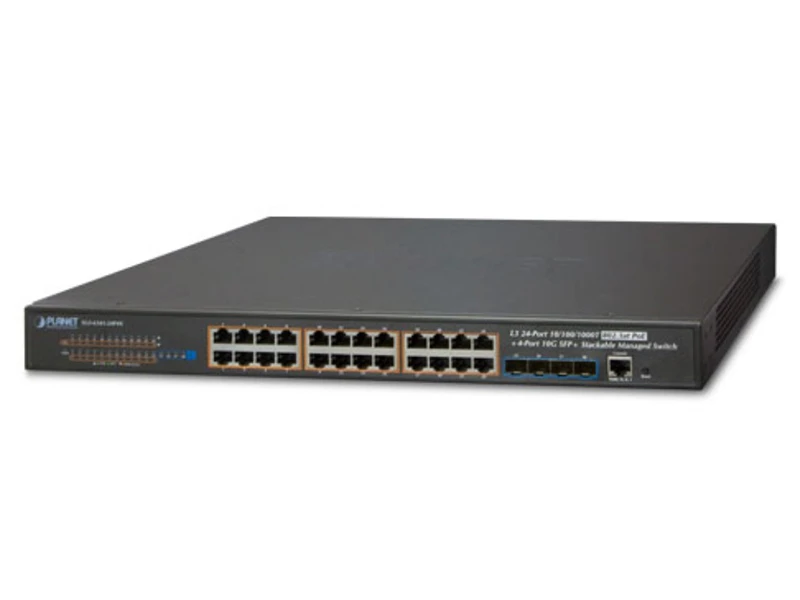

1000 PoE Switch

Özellikler

Physical Ports

24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 24-port IEEE 802.3at/af PoE injector
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
RJ45 to DB9 console interface for switch basic management and setup

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 24 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PoE schedule
IP Stacking
Connects with stack member via both Gigabit TP and SFP interfaces
Single IP address management, supporting up to 24 units stacked together

IP Routing Features

IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+
Routing interface provides per VLAN routing mode
VRRPv1/v3 protocol for redundant routing deployment
Supports route redistribution

Multicast Routing Features

Supports PIM-DM (Protocol Independent Multicast – Dense Mode) and PIM-SM (Protocol Independent Multicast – Sparse Mode) and PIM-SSM (Protocol Independent Multicast – Source Specific Multicast)
Supports DVMRP (Distance Vector Multicast Routing Protocol)
Supports IGMP v1/v2/v3 and MLD v1/v2

Layer 2 Features

Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
Auto-MDI/MDI-X detection on each RJ45 port
Prevents packet loss flow control
IEEE 802.3x pause frame flow control in full-duplex mode
Back-pressure flow control in half-duplex mode
High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
16K MAC address table, automatic source address learning and aging
Supports VLAN
IEEE 802.1Q tag-based VLAN
GVRP for dynamic VLAN management
Up to 256 VLANs groups, out of 4041 VLAN IDs
Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
Private VLAN Edge (PVE) supported
GVRP protocol for Management VLAN
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Supports Link Aggregation
Maximum 12 trunk groups, up to 8 ports per trunk group
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
Cisco ether-channel (static trunk)
Supports Spanning Tree Protocol
STP, IEEE 802.1D (Classic Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
Supports BPDU & root guard
Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
Provides port mirror (many-to-1)

Quality of Service

8 priority queues on all switch ports
Support for strict priority and WRR (Weighted Round Robin) CoS policies
Traffic classification
IEEE 802.1p CoS/ToS
IPv4/IPv6 DSCP
Port-based WRR
Strict priority and WRR CoS policies

Multicast

Supports IPv4 IGMP snooping v1, v2 and v3; IPv6 MLD v1 and v2 snooping
Querier mode support
Supports Multicast VLAN Register (MVR)

Security

IEEE 802.1x port-based network access authentication
MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
TACACS+ login users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Supports DHCP snooping
Supports ARP inspection
IP Source Guard prevents IP spoofing attacks
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Management

Management IP for IPv4 and IPv6
Switch Management Interface
Console/Telnet Command Line Interface
Web switch management
SNMP v1, v2c, and v3 switch management
SSH/SSL secure access
BOOTP and DHCP for IP address assignment
Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
SNTP (Simple Network Time Protocol) for IPv4 and IPv6
User privilege levels control
Syslog server for IPv4 and IPv6
Supports DDM
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
Supports sFlow
Supports ULDP
Supports ULPP (Uplink Protection Protocol)
Supports ULSM (Uplink State Monitor protocol)
Supports LLDP/LLDP MED
Supports DHCP Option82, Option37/38
Supports ping, trace route function for IPv4 and IPv6

Teknik Özellikler

Hardware Specifications
Hardware Version	2
Copper Ports	24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	4 100/1000BASE-X SFP combo interfaces with Port-21 to Port-24
SFP/mini-GBIC Slots	Supports 100/1000Mbps dual mode and DDM
SFP+ Slots	4 10GBASE-SR/LR SFP+ interface (port-25 to port-28)
SFP+ Slots	Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-forward
Switch Fabric	128Gbps/non-blocking
Switch Throughput	95.23Mpps
Address Table	16K MAC address table with auto learning function
Shared Data Buffer	1.5MB
Flow Control	Back pressure for half -duplex
Flow Control	IEEE 802.3x pause frame for full -duplex
Jumbo Frame	10KB
LED	System:
	PWR/MGMT/SYS/PoE
	Ports:
	10/100/1000T RJ45 Port: LNK/ACT and PoE-in-Use
	1/10G SFP+ slot: LNK/ACT
Dimensions (W x D x H)	440 x 320 x 43.6 mm, 1U height
Weight	4503g
Power Consumption	15.4 watts/52.51 BTU (System)
Power Consumption	401.7 watts/ 1369.8 BTU (System+PoE)
Power Requirements	AC 100~240V, 50/60Hz
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 53V DC, 30.8 watts (max.)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	370 watts (max.)
PoE Ability PD @ 9 watts	24 units
PoE Ability PD @ 15 watts	24 units
PoE Ability PD @ 30 watts	12 units
Management Function
System Configuration	Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3
Management	Supports both IPv4 and IPv6 addressing
	Supports the user IP security inspection for IPv4/IPv6 SNMP
	Supports MIB and TRAP
	Supports IPv4/IPv6 FTP/TFTP
	Supports IPv4/IPv6 NTP
	Supports RMON 1, 2, 3, 9 four groups
	Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
	Supports IPv4/IPv6 SSH
	The right configuration for users to adopt RADIUS server’s shell management
	Supports CLI, console, Telnet
	Supports SNMP v1, v2c and v3
	Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
	Supports Syslog server for IPv4 and IPv6
	Supports TACACS+
Layer 3 Function
Routing Protocol	Static routing, RIP, OSPF, BGP and PBR
Routing Table	Total 1K entries (IPv4/IPv6 shared)
Layer 2 Function
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow control disable/enable
	Bandwidth control on each port
	Port loopback detect
Port Status	Display each port’s speed duplex mode, link status, flow control status and
Port Status	auto negotiation status
VLAN	802.1Q tagged based VLAN, up to 256 VLAN groups
	802.1ad Q-in-Q (VLAN stacking)
	GVRP for VLAN management
	Private VLAN Edge (PVE) supported
	Protocol-based VLAN
	MAC-based VLAN
	IP subnet VLAN
Bandwidth Control	TX/RX/Both
Link Aggregation	IEEE 802.3ad LACP/static trunk
Link Aggregation	Supports 12 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports
	Supports strict priority and Weighted Round Robin (WRR) CoS policies
	Traffic classification:
	- IEEE 802.1p CoS/ToS
	- IPv4/IPv6 DSCP
	- Port-based WRR
Multicast	IGMP v1/v2/v3 snooping
	Querier mode support
	MLD v1/v2 snooping
	Multicast VLAN Register (MVR)
Access Control List	Supports Standard and Expanded ACL
	IP-based ACL/MAC-based ACL
	Time-based ACL
	Up to 512 entries
Bandwidth Control	At least 64Kbps step
Security	Supports MAC + port binding
	IPv4/IPv6 + MAC + port binding
	IPv4/IPv6 + port binding
	Supports MAC filter
	ARP scanning prevention
Authentication	IEEE 802.1x port-based network access control
Authentication	AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
SNMP MIBs	RFC 1213 MIB-II
	RFC 1215 Internet Engineering Task Force
	RFC 1271 RMON
	RFC 1354 IP-Forwarding MIB
	RFC 1493 Bridge MIB
	RFC 1643 Ether-like MIB
	RFC 1907 SNMP v2
	RFC 2011 IP/ICMP MIB
	RFC 2012 TCP MIB
	RFC 2013 UDP MIB
	RFC 2096 IP forward MIB
	RFC 2233 if MIB
	RFC 2452 TCP6 MIB
	RFC 2454 UDP6 MIB
	RFC 2465 IPv6 MIB
	RFC 2466 ICMP6 MIB
	RFC 2573 SNMP v3 notify
	RFC 2574 SNMP v3 vacm
	RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
	RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3z Gigabit 1000BASE-SX/LX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3ae 10Gb/s Ethernet
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1X port authentication network control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet PLUS
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 3376 IGMP v3
	RFC 2710 MLD v1
	FRC 3810 MLD v2
	RFC 2328 OSPF v2
	RFC 1058 RIP v1
	RFC 2453 RIP v2
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 90% (non-condensing)
