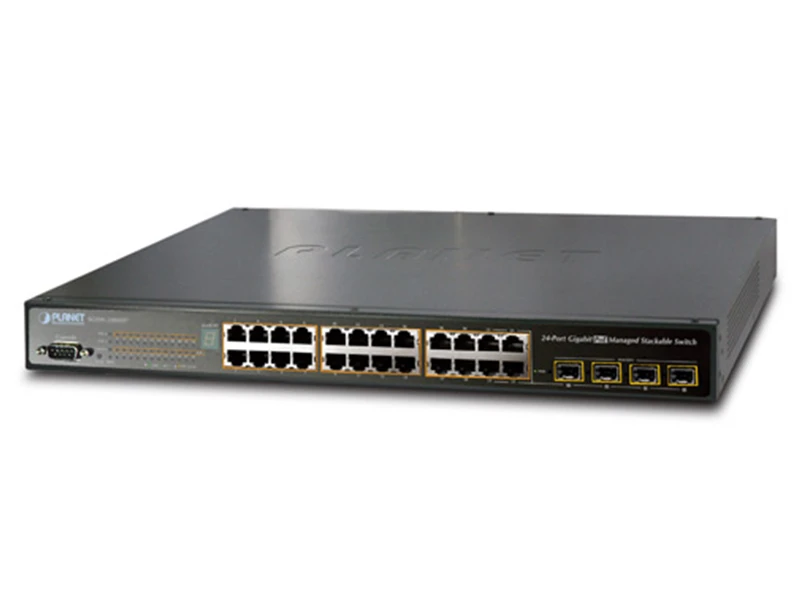

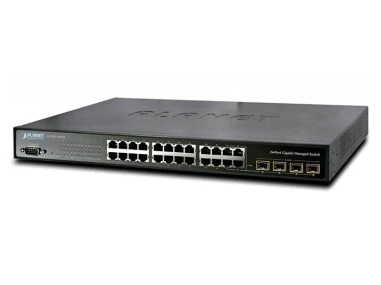

Planet SGSW 24040P Gigabit PoE Switch

Özellikler

Physical Port

24-Port 10/100/1000Base-T Gigabit RJ-45 with IEEE 802.3af PoE Injector
4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-21 to Port-24
2 HDMI-like 5GbE Stacking interfaces
RS-232 DB9 console interface for Switch basic management and setup

Power over Ethernet

Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 24 IEEE 802.3af devices powered
Supports PoE Power up to 15.4 watts for each PoE ports
Auto detect powered device (PD)
Circuit protection prevent power interference between ports
Remote power feeding up to 100m
PoE Management
Total PoE power budget control
Pert port PoE function enable/disable
PoE Port Power feeding priority
Per PoE port power limit
Per port PoE power schedule
PD classification detection
Over Temperature Protection
PoE Temperature Threshold
PoE power Usage Threshold
PoE events alarm by SNMP Trap, e-Mail and Syslog

Stacking

Hardware stack up to 16 units and 384 Gigabit ports
Single IP address stack management
Stacking architecture supports Chain and Ring mode
Plug and Play connectivity
Mirror across stack
Link Aggregation groups spanning multiple switches in a stack
Hardware learning with MAC table synchronization across stack

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, broadcast storm control and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
IEEE 802.1Q Tagged VLAN
Up to 255 VLANs groups, out of 4041 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Supports Spanning Tree Protocol
STP, IEEE 802.1D (Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (Static Trunk)
Maximum 12 trunk groups, up to 16 ports per trunk group
Up to 32Gbps bandwidth (Duplex Mode)
Provide port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
4 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
TOS / DSCP / IP Precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
QoS Control List Wizard makes QoS creation and configuration easier and more quickly
DSCP remarking
Voice VLAN

Multicast

Supports IGMP Snooping v1, v2 and v3
Querier mode support
IGMP Snooping port filtering and throttling
Multicast VLAN Registration (MVR)

Security

IEEE 802.1x Port-Based / MAC-Based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
TACACS+ login users access authentication
RADIUS / TACACS+ users access authentication
IP-Based Access Control List (ACL)
MAC-Based Access Control List
Source MAC / IP address binding
DHCP Snooping to filter un-trusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management

Switch Management Interfaces
Console / Telnet Command Line Interface
Web switch management
SNMP v1, v2c, and v3 switch management
SSH / SSL secure access
Four RMON groups (history, statistics, alarms, and events)
IPv6 IP Address / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP / TFTP
DHCP Relay and Relay Option 82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) Protocol
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deploy management
ICMPv6

Teknik Özellikler

Hardware Specification
Copper Ports	24 10/100/1000Base-T RJ-45 auto-MDI/MDI-X ports with IEEE 802.3af PoE injector
SFP/mini-GBIC Slots	4 1000Base-SX/LX/BX SFP interfaces, shared with Port-21 to Port-24
SFP/mini-GBIC Slots	100Base-FX SFP transceiver compatible
Console	1 x RS-232 DB9 serial port (115200, 8, N, 1)
Switch Processing Scheme	Store-and-Forward
Switch Fabric	68Gbps
Address Table	8K entries
Share data Buffer	1392 kilobytes
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	10Kbytes
LED	System:
	Power, Master, FAN Alert, PoE Power Alert
	Ports:
	10/100/1000 Link/Act, PoE In-Use, SFP Link, Stack Port Link
Reset Button	< 5 sec: System reboot
	> 5 sec: Factory Default
Dimension (W x D x H)	440 x 300 x 44.5 mm, 1U height
Weight	4.5 KG
Power Consumption	SGSW-24040P: Max. 290 Watts / 989 BTU
Power Consumption	SGSW-24040P4: Max. 430 Watts / 1467 BTU
Power Requirement	AC 100~240V, 50/60Hz
ESD Protection	6KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply	End-Span
PoE Power Output	Per Port 48V DC, 350mA . Max. 15.4 Watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	SGSW-24040P: 220 Watts
PoE Power Budget	SGSW-24040P4: 380 Watts
PoE Ability	Number of PD@7Watts
	SGSW-24040P: 24
	SGSW-24040P4: 24
	Number of
	SGSW-24040P: 14
	SGSW-24040P4: 24
Stacking
Stacking Ports	Two 5Gbps HDMI-Like interface
Stacking Numbers	16
Stacking Bandwidth	10Gbps (full-duplex)
Stack ID Display	7-Segment LED Display (1~9, A~F,0)
Stack Topology	Ring / Chain / Back-to-Back stack
Layer 2 Function
Basic Management Interfaces	Console, Telnet, Web Browser, SNMPv1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
Port Configuration	Port disable/enable.
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
	Bandwidth control on each port
VLAN	802.1Q Tagged based VLAN
	Port-based VLAN
	Q-in-Q
	Private VLAN Edge (PVE)
	Up to 256 VLAN groups, out of 4094 VLAN IDs
Spanning Tree Protocol	IEEE 802.1D Spanning Tree
	IEEE 802.1w Rapid Spanning Tree
	IEEE 802.1s Multiple Spanning Tree
	Up to 8 MST instances
Link Aggregation	IEEE 802.3ad LACP / Static Trunk
Link Aggregation	Support 12 groups of 16-Port trunk support
QoS	Traffic classification based, strict priority and WRR
	4-level priority for switching
	- Port Number
	- 802.1p priority
	- 802.1Q VLAN tag
	DSCP / TOS field in IP Packet Policy-based QoS
IGMP Snooping	IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Snooping	IGMP Querier mode support
Access Control List	IP-based ACL / MAC-based ACL
Access Control List	Up to 256 entries
SNMP MIBs	RFC-1213 MIB-II
	IF-MIB
	RFC-1493 Bridge MIB
	RFC-1643 Ethernet MIB
	RFC-2863 Interface MIB
	RFC-2665 Ether-Like MIB
	RFC-2737 Entity MIB
	RFC-2618 RADIUS Client MIB
	RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
	RFC-2933 IGMP-STD-MIB
	RFC3411 SNMP-Frameworks-MIB
	IEEE802.1X PAE
	LLDP
	MAU-MIB
	Power over Ethernet
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Safety	UL, cUL
Standards Compliance	IEEE 802.3 10Base-T
	IEEE 802.3u 100Base-TX/100Base-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3x Flow Control and Back pressure
	IEEE 802.3ad Port trunk with LACP
	IEEE 802.1d Spanning tree protocol
	IEEE 802.1w Rapid spanning tree protocol
	IEEE 802.1s Multiple spanning tree protocol
	IEEE 802.1p Class of service
	IEEE 802.1Q VLAN Tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP version 1
	RFC 2236 IGMP version 2
	IEEE 802.3af Power over Ethernet
Environment
Operating	Temperature:　0 ~ 50 degrees C
Operating	Relative Humidity:　20 ~ 95% (non-condensing)
Storage	Temperature:　-40 ~ 70 degrees C
Storage	Relative Humidity:　20 ~ 95% (non-condensing)
Ordering Information
SGSW-24040P4	24-Port Gigabit PoE Managed Stackable Switch / 380W
SGSW-24040P	24-Port Gigabit PoE Managed Stackable Switch / 220W
