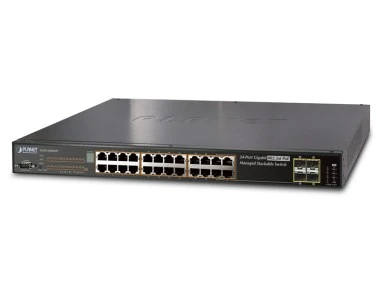

Planet WGSW 2620HP 10/100 Gigabit PoE Switch
Teknik Özellikler
Donanım Özellikleri | |
10/100Mbps Bakır Portlar | 24 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports |
1000Mbps Bakır Portlar | 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slot | 2 1000Base-SX/LX/BX, shared with Port-25 and Port-26 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 8.8Gbps / non-blocking |
Switch Throughput | 6.547Mpps @64Bytes |
Adres Tablosu | 8K entries |
Data Aktarım Hızı | 512Kbytes |
Flash | 4MB |
DRAM | 32MB |
Maximum Frame Size | 9K Bytes |
Akış Kontrolü | Back pressure for Half-Duplex |
IEEE 802.3x Pause Frame for Full-Duplex | |
LED | Power, PoE Power, FAN Alert |
Link / Activity (Green) | |
PoE In-Use (Amber) | |
1000 LNK / ACT (Green) | |
10/100 LNK / ACT (Green) | |
Ölçüler ( W x D x H) | 440 x 300 x 44.5 mm, 1U height |
Ağırlık | 4.6kg |
Güç Gereksinimi | 100 - 240VAC, 50 - 60Hz, Auto-sensing |
Güç Tüketimi | System |
‧110V: 29 Watts / 98BTU | |
‧220V: 31 Watts / 105BTU | |
Ethernet Full Loading | |
‧110V: 34 Watts / 116BTU | |
‧220V: 35 Watts / 119BTU | |
PoE Full Loading | |
‧110V: 360 Watts / 1228BTU | |
‧220V: 360 Watts / 1228BTU | |
Reset Button | < 5 sec: System reboot |
> 10 sec: Factory Default | |
Power over Ethernet | |
PoE Standart | IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
PoE Power Output | Per Port 52V DC, 350mA . Max.15.4 Watts (IEEE 802.3af) |
Per Port 52V DC, 590mA. Max. 30 Watts (IEEE 802.3at) | |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 360 Watts (Port 1 to port 12: 180 Watts, port 13 to port 24: 180 Watts) |
Max. number of Class 1 PD | 24 |
Max. number of Class 2 PD | 24 |
Max. number of Class 3 PD | 24 |
Max. number of Class 0, 4 PD | 11 |
Layer 2 Fonksiyonu | |
Yönetim Arayüzü | Console, Telnet, Web Browser, SSL, SNMPv1, v2c, v3 |
Port Konfigürasyonu | Port disable / enable |
Auto-Negotiation | |
10/100/1000Mbps full and half duplex mode selection | |
Flow Control disable / enable | |
Port Durumu | Display each port’s speed duplex mode, link status and Flow control status |
Auto negotiation status, trunk status | |
Port Mirroring | TX / RX / Both |
1 to 1 monitor | |
Bant Genişliği | Ingress / Egress Rate Control |
‧ Allow to configure per 128Kbps | |
VLAN | IEEE 802.1Q Tag-Based VLAN, up to 255 VLANs groups, out of 4041 VLAN IDs |
Port-Based VLAN | |
Q-in-Q tunneling | |
GVRP for VLAN Management, up to 128 dynamic VLAN entries | |
Private VLAN Edge (PVE / Protected port) with two protected port groups | |
Link Aggregation | Static Port Trunk |
IEEE 802.3ad LACP (Link Aggregation Control Protocol) | |
Supports 13 groups of 8-Port trunk support | |
QoS | 4 priority queue |
Traffic classification based on: | |
‧ Port priority | |
‧ 802.1p priority | |
‧ DSCP/TOS field in IP Packet | |
IGMP Snooping | IGMP (v1/v2) Snooping, up to 256 multicast Groups |
Erişim Kontrol Listesi | IP-Based Layer 3 / Layer 4 ACL |
Up to 200 ACL rule entries | |
SNMP MIBs | RFC-1213 MIB-II |
RFC-2863 Interface MIB | |
RFC-2665 EtherLike MIB | |
RFC-1493 Bridge MIB | |
RFC-2819 RMON MIB (Group 1, 2, 3,9) | |
RFC-2737 Entity MIB | |
POWER-ETHERNET-MIB | |
Stanadrt Uygunluğu | |
Standart Uygunluğu | IEEE 802.3:10Base-T |
IEEE 802.3u:100Base-TX | |
IEEE 802.3z:1000Base-SX/LX | |
IEEE 802.3ab:1000Base-T | |
IEEE 802.3x:Flow Control and Back pressure | |
IEEE 802.3ad:Port trunk with LACP | |
IEEE 802.1D:Spanning Tree Protocol | |
IEEE 802.1s:Multiple Spanning Tree Protocol | |
IEEE 802.1p:Class of Service | |
IEEE 802.1Q:VLAN Tagging | |
IEEE 802.1x:Port Authentication Network Control | |
IEEE 802.3af:Power over Ethernet | |
IEEE 802.3at:Power over Ethernet | |
RFC 768:UDP | |
RFC 793:TFTP | |
RFC 791:IP | |
RFC 792:ICMP | |
RFC 2068:HTTP | |
RFC 1112:IGMP version 1 | |
RFC 2236:IGMP version 2 | |
Çevresel Özellikler | |
Çalışma Sıcaklığı | 0 ~ 50 Degree C |
Çalışma Nem Oranı | 10 ~ 95% (non-condensing) |
Saklama Sıcaklığı | -20 ~ 70 Degree C |
Saklama Nem Oranı | 10 ~ 95% (non-condensing) |
Planet WGSW 2620HP 10100 Gigabit PoE Switch Pdf Dosyası886.34 KB
Teknik Kısa
PoE : Hibrid
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı : 24 Port
Çalışma Mesafesi : 100Mt.
