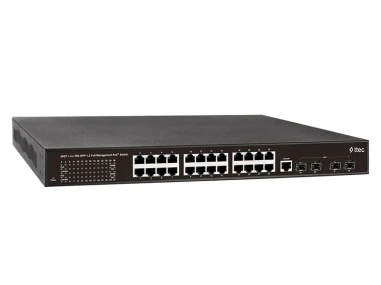

Ttec PSG24 2RF PoE Switch

Özellikler

24-Port GE RJ-45 (PoE), 2 port SFP
500W akım paylaşım özelliği
IEEE 802.3af/at standartlarına uygun
Layer 2+ Tamamen Yönetilebilir
4K VLAN, 8 kuyruk QoS, Gelişmiş VLAN’lar
MSTP, LACP, LLDP, sFlow,
802.1X, RADIUS, TACAS+, ACL
IPv6, IPv4/v6 Multicast Filtering
19” Rack Tipi Metal Kasa
Dahili Güç Kaynağı

Teknik Özellikler

Standartlar	Ethernet: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az EEEPoE: IEEE 802.3at PoE+
Standartlar	Protocol: IEEE 802.3x – Flow Control, IEEE 802.1Q – VLAN, IEEE 802.1p – Class of Service, IEEE 802.1D – Spanning Tree, IEEE 802.1w – Rapid Spanning Tree, IEEE 802.1s – Multiple Spanning Tree, IEEE 802.3ad – Link Aggregation Control Protocol (LACP), IEEE802.1v – Protocol VLAN, IEEE 802.1AB – LLDP (Link Layer Discovery Protocol), IEEE 802.1X – Access Control
Özellikler	Port Sayısı: 24 adet GE-RJ 45 (PoE)SFP Port Sayısı: 2 adet SFP
	MAC Adresi: 8K
	Tampon Paket: 4Mb
	Jumbo Paketler: 9K
Performans	Anahtarlama Kapasitesi : 52 Gbpsİletim Oranı : 38,7 Mpps
PoE Özellikleri	802.3af/at CompliantMax. Power Output Per Port: 30W
	Power Consumption : 500W Current Sharing
	PoE Management:
	Enable/Disable per-port
	Priority Setting per-port
	Maximum Power per-port/system
	PoE Mode Setting per-port
	PD Classification, PoE Status
L2 Özellikleri	Flow Control: 802.3x (Full-duplex)ort/ Back-Pressure (Half-duplex)Spanning Tree:
	IEEE 802.1D-2004(Includes IEEE 802.1w): Rapid Spanning Tree Protocol
	802.1s Multiple Spanning Tree Protocol
	Loop Detection
	VLAN:
	IEEE 802.1Q Tagged Based, Max. VLAN Group: 4K
	QinQ
	Port-based VLAN
	Voice VLAN
	Private VLAN
	MVR
	MAC-Based VLAN
	Protocol-Based VAN
	Link Aggregation:
	Static Trunk & IEEE 802.3ad with LACP
	Max. Group: 13
	Max. Ports/Group: 16
	IGMP Snooping:
	IGMP Snooping v1/v2/v3
	IPv6 MLD Snooping v1/v2
	Querier support/ IGMP Filtering, IGMP Leave Proxy, Immediate Leave
	Storm Control: Broadcast/ Multi-cast/ Un-known Unicast
	Jumbo Frame Support: 9K
QoS	Number of Priority queue: 8 queues/ portScheduling for priority queue : WRR/Strict Priority scheduling/Hybrid
	CoS :
	802.1p/ IP Precedence/ IP TOS Precedence
	IP DSCP/ Port based Priority
	Rate Limiting: Ingress/Egress: 1Kbps/ 1pps granularity
	DiffServ (RFC2474) remarking
Güvenlik	User Name / Password ProtectionUser Privilege: up to 15 levels
	IEEE 802.1x: Port-based Access Control
	IP Source Guard
	MAC Based Authentication
	Web-based Authentication
	HTTPS
	SSHv2
	RADIUS: Authentication/ Accounting
	TACACS+: Authentication
	ACL (Access control list)
Yönetim	Command Line Interface (CLI)Web Based Management
	Telnet
	Access Management Filtering: SNMP/WEB/SSH/TELNET
	SNMP: v1/v2c/v3
	RMON: RMON (1,2,3, & 9 groups)
	DHCP: Client/ Relay/ Option82/ Snooping
	Event/Error Log
	Software Download/ Upgrade: HTTP
	Configuration Download / Upload
	sFlow
	Port Mirroring: One to One/ Many to One
	Remote Ping
	NTP/LLDP
	UPnP
	EEE Configuration
	Cable Diagnostics
	IPv6 Configuration
Güç Girişi	100~240VAC
Güç Tüketimi	PoE: max. 500WSystem: max. 21.5W
Mekanik Özellikler	Boyutlar(YGD) : 45440330mmAğırlık : 4.7 kg
Çalışma Sıcaklığı	0~40℃
Nem	5~90% (yoğuşmasız)
Sertifikalar	CE, FCC Class A
