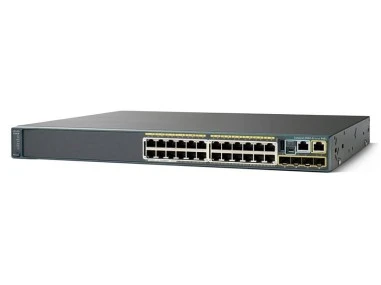

Uniview NSW2000 24T2GC POE Switch
Özellikler
Teknik Özellikler
Ports | 24×10/100Base-TX autosensing Ethernet ports(all support PoE) |
2×Gigabit combo ports (RJ45 and SFP) | |
Port attribute | 10/100/1000Mbit/s transfer rate |
Half-duplex, full-duplex and auto-negotiation | |
Auto MDI/MDIX | |
Standards | IEEE 802.3u 100BASE-TX |
IEEE 802.3ab 1000BASE-T | |
IEEE 802.3z 1000BASE-X | |
ANSI/IEEE 802.3 NWay | |
IEEE 802.3x flow control | |
IEEE 802.3af and IEEE 802.3at PoE | |
PoE | |
MAC | 4K |
Packet forwarding rate | 6.55Mpps |
Switching capacity | 8.8Gbps |
Jumbo frames | Support |
EXTEND mode | Disabled: all ports can communicate with each other, and monitoring optimization is disabled. |
Enabled: downlink ports can only communicate with uplink ports; monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters. | |
Status LEDs | Link/Act (steady green): link is normal |
Link/Act (flashing green): data is being forwarded | |
Link/Act (off): no link | |
PoE (steady orange): the port is powering a powered device properly | |
PoE (off): the port is not connected to any powered device or is not supplying power | |
Power (steady green): AC input is normal | |
Power (off): AC input is abnormal | |
PoE | 802.3at/af |
Max PoE capacity: 400 W | |
Consumption | ≤ 450 W |
AC voltage | 100-240 V |
Operating temperature | °C-40°C (32°F-104°F) |
Operating humidity | 10%-85% |
Storage temperature | -10°C-70°C (14°F-158°F) |
Storage humidity | 10%-90% |
Dimensions (W×D×H) | 440mm×280mm×44mm (17.3"×11"×1.7") |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı : 24 Port
Çalışma Mesafesi : 250 Mt.
PoE Güç Bütçesi : 400-800 Watt
