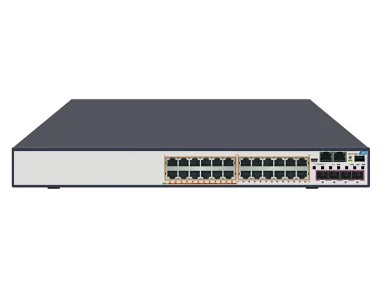

ZTE 5950 28PD L 10/100/1000 PoE Switch
Teknik Özellikler
| Dimensions (H*W*D) |
| 43.6mm*442mm*440mm |
| Fixed Interface |
| 24 GE RJ45 (POE/POE+) + 4 10GE SFP+ |
| Weight |
| 8.0kg |
| Management Port |
| 1 GE MNG, 1 RJ45 Console, 1 Mini USB Console |
| AC Power Supply |
| Rated voltages: 100V~240V,50Hz~60Hz |
| Maximum voltages: 90V~286V,45Hz~66Hz |
| DC Power Supply |
| -38V ~ -57V |
| HVDC Power Supply |
| 240V/336V |
| Maximum Power Consumption |
| 820W (POE:720W) |
| Typical Power Consumption |
| 65W |
| Power Redundancy Pattern |
| Two independent and swappable power supply module, support AC 1+1, DC 1+1 |
| Heat Dissipation Pattern |
| Fan cooling, support multilevel speed regulation |
| Heat Dissipation |
| 182 BTU/h |
| Working Temperature |
| Long term working temperature: -10 ℃ ~ +50 ℃ |
| Short term working Temperature: -10 ℃ ~ +55 ℃ |
| Humidity |
| 5%~95% |
| Working Altitude |
| 2000 meters |
| MTBF/MTTR |
| 400000 hours/ 30 minutes |
| Switching Capacity |
| 128Gbps |
| Packet Forwarding Rate |
| 96Mpps |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 4
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 400-800 Watt
Aktarım Türü : Gbit Fiber
