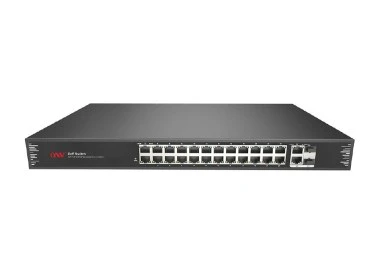

ONV ONV-H2024PL PoE Switch

Özellikler

Unmanaged PoE switch with 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports.
Port1-24 support 24V non-standard POE power supply, Port 17-24 can support 10M/250 meters transmission.
Built-in 250W power supply.

Teknik Özellikler

Model	ONV-H2016PL	ONV-H2024PL
Interface Characteristics
Fixed Port	16*10/100Base-TX PoE ports (Data/Power)	24*10/100Base-TX PoE ports (Data/Power)
	2*10/100/1000Base-T RJ45 Ports (Data)	2*10/100/1000Base-T RJ45 Ports (Data)
Ethernet Port	10/100Base-T(X) or 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Functional Switch (EXTEND)	Port 9-16 can support 10M/250m transmission when turned on	Port 17-24 can support 10M/250m transmission when turned on
	Note: When the switch status changes, the PoE switch must be restarted for the functional switch function to take effect.
Twisted Pair Transmission	10BASE-TX : Cat5 or later UTP(≤250 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T :Cat5e or later UTP(≤100 meter)
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	14.8Gbps (Non-blocking)
Forwarding Rate@64byte	5.36Mpps	6.55Mpps
MAC	16K
Buffer Memory	4M
Jumbo Frame	10K
LED Indicator	Power: PWR (Green), Network: (Green)
PoE & Power Supply
PoE Port	Port 1-16 support 24V POE	Port 1-24 support 24V POE
Power Supply Pin	Default 4/5 (+), 7/8 (-)
Single-port Max/AVG Power	24W/15W
Total PWR / Input Voltage	250W /(AC100-240V)
Power Consumption	Standby<15W, Full Load<250W	Standby<20W, Full Load<250W
Power Supply	Built-in power supply, AC 100~240V 50-60Hz 4.1A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	27018144.5mm	33020444mm
Net /Gross Weight	<1.7kg / <2.2kg	<2.3kg / <3.0kg
Installation	Desktop,Wall-mounted, Rack-mounted
Certification & Warranty
Lightning Protection / Protection Level	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B RoHS
Warranty	1 year, lifelong maintenance.
