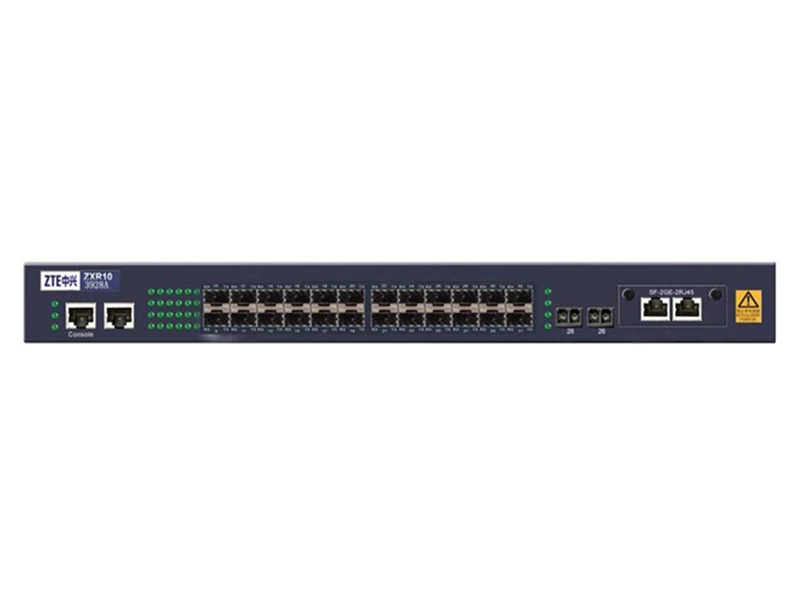

ZTE RS 3928A PS PoE Switch

Özellikler

Web GUI,TELNET,SNMP,SSH,CLI(RS232),
Layer 3 Yönetilebilir Switch,
Anahtarlama Kapasitesi 18,8 Gbps,
İletim Kapasitesi 14,1 Mpps,
Port Başına maksimum 30W,
Maksimum Güç 750W (Poe+ Desteği),
Çalışma Sıcaklığı:(-5) - (+45),
Boyutlar : 43.6 x 442 x 280mm (YxExB),
Ağırlık: < 7 Kg

Teknik Özellikler

Interface Combination

Fixed interfaces

24 FE RJ45 ports (POE/POE+)+2 GE SFP ports

Expansion card (Number of expansion card slots*Type of expansion card)

1*(1 GE RJ45 port+1 GE SFP port)/1*2 GE RJ45 ports/1*2 FE SFP ports/1*2 GE SFP ports

Basic Parameters

Backplane Capacity

48Gbps

Switching Capacity

12.8Gbps

Packet Forwarding Rate

9.6Mpps

Yol Tarifi Göster table Depth(host route number +subnet route number)

4K+8K

MAC table Depth

16K

Features

L2 Features

IEEE 802.1q VLAN, IEEE 802.1p, IEEE 802.3ad, STP, RSTP, MSTP, Selective QinQ, VLAN translation, PVLAN, DHCP Snooping, 802.1x

L3 Features

Static routing, RIP, OSPF, ISIS, BGP, MCE

Multicast

Administratively scoped multicast/IPTV, MVR, IGMP, IGMP Snooping, Filtering, Proxy and Fast Leave, PIM-SM, MSDP

QoS

Marking, modification of Qos priority and mapping between 802.1p, IP DSCP. 8 hardware-based queues per port, SP, WRR, SP+WRR queue scheduling mechanisms, Policing/shaping based on port/flow, support various congestion avoidance mechanisms

Security

CPU anti-attack, CPU overload protection, Broadcast/Multicast/unknown Unicast suppression, STP Root Guard, BPDU guard, uRPF, RIP/OSPF/BGP MD5 encryption checking, IP source Guard

Reliability

LACP, ZESS, ZESR/ZESR+, VRRP

Enhanced Features

MFF, Stacking, POE/POE+

Equipment Management

Local management

Ethernet management port, CLI, Telnet, SSH, Local and remote(Radius/Tacacs+)authentication of user, Web management, SNMP, NetNumen U31, Cluster Management (ZGMP)

Physical Parameters

Dimensions(H*W*D)

43.6mm *442mm *280mm

Maximum Weight

5.9kg

DC power supply

-57V~-48V(POE:-57V~-48V, POE+:-57V~-53V)

AC power supply

100V~240V,

50Hz~60Hz;

1100W RPS Power Supply AC Input: 100V~240V,

DC Output :-55V~-53V
