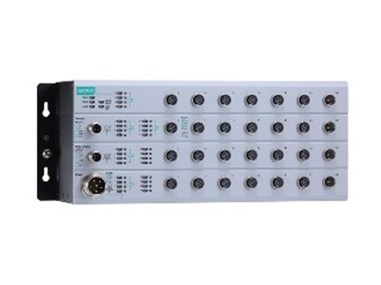

Moxa TN 4528A 16PoE 4GPoE WV CT T PoE Switch
Teknik Özellikler
Input/Output Interface | Alarm Contact Channels | 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC |
Ethernet Interface | 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) | 8 |
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | 16 | |
PoEPorts(100/1000BaseT(X), M12 X-coded 8-pin female connector) | 4 | |
Standards | IEEE 802.1D-2004 for Spanning Tree Protocol | |
IEEE 802.1p for Class of Service | ||
IEEE 802.1Q for VLAN Tagging | ||
IEEE 802.1s for Multiple Spanning Tree Protocol | ||
IEEE 802.1w for Rapid Spanning Tree Protocol | ||
IEEE 802.1X for authentication | ||
IEEE 802.3 for 10BaseT | ||
IEEE 802.3ab for 1000BaseT(X) | ||
IEEE 802.3ad for Port Trunk with LACP | ||
IEEE 802.3af/at for PoE/PoE+ output | ||
IEEE 802.3u for 100BaseT(X) and 100BaseFX | ||
IEEE 802.3x for flow control | ||
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX | ||
Ethernet Software Features | Broadcast Forwarding | IP directed broadcast, broadcast forwarding |
Configuration Options | Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility | |
Filter | 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast | |
Industrial Protocols | EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave) | |
Management | Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management | |
MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB | |
Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC | |
Security | Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH | |
Time Management | IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP | |
Switch Properties | IGMP Groups | 256 |
Max. No. of VLANs | 64 | |
VLAN ID Range | VID 1 to 4094 | |
LED Interface | LED Indicators | STATE, PWR1, PWR2, FAULT, 10/100/1000M |
Serial Interface | Console Port | M12 A-coded male connector |
Power Parameters | Input Current | 7.2 mA @ 24 VDC |
Input Voltage | 24/36/48/72/96/110 VDC | |
No. of Power Inputs | 2 | |
Operating Voltage | 16.8 to 137.5 VDC | |
Overload Current Protection | Supported | |
Power Connector | M23 connector | |
Reverse Polarity Protection | Supported | |
Total PoE Power Budget | 120 W | |
Physical Characteristics | Housing | Metal |
IP Rating | IP42 | |
Dimensions | 347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in) | |
Weight | 3304 g (7.27 lb) | |
Installation | DIN-rail mounting (optional), Wall mounting | |
Environmental Limits | Operating Temperature | -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) | |
Ambient Relative Humidity | 5 to 95% (non-condensing) | |
Altitude | 2000 m | |
Standards and Certifications | EMC | EN 55032/24 |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV | |
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m | ||
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV | ||
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV | ||
IEC 61000-4-6 CS: 10 V | ||
IEC 61000-4-8 PFMF | ||
Freefall | IEC 60068-2-31 | |
Radio Frequency | FCC | |
Railway | EN 50121-4, EN 50155, IEC 60571 | |
Railway Fire Protection | EN 45545-2 | |
Safety | IEC 60950-1, UL 61010-2-201 | |
Shock | IEC 60068-2-27, IEC 61373, EN 50155 | |
Vibration | IEC 60068-2-64, IEC 61373, EN 50155 | |
Declaration | Green Product | RoHS, CRoHS, WEEE |
MTBF | Standards | Telcordia SR332 |
Time | 393,894 hrs | |
Warranty | Warranty Period | 5 years |
Moxa TN 4528A 16PoE 4GPoE WV CT T PoE Switch Pdf Dosyası2.5 MB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Montaj Tipi : Wall Mount
PoE Güç Bütçesi : 50-130 Watt
PoE Port Sayısı : 20 Port
