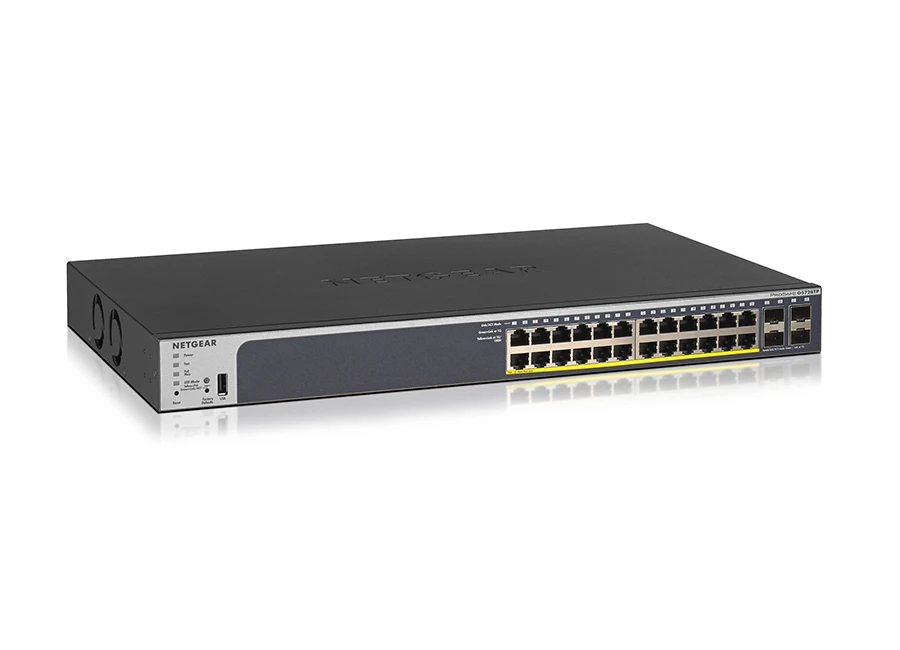

Netgear GS728TPv2 PoE Switch
Özellikler
Traffic Management
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN (selected models)
- VLAN routing (selected models)
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 801.2p-based QoS
- TCP/UDP-based QoS
- DiffServ
- IPv4 and IPv6-based QoS (selected models)
- DSCP Support
- Rate Limiting (ingress, or egress)
- Link Aggregation and LACP
Security
- MAC lockdown
- MAC lockdown by number of MACs
- IEEE 802.1x port authentication - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP
- IEEE 802.1x port authentication - EAP: GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP
- Dynamic VLAN Assignment
- Guest VLAN
- TACACS+
- 3 HTTPS /SSL versions (except FS728TLP)
TLS session (except FS728TLP) - Trusted MAC
- IPv4, L4-based Access Control List (ACL)
- IPv6-based ACL (selected models)
Multicast Efficiency
- IGMP snooping, v1, v2 and v3
- IGMP Snooping querier
- Blocking of unknown multicast traffic
- MLD snooping
Spanning Tree, Routing and Stacking
- IEEE 802.1D, IEEE 802.1w RSTP and MSTP
- Option to enable/disable BPDU flooding when STP is disabled
- Static routing with 32 static routes (Selected models)
- Hosted ARP table size of 512 (Selected models)
Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast Storm control
- Cable diagnostics
- Loop Detection
- DoS Prevention
- IEEE 802.1ab LLDP
- LLDP-MED
- Dual Image
- SNTP
- Option to enable/disable the flooding of EAPOL when 802.1x is disabled
- Protected ports
- DNS client (except FS728TLP)
- DHCP clients
- DHCP snooping (except FS728TLP)
- Ping and traceroute client (except FS728TLP)
- Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
Switch Management
- Web browser-based management GUI
- Smart Control Center Software for multi-switch management
- IP Access List
- IPv6 Management
- Configurable Management VLAN
- SNMP v1/v2c and v3
- Standard MIBs (RFC1213, RFC1643, and RFC1493)
- RMON group 1, 2, 3, 9
- Firmware Upgrade through Smart Control Center (TFTP)
- Firmware download (to switch) and upload (to server) through TFTP/HTTP
- Configuration and Image Upload (to PC) through HTTP
- Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
- Memory & FLASH log
- Syslog (server)
- System password protection
Teknik Özellikler
| Model Description | 24-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (GS728TPv2) |
| 10/100Mbps ports | N/A |
| Gigabit ports | 24 |
| SFP ports | 4 |
| Number of PoE ports | 24 |
| PoE+ (802.3at) | 24 |
| Total PoE Power budget (Watts) | 190W |
| Max MAC entries | 16K |
| Buffer size | 1.5MB |
| VLAN (Number Supported) | 256 |
| VLAN routing | Yes |
| Dynamic VLAN assignment | Yes |
| MLD Snooping | Yes |
| Static route | 32 |
| Host ARP table | 512 |
| EEE | Yes |
| DoS Prevention | Yes |
| Internal/External | Internal 100-240VAC 50-60Hz |
| Max consumption (Watts) | 226W |
| FAN | 2 |
| Acoustic Noise Level @25C (dBA) | 27.Ağu |
| Operating Temperature | ° to 50° C |
| MTBF | 1,250,365 hours |
| Weight (kg) | 3.78kg |
| Dimensions (WxDxH) mm | 440 x 257 x 43.2 mm |
Teknik Kısa
PoE : PoE
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 130-200 Watt
