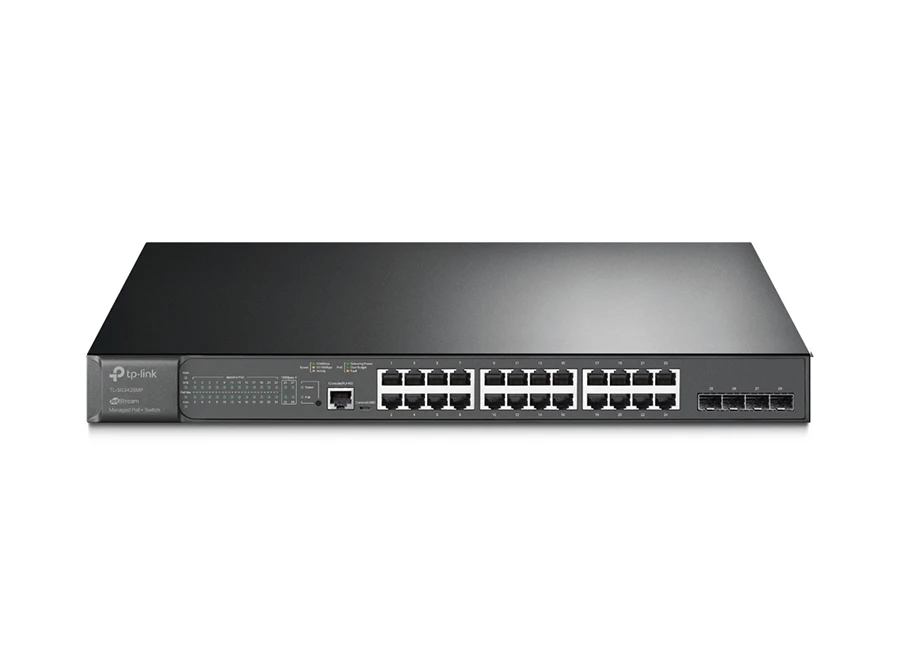

TP-Link TL-SG3428MP PoE Switch

Özellikler

384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Teknik Özellikler

Donanım Özellikleri
Arabirim	• 24× 10/100/1000Mbps RJ45 Ports
	• 4× Gigabit SFP Slots
	• 1× RJ45 Console Port
	• 1× Micro-USB Console Port
Fan Sayısı	2
Güç Kaynağı	100-240 V AC~50/60 Hz
PoE+ Portları (RJ45)	• Standard: 802.3at/af compliant
	• PoE+ Ports: 24 Ports, up to 30 W per port
	• Power Budget: 384 W
Boyutlar ( W X D X H )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Montaj	Rack Mountable
Maks. Güç Tüketimi	• 31.0 W (110 V/60 Hz) (no PD connected)
Maks. Güç Tüketimi	• 463.8 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation	• 105.78 BTU/h (110 V/60 Hz) (no PD connected)
Max Heat Dissipation	• 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)
Performans
Anahtarlama Kapasitesi	56 Gbps
Paket Yönlendirme Hızı	41.66 Mpps
MAC Adres Tablosu	8K
Jumbo Frame	9 KB
Yazılım Özellikleri
Quality of ServiceL2 ve L2+ Özellikleri	• 8 priority queues
	• 802.1p CoS/DSCP priority
	• Queue scheduling
	- SP (Strict Priority)
	- WRR (Weighted Round Robin)
	- SP+WRR
	• Bandwidth Control
	- Port/Flow based Rating Limiting
	• Smoother Performance
	• Action for Flows
	- Mirror (to supported interface)
	- Redirect (to supported interface)
	- Rate Limit
	- QoS Remark
	• Link Aggregation
	- Static link aggregation
	- 802.3ad LACP
	- Up to 8 aggregation groups and up to 8 ports per group
	• Spanning Tree Protocol
	- 802.1d STP
	- 802.1w RSTP
	- 802.1s MSTP
	- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
	• Loopback Detection
	- Port-based
	- VLAN based
	• Flow Control
	- 802.3x Flow Control
	- HOL Blocking Prevention
	• Mirroring
	- Port Mirroring
	- CPU Mirroring
	- One-to-One
	- Many-to-One
	- Tx/Rx/Both
L2 MulticastVLAN	• Supports 511 (IPv4, IPv6) IGMP groups
	• IGMP Snooping
	- IGMP v1/v2/v3 Snooping
	- Fast Leave
	- IGMP Snooping Querier
	- IGMP Authentication
	• IGMP Authentication
	• MVR
	• MLD Snooping
	- MLD v1/v2 Snooping
	- Fast Leave
	- MLD Snooping Querier
	- Static Group Config
	- Limited IP Multicast
	• Multicast Filtering: 256 profiles and 16 entries per profile
	• VLAN Group
	- Max 4K VLAN Groups
	• 802.1q Tagged VLAN
	• MAC VLAN: 12 Entries
	• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
	• GVRP
	• VLAN VPN (QinQ)
	- Port-Based QinQ
	- Selective QinQ
	• Voice VLAN
Erişim Kontrol Listesi	• Time-based ACL
	• MAC ACL
	- Source MAC
	- Destination MAC
	- VLAN ID
	- User Priority
	- Ether Type
	• IP ACL
	-Source IP
	- Destination IP
	- Fragment
	- IP Protocol
	- TCP Flag
	- TCP/UDP Port
	- DSCP/IP TOS
	- User Priority
	• Combined ACL
	• Packet Content ACL
	• IPv6 ACL
	• Policy
	- Mirroring
	- Redirect
	- Rate Limit
	- QoS Remark
	• ACL apply to Port/VLAN
Güvenlik	• IP-MAC-Port Binding
	- DHCP Snooping
	- ARP Inspection
	- IPv4 Source Guard
	• IPv6-MAC-Port Binding
	- DHCPv6 Snooping
	- ND Detection
	- IPv6 Source Guard
	• DoS Defend
	• Static/Dynamic Port Security
	- Up to 64 MAC addresses per port
	• Broadcast/Multicast/Unicast Storm Control
	- kbps/ratio/pps control mode
	• IP/Port/MAC based access control
	• 802.1X
	- Port based authentication
	- Mac based authentication
	- VLAN Assignment
	- MAB
	- Guest VLAN
	- Support Radius authentication and accountability
	• AAA (including TACACS+)
	• Port Isolation
	• Secure web management through HTTPS with SSLv3/TLS 1.2
	• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6L3 Özellikleri	• IPv6 Dual IPv4/IPv6
	• Multicast Listener Discovery (MLD) Snooping
	• IPv6 ACL
	• IPv6 Interface
	• Static IPv6 Routing
	• IPv6 neighbor discovery (ND)
	• Path maximum transmission unit (MTU) discovery
	• Internet Control Message Protocol (ICMP) version 6
	• TCPv6/UDPv6
	• IPv6 applications
	- DHCPv6 Client
	- Ping6
	- Tracert6
	- Telnet (v6)
	- IPv6 SNMP
	- IPv6 SSH
	- IPv6 SSL
	- Http/Https
	- IPv6 TFTP
	• 16 IPv4/IPv6 Interfaces
	• Static Routing
	- 48 static routes
	• Static ARP
	• 316 ARP Entries
	• Proxy ARP
	• Gratuitous ARP
	• DHCP Server
	• DHCP Relay
	• DHCP L2 Relay
Yönetim	• Web-based GUI
	• Command Line Interface (CLI) through console port, telnet
	• SNMPv1/v2c/v3
	- Trap/Inform
	- RMON (1, 2, 3, 9 groups)
	• SDM Template
	• DHCP/BOOTP Client
	• 802.1ab LLDP/LLDP-MED
	• DHCP AutoInstall
	• Dual Image, Dual Configuration
	• CPU Monitoring
	• Cable Diagnostics
	• EEE
	• Password Recovery
	• SNTP
	• System Log
Gelişmiş Özellikler	• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
	• Automatic Device Discovery
	• Batch Configuration
	• Batch Firmware Upgrading
	• Intelligent Network Monitoring
	• Abnormal Event Warnings
	• Unified Configuration
	• Reboot Schedule
	• ZTP (Zero-Touch Provisioning)*
Diğerleri
Sertifika	CE, FCC, RoHS
Paket İçeriği	• TL-SG3428MP Switch
	• Power Cord
	• Quick Installation Guide
	• Rackmount Kit
	• Rubber Feet
Ortam	• Operating Temperature: 0–45 ℃ (32–113 ℉);
	• Storage Temperature: -40–70 ℃ (-40–158 ℉)
	• Operating Humidity: 10–90% RH non-condensing
	• Storage Humidity: 5–90% RH non-condensing
