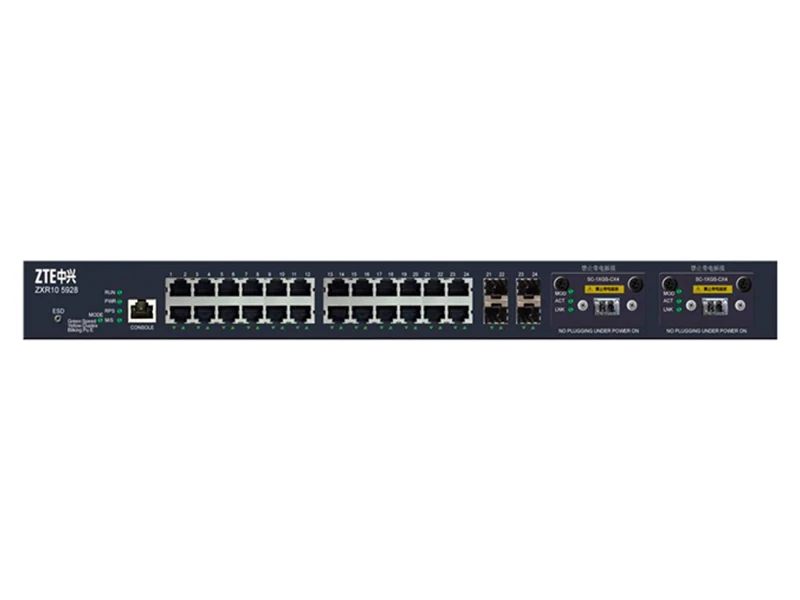

ZTE RS 5928 PS PoE Switch
Özellikler
Teknik Özellikler
Interface Combination |
Fixed interfaces |
20 GE RJ45 ports+4 GE Combo ports |
Expansion card (Number of expansion card slots*Type of expansion card) |
4*1 10GE XFP port/4*1 10GE CX4 port stacking card |
Basic Parameters |
Backplane Capacity |
240Gbps |
Switching Capacity |
128Gbps |
Packet Forwarding Rate |
96Mpps |
Yol Tarifi Göster table Depth(host route number +subnet route number) |
8K+12K |
MAC table Depth |
16K |
Features |
L2 Features |
IEEE 802.1q VLAN, IEEE 802.1p, IEEE 802.3ad, STP, RSTP, MSTP, Selective QinQ, VLAN translation, PVLAN, DHCP Snooping |
L3 Features |
Static routing, RIP, OSPF, ISIS, BGP |
Multicast |
MVR, IGMP, IGMP Snooping, Filtering, Proxy and Fast Leave, PIM-SM, MSDP |
QoS |
Marking, modification of Qos priority and mapping between 802.1p, IP DSCP. 8 hardware-based queues per port, SP, WRR, SP+WRR queue scheduling mechanisms, Policing/shaping based on port/flow, support various Congestion avoidance mechanisms |
Security |
CPU anti-attack, CPU overload protection, Broadcast/Multicast/unknown Unicast suppression, STP Root Guard, BPDU guard, uRPF, RIP/OSPF/BGP MD5 encryption checking, IP source Guard |
Reliability |
LACP, ZESS, ZESR/ZESR+, VRRP |
Enhanced Features |
Stacking, POE/POE+ |
Equipment Management |
RS232 Console (RJ45), CLI, Telnet, SSH, Local and remote (Radius/Tacacs+)authentication of user, SNMP, NetNumen U31, Cluster Management (ZGMP) |
Physical Parameters |
Dimensions(H*W*D) |
44mm*442mm*360mm |
Maximum Weight |
6.2kg |
AC power supply |
100V~240V, |
50Hz~60Hz; |
1100W RPS Power Supply: AC Input: 100V~240V, |
DC Output :-55V~-53V |
Maximum power consumption |
820W (Among which system power 100W, POE power output 720W) |
Heat dissipation pattern |
Fan cooling |
Heat dissipation |
280 BTU/h |
Temperature, humidity |
Working temperature:-5oC~+45oC, humidity:10%~90% |
Working altitude |
<3000 meters="" --3000--=""> |
MTBF/MTTR |
> 100000 hours/ < 30 minutes |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 20 Port
PoE Güç Bütçesi : 200-400 Watt
