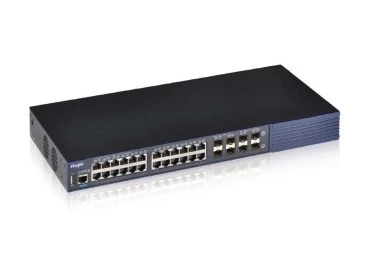

Ruijie RG S2910 24GT4SFP UP H PoE Switch
Teknik Özellikler
| Model | RG-S2910-24GT4SFP-UP-H |
| CPU | Built-in CPU, single-core processor, 1GHz |
| Flash Memory | V1.XX: 512MB |
| V2.XX/V3.XX: 256MB | |
| SDRAM | DDRIII 512MB |
| Optical Module | For details, see Appendix B. |
| * The supported module type may change at any time. Consult us for the latest information. | |
| SFP Port | Supports 1000Base-X modules. Does not support 100Base-FX. |
| * When the SFP ports are used as stack ports: When used as stack ports, SFP ports of hardware versions V1.XX only support 10G DAC copper cables (XG-SFP-CU1M, XG-SFP-CU3M and XG-SFP-CU5M); SFP ports of hardware versions V2.XX and V3.XX support 10G DAC copper cables (XG-SFP-CU1M, XG-SFP-CU3M and XG-SFP-CU5M), 2.5G DAC copper cables (GE-SFP-STACK1.6M), and SFP transceiver modules. | |
| Power Supply | l AC input |
| Rated voltage range: 100V to 240V | |
| Maximum voltage range: 90V to 264V | |
| Frequency: 50/60 Hz | |
| Rated current: 6.8A | |
| l HVDC input | |
| Voltage range: 192V to 290V | |
| Current range: 2.5A to 3.5A | |
| Earth Leakage Current | ≤0.5mA |
| EEE | Supported |
| PoE | All the RJ45 ports are PoE-capable. Ports 1-4 are HPoE-capable with the maximum power output of 60W. Ports 5-24 support the maximum power output of 30W. |
| The maximum output power of PoE/PoE+/HPoE is 370W. | |
| * The HPoE ports support the maximum power supply of 60W only when connected with HPoE PDs. For example, RG-PBOX-DC12 and RG-PBOX-AC24. | |
| * HPoE ports support IEEE 802.af/at PoE. | |
| * The available number of PDs is determined by PSE output power and PD input power in practice. | |
| Power Consumption | Less than 40W with no PoE load |
| Less than 460W with PoE full load | |
| Operating Temperature | ℃ to 50℃ (32°F to 122°F) |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Fan | Speed adjustment and fault alarm |
| Temperature Warning | Supported |
| EMCStandards | GB9254-2008 |
| EN 300 386 | |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 61000-4-2 | |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 61000-4-6 | |
| EN 61000-4-11 | |
| EN 55022 | |
| EN 55024 | |
| EN 61000-4-8 | |
| Security Standards | GB4943-2011 |
| EN60950-1 | |
| IEC60950-1 | |
| Dimensions(W x D x H) | 440 mm x 260 mm x 44 mm |
| Weight | ≤5.5 kg (with package) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
