Açıklama

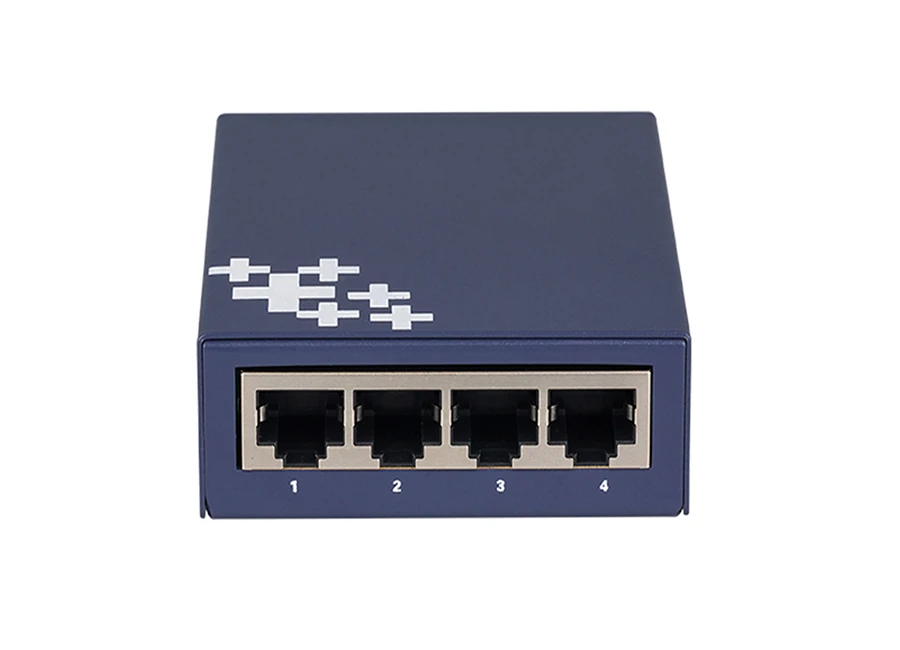

Dynacom DS1005P PoE Switch

Teknik Özellikler


Technology
Network Standards
IEEE802.3i l0BASE-T
IEEE802.3u l00BASE-TX
IEEE802.3x Flow Control
PoE power
15.4W per port(IEEE802.3af)
Wiring: Data & power provided  over pairsl/2and 3/6
Cable:UPT cat.5 or higher
Processing types
Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control
Backplane Bandwidth
1.6Gbps
Buffer memory
96Kb embedded  memory per unit
MAC Address
2K
Network latency
Less than 20us for 64-byte frames  in Store-and- forward mode
Power Input
AC90-260V input
PoE power consumption
15.4W /port
Power budget
65W
Mechanical
Casing
Metal case
Dimension
95 x 70 x 26mm(LxWxH)
Weight
0.45KG
LED Indicators
System:Power,PoE Maximum  power
Per port: Link Activity  Speed PoEactive  PoEerror
Installation
Desktop
Environment specifications
Operating Temperature
-10~45°C
Storage Temperature
-10~70°C
Operating Humidity
90%  max relative  humidity  on-condensing
Storage Humidity
90% max relative  humidity  on-condensing
Safety
CE/ROHs/FCC
Warranty
1 year



Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
PoE Port Sayısı : Tooltip 4 Port
PoE Güç Bütçesi : 50-130 Watt
