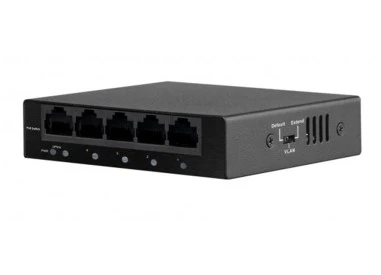

Hikvision DS 3E0505P E PoE Switch
Özellikler
- 4 × gigabit PoE ports, and 1 × gigabit RJ45 port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- PoE port with 6 KV surge protection.
- PoE output power management.
- Gigabit network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Fan-free design with high reliability.
Teknik Özellikler
| Item | |
| Item | DS-3E0505P-E |
| Backplane | |
| Backplane | 10 Gbps |
| Forwarding rate | |
| Forwarding rate | 7.44 Mpps |
| MAC | |
| MAC | 2 K |
| Ports | |
| Ports | 4 × gigabit PoE ports, and 1 × gigabit RJ45 port |
| Dimensions(W×D×H)(mm) | |
| Dimensions(W×D×H)(mm) | 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”) |
| POE/POE+ | |
| POE/POE+ | IEEE 802.3af, IEEE 802.3at |
| POE power consumption | |
| POE power consumption | 65 W |
| Power supply | |
| Power supply | 48 VDC, 1.35 A |
| Environment | |
| Environment | Operating temperature 0˚C to 40˚C (32˚F to 104˚F) |
| Storage temperature –40˚C to 85˚C (–40˚F to 185˚F) | |
| Operating humidity 5% to 95% (no condensation) | |
| Storage humidity 5% to 95% (no condensation) | |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
