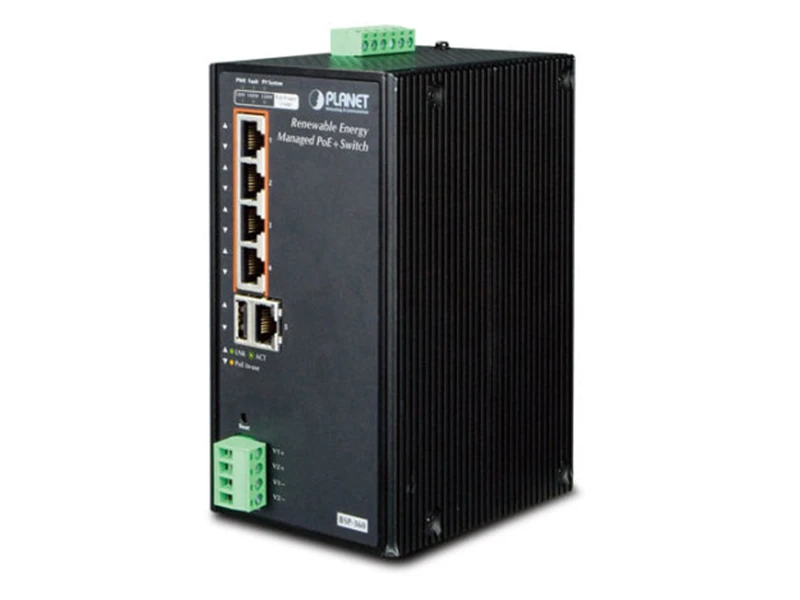

Planet BSP 360 Endüstriyel PoE Managed Switch
Özellikler
Physical Port
- 5-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port 1 to Port 4)
- RJ45 type interface for basic management and setup
- USB type A female for setting file backup and restore
- Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD alive-check
- PoE schedule
Battery Management
- Battery type option: Nickel-cadmium battery or lead-acid battery
- Easy diagnostic of the system operating status via LED indicator
- Battery current usage and status
- Battery capacity and power consumption statistics
- Low voltage cut-off protection: Send alert and cut off the low priority PoE port for the low power battery
- Pulse Width Modulation (PWM) Protection
- Reverse current protection to prevent the current circuits from flowing back to the PV panel
- Over-current and over-temperature protection
- Reverse polarity protection (for battery and charging electrodes)
Industrial Case & Installation
- IP30 aluminum case
- DIN-rail and wall-mounted design
- Supports -10 to 60 degrees C operating temperature
- Supports ESD 6KV DC Ethernet protection
- Redundant power design
- 24V~45V DC wide power input
Switching
- Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- Automatic address learning and address aging
- Internet types: Dynamic IP, static IP, PPPoE, L2TP, PPTP
- Static and dynamic (RIP1 and 2) routing
- IP/MAC-based bandwidth control
- Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
- 802.1d STP and IGMP Proxy
Security
- Port filtering lets you either allow or prevent which applications can access the Internet.
- MAC filtering allows you to include or exclude computers and devices based on their MAC address
- URL filtering allows you to control access to Internet websites in an URL list
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
Management
- Switch Management Interface
- IPv4 Web switch management
- SNMP v1, v2c
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP
- Configuration upload/download through HTTP
- Hardware reset button for system reboot or reset to factory default
- NTP Network Time Protocol
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote syslog server
- PLANET Smart Discovery Utility
Teknik Özellikler
Hardware Specifications | |
Copper Ports | LAN: 5 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 1 to Port 5, bridge mode) |
WAN: 1 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 5, gateway mode) | |
PoE Injector Port | 4 ports with 802.3af/802.3at PoE injector function (Port 1 to Port 4) |
USB | 1 USB Type A female for setting backup |
Power Output | 4 PoE out 51VDC; max. 30 watts per PoE port |
2 DC out 24@ 1A maximum (four-pin terminal block) | |
* The voltage of DC out is based on the battery. | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 10Gbps/non-blocking |
Switch Throughput@64 bytes | 5.95Mpps@64 bytes |
MAC Address Table | 8K entries |
Shared Data Buffer | 512Kbit |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
LED | 3 LEDs for System and Power: |
Green: Power | |
Green: Fault | |
Green: System | |
4 LEDs for PoE Copper Ports (Port 1~Port 4): | |
Green: LNK/ACT | |
Orange: PoE-in-use | |
1 LED for 10/100/1000T Copper Port (Port 5): | |
Green: LNK/ACT | |
3 LEDs for PoE Power Usage (W) | |
Green: 50, 100 and 120W | |
Connector | Removable 6-pin terminal block |
Pin 1/2 for PV panel; Pin 3/4 for alarm; Pin 5/6 for battery | |
Alarm | 1 Digital Output (DO): |
Level 0: -24V~2.1V (±0.1V) | |
Level 1: 2.1V~24V (±0.1V) | |
Open collector to 24V DC, 100mA max. | |
Power Requirements | PV in: 24~45V DC |
Battery in/out: 24V DC | |
Power Consumption/ Dissipation | 5.04 watts, 17.1BTU (Standby without PoE function) |
6.96 watts, 23.7 BTU (Full loading without PoE function) | |
135.36 watts, 461.5 BTU (Full loading with PoE function) | |
Dimensions (W x D x H) | 84 x 107 x 152 mm |
Weight | 1026g |
ESD Protection | 6KV DC |
Enclosure | IP30 aluminum case |
Installation | DIN-rail kit and wall-mount ear |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 51V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) |
Per port 51V DC, 535mA. Max. 30 watts (IEEE 802.3at) | |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (PoE consumption + DC out and depending on power input) |
Max. Number of Class 2 PDs | 4 |
Max. Number of Class 3 PDs | 4 |
Max. Number of Class 4 PDs | 4 |
Electrical Characteristics | |
System Voltage Rating | 24V DC |
Maximum Charging Current | 6A |
Max. Solar Array VOC | 60V DC |
Max. Operating Voltage | 45V DC |
Total Current Consumption | While operating -32mA |
At idle -11mA | |
High Temperature Shutdown | 100 degrees C disconnect solar and load |
80 degrees C reconnect solar and load | |
Battery Charging Characteristics | |
Charge Algorithm | Bulk charge (constant current), Absorption charge (constant voltage) and Floating charge. Absorption and Floating charge with PWM protection. |
Maximum Output Current | 6A |
Nickel-cadmium Battery | ± 40 mV/degrees Celsius for NiCad type batteries; charge cut-off @ 55 degrees C |
(Temperature compensation baseline@ 25 degrees C) | |
Lead Acid Battery (Default Setting) | ± 60 mV/degrees Celsius for lead acid type batteries; charge cut-off @ 55 degrees C |
(Temperature compensation baseline@ 25 degrees C) | |
Float Charge Voltage | DC 27.2V (26.0~30.0V) |
Absorption Charge Voltage | DC 29.2V (28.0~32.0V) |
LVD (Low Voltage Disconnection) | DC 22.2V (21.0~25.0V) |
LVR (Low Voltage Reconnection) | DC 24.8V (23.0~27.0V) |
Router Features | |
Internet Connection Type | Shares data and Internet access with users, supporting the following internet accesses: |
PPPoE | |
Dynamic IP | |
Static IP | |
PPTP | |
L2TP | |
Firewall | NAT firewall with SPI (Stateful Packet Inspection) |
Built-in NAT server supporting Port Forwarding, and DMZ | |
Built-in firewall with IP address/MAC address/Port/ URL filtering | |
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection | |
Routing Protocol | Static/Dynamic (RIP1 and 2) routing |
VPN Pass-through | PPTP, L2TP, IPSec, IPv6 |
LAN | Built-in DHCP server supporting static IP address distribution |
Supports UPnP, Dynamic DNS | |
Supports IGMP Proxy | |
Supports 802.1d STP (Spanning Tree) | |
IP/MAC-based bandwidth control | |
Management | |
Management Interface | Setup of system/management functions |
Web firmware upgrade | |
SNMP trap for alarm notification of events | |
PoE Management | Power limit by consumption and allocation |
PoE admin mode | |
Per port power schedule | |
Per port power enable/disable | |
Power feeding priority | |
Current per port usage and status | |
Total power consumption | |
PD alive check | |
Scheduled power recycling | |
Battery Management | Battery current usage and status |
Battery capacity statistics | |
Low Voltage Cut-Off Protection | |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T Ethernet |
IEEE 802.3u 100BASE-TX Fast Ethernet | |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
IEEE 802.3x Flow Control and Back Pressure | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
RFC 768: UDP | |
RFC 791: IP | |
RFC 2068 HTTP | |
RFC 1157: SNMP v1 | |
RFC 1902: SNMP v2c | |
RFC 5424: Syslog | |
Environment | |
Operating | Temperature: -10 ~ 60 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
