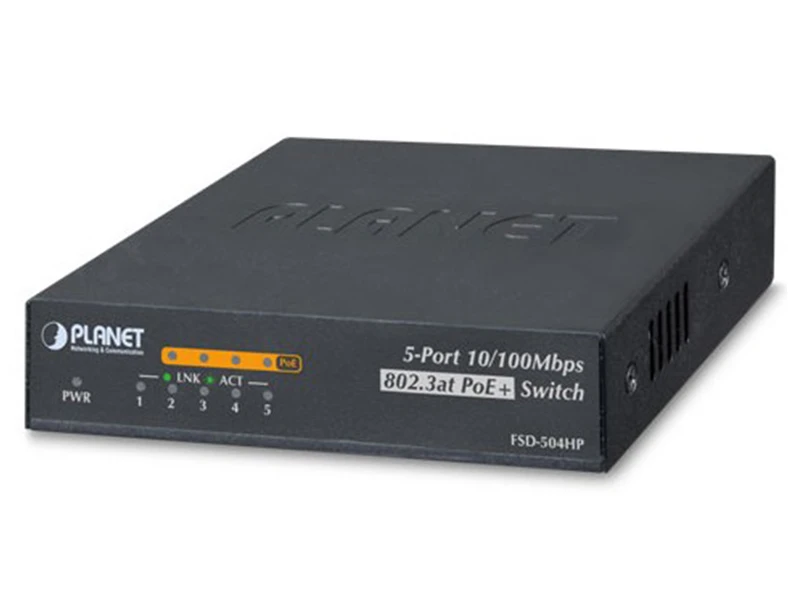

Planet FSD 504HP PoE Switch
Teknik Özellikler
Hardware Specifications | |
Network Connector | 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX |
PoE Inject Port | 4 ports with 802.3at / af PoE injector function (port 2 to port 5) |
LED Display | System: Power (Green) |
Per PoE port:PoE (Orange, port 2 to port 5) | |
LNK/ACT (Green, port 1 to port 5) | |
Switch Architecture | Store and Forward switch architecture |
MAC Address Table | 1K MAC address table with auto learning function |
Switch Fabric | 1Gbps |
Switch Throughput | 0.74Mpps @64Bytes |
Maximum Packet Size | 1536Bytes |
Flow Control | Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex |
Power Requirements | DC 56V, 1.5A. |
Power Consumption | Max.62 watts / 211.5 BTU |
Dimensions (W x D x H) | 90 x 80 x 21 mm |
Weight | 172g |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
IEEE 802.3at Power over Ethernet Plus / PSE | |
PoE Power Supply Type | Mid-Span |
Power Pin Assignment | 4/5(+), 7/8(-) |
PoE Power Output | Per Port 56V DC, 375mA. Max. 15.4 watts (IEEE 802.3af) |
Per Port 56V DC, 375mA. Max. 30 watts (IEEE 802.3at) | |
PoE Power Budget | 60 watts |
Number of 802.3af PD Class 0, 1, 2, 3 can be powered | 4 |
Number of 802.3at PD Class 1, 2, 3 can be powered | 4 |
Number of 802.3at PD Class 0, 4 can be powered | 2 |
Standard Conformance | |
EMI Safety | FCC Class A, CE |
Standard Compliance | IEEE 802.3:Ethernet |
IEEE 802.3u:Fast Ethernet | |
IEEE 802.3x:Flow Control | |
IEEE 802.3af:Power over Ethernet | |
IEEE 802.3at:High Power over Ethernet | |
Environment | |
Operating Environment | 0 ~ 50 degrees C |
Storage Environment | -10 ~ 70 degrees C |
Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
Hardware Specifications Network Connector 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX PoE Inject Port 4 ports with 802.3at / af PoE injector function (port 2 to port 5) LED Display System: Power (Green)
Per PoE port:PoE (Orange, port 2 to port 5)
LNK/ACT (Green, port 1 to port 5) Switch Architecture Store and Forward switch architecture MAC Address Table 1K MAC address table with auto learning function Switch Fabric 1Gbps Switch Throughput 0.74Mpps @64Bytes Maximum Packet Size 1536Bytes Flow Control Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex Power Requirements DC 48V, 1.5A. Power Consumption Max.62 watts / 211.5 BTU Dimensions (W x D x H) 90 x 80 x 21 mm Weight 172g Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus / PSE PoE Power Supply Type Mid-Span Power Pin Assignment 4/5(+), 7/8(-) PoE Power Output Per Port 48V DC, 375mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 48V DC, 375mA. Max. 30 watts (IEEE 802.3at) PoE Power Budget 60 watts Number of 802.3af PD Class 0, 1, 2, 3 can be powered 4 Number of 802.3at PD Class 1, 2, 3 can be powered 4 Number of 802.3at PD Class 0, 4 can be powered 2 Standard Conformance EMI Safety FCC Class A, CE Standard Compliance IEEE 802.3:Ethernet
IEEE 802.3u:Fast Ethernet
IEEE 802.3x:Flow Control
IEEE 802.3af:Power over Ethernet
IEEE 802.3at:High Power over Ethernet Environment Operating Environment 0 ~ 50 degrees C Storage Environment -10 ~ 70 degrees C Operating Humidity 5 ~ 95%, relative humidity, non-condensing Storage Humidity 5 ~ 95%, relative humidity, non-condensing - See more at: http://www.bimel.com.tr/urun/pl-fsd-504hp#sthash.WF02WNcx.dpu
Per PoE port:PoE (Orange, port 2 to port 5)
LNK/ACT (Green, port 1 to port 5) Switch Architecture Store and Forward switch architecture MAC Address Table 1K MAC address table with auto learning function Switch Fabric 1Gbps Switch Throughput 0.74Mpps @64Bytes Maximum Packet Size 1536Bytes Flow Control Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex Power Requirements DC 48V, 1.5A. Power Consumption Max.62 watts / 211.5 BTU Dimensions (W x D x H) 90 x 80 x 21 mm Weight 172g Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus / PSE PoE Power Supply Type Mid-Span Power Pin Assignment 4/5(+), 7/8(-) PoE Power Output Per Port 48V DC, 375mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 48V DC, 375mA. Max. 30 watts (IEEE 802.3at) PoE Power Budget 60 watts Number of 802.3af PD Class 0, 1, 2, 3 can be powered 4 Number of 802.3at PD Class 1, 2, 3 can be powered 4 Number of 802.3at PD Class 0, 4 can be powered 2 Standard Conformance EMI Safety FCC Class A, CE Standard Compliance IEEE 802.3:Ethernet
IEEE 802.3u:Fast Ethernet
IEEE 802.3x:Flow Control
IEEE 802.3af:Power over Ethernet
IEEE 802.3at:High Power over Ethernet Environment Operating Environment 0 ~ 50 degrees C Storage Environment -10 ~ 70 degrees C Operating Humidity 5 ~ 95%, relative humidity, non-condensing Storage Humidity 5 ~ 95%, relative humidity, non-condensing - See more at: http://www.bimel.com.tr/urun/pl-fsd-504hp#sthash.WF02WNcx.dpu
Hardware Specifications Network Connector 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX PoE Inject Port 4 ports with 802.3at / af PoE injector function (port 2 to port 5) LED Display System: Power (Green)
Per PoE port:PoE (Orange, port 2 to port 5)
LNK/ACT (Green, port 1 to port 5) Switch Architecture Store and Forward switch architecture MAC Address Table 1K MAC address table with auto learning function Switch Fabric 1Gbps Switch Throughput 0.74Mpps @64Bytes Maximum Packet Size 1536Bytes Flow Control Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex Power Requirements DC 48V, 1.5A. Power Consumption Max.62 watts / 211.5 BTU Dimensions (W x D x H) 90 x 80 x 21 mm Weight 172g Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus / PSE PoE Power Supply Type Mid-Span Power Pin Assignment 4/5(+), 7/8(-) PoE Power Output Per Port 48V DC, 375mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 48V DC, 375mA. Max. 30 watts (IEEE 802.3at) PoE Power Budget 60 watts Number of 802.3af PD Class 0, 1, 2, 3 can be powered 4 Number of 802.3at PD Class 1, 2, 3 can be powered 4 Number of 802.3at PD Class 0, 4 can be powered 2 Standard Conformance EMI Safety FCC Class A, CE Standard Compliance IEEE 802.3:Ethernet
IEEE 802.3u:Fast Ethernet
IEEE 802.3x:Flow Control
IEEE 802.3af:Power over Ethernet
IEEE 802.3at:High Power over Ethernet Environment Operating Environment 0 ~ 50 degrees C Storage Environment -10 ~ 70 degrees C Operating Humidity 5 ~ 95%, relative humidity, non-condensing Storage Humidity 5 ~ 95%, relative humidity, non-condensing - See more at: http://www.bimel.com.tr/urun/pl-fsd-504hp#sthash.WF02WNcx.dpuf
Per PoE port:PoE (Orange, port 2 to port 5)
LNK/ACT (Green, port 1 to port 5) Switch Architecture Store and Forward switch architecture MAC Address Table 1K MAC address table with auto learning function Switch Fabric 1Gbps Switch Throughput 0.74Mpps @64Bytes Maximum Packet Size 1536Bytes Flow Control Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex Power Requirements DC 48V, 1.5A. Power Consumption Max.62 watts / 211.5 BTU Dimensions (W x D x H) 90 x 80 x 21 mm Weight 172g Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus / PSE PoE Power Supply Type Mid-Span Power Pin Assignment 4/5(+), 7/8(-) PoE Power Output Per Port 48V DC, 375mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 48V DC, 375mA. Max. 30 watts (IEEE 802.3at) PoE Power Budget 60 watts Number of 802.3af PD Class 0, 1, 2, 3 can be powered 4 Number of 802.3at PD Class 1, 2, 3 can be powered 4 Number of 802.3at PD Class 0, 4 can be powered 2 Standard Conformance EMI Safety FCC Class A, CE Standard Compliance IEEE 802.3:Ethernet
IEEE 802.3u:Fast Ethernet
IEEE 802.3x:Flow Control
IEEE 802.3af:Power over Ethernet
IEEE 802.3at:High Power over Ethernet Environment Operating Environment 0 ~ 50 degrees C Storage Environment -10 ~ 70 degrees C Operating Humidity 5 ~ 95%, relative humidity, non-condensing Storage Humidity 5 ~ 95%, relative humidity, non-condensing - See more at: http://www.bimel.com.tr/urun/pl-fsd-504hp#sthash.WF02WNcx.dpuf
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
