Açıklama

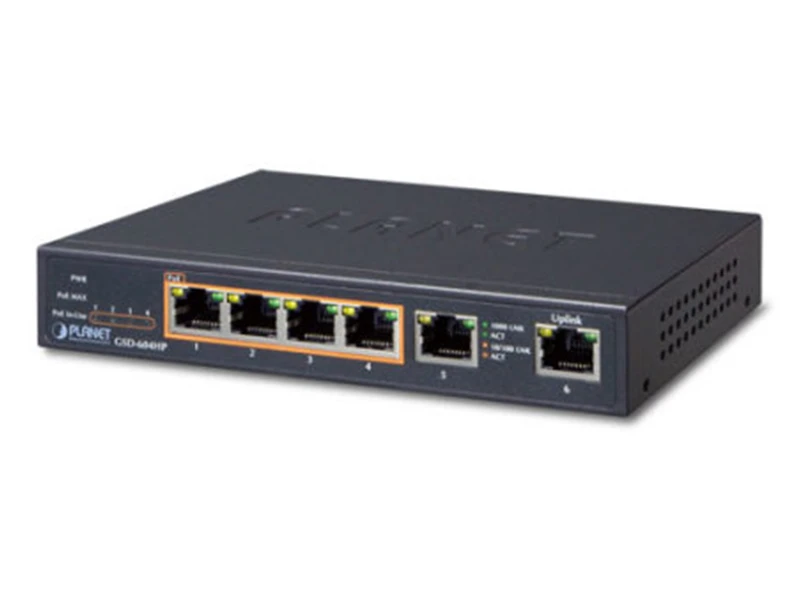

Planet PL GSD 604HP PoE Switch
Özellikler
- 4-port 10/100/1000T 802.3at PoE+
- PoE budget 55W
- 2-port 10/100/1000T
- 54V DC power to PoE powered device
- 55-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Teknik Özellikler
| Hardware Specifications | |
| Network Connector | 6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX |
| PoE Inject Port | 4-port with 802.3af/at PoE injector function (port 1 to port 4) |
| LED Display | System: |
| Power (Green) | |
| Per PoE port: | |
| PoE (Orange, port 1 to port 4) | |
| PoE max. (Orange) | |
| Ethernet port: | |
| 1000 LNK (Green) | |
| 10/100 LNK (Orange) | |
| Thermal Fan | Fanless design |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address Table | 8K MAC address table with auto learning function |
| Switch Fabric | 12Gbps |
| Switch Throughput | 8.92Mpps @64 bytes |
| Jumbo Packet | 9216 bytes |
| Flow Control | Back pressure for half-duplex |
| IEEE 802.3x pause frame for full-duplex | |
| Power Requirements | 55V DC, 1.1A |
| ESD Protection | 6kV DC |
| Power Consumption | Max. 60 watts, 204.6 BTU |
| Dimensions (W x D x H) | 160 x 92.5 x 28 mm |
| Weight | 374g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
| PoE Power Budget | 55 watts |
| Standard Conformance | |
| EMI Safety | FCC Class B, CE |
| Standard Compliance | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
PoE Güç Bütçesi : 50-130 Watt
PoE Port Sayısı :
4 Port
4 Port Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Wall Mount
