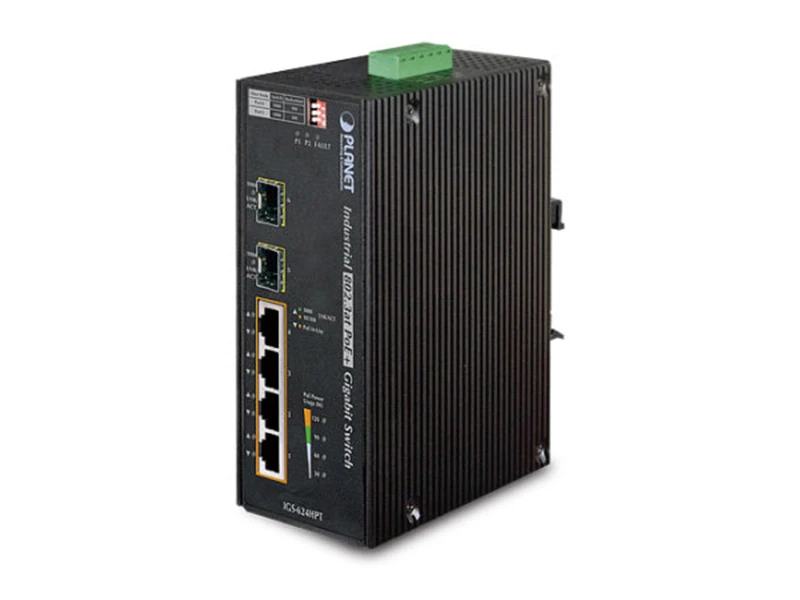

Planet PL IGS 624HPT Endüstriyel PoE Switch
Özellikler
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 4 x 10/100/1000Base-T RJ-45 TP |
Auto-MDI/MDI-X, Auto-Negotiation | |
SFP / mini-GBIC Slots | 2 x SFP interfaces |
Supports 1000Base-SX/LX and 100Base-FX SFP transceivers | |
DIP Switch | DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX |
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX | |
DIP-3: Switch mode / Fiber Redundant mode | |
Connector | Removable 6-pin terminal block |
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 | |
Alarm | Provides one relay output for power fail |
Alarm Relay current carry ability: 1A @ DC 24V | |
LED | 3 x LED for System and Power: |
■ Green: DC Power 1 | |
■ Green: DC Power 2 | |
■ Green: Power Fault | |
2 x LED for Per Copper Port (Port-1~Port-4): | |
■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT | |
■ Orange: PoE In-use | |
1 x LED for Per mini-GBIC interface (Port-5 and Port-6): | |
■ Green: LNK/ACT | |
4 x LED for PoE Power Usage (W): | |
■ Orange: 30, 60, 90 and 120W | |
ESD Protection | 6KV DC |
EFT Protection | 6KV DC |
Enclosure | IP30 aluminum metal case |
Installation Type | DIN rail kit or wall mount |
Dimensions (W x D x H) | 152 x 107x 72 mm |
Weight | 1539g |
Power Requirements | 48V DC, 5A max. |
Redundant power with polarity reverse protection function | |
Power Consumption / Dissipation | 15.1 watts / 52 BTU (System loading without PoE) |
135.1 watts / 461 BTU (Full loading with PoE function) | |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Output | Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) |
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) | |
Max. number of Class 4 PD | 4 |
Switch Specification | |
Switch Processing Scheme | Store-and-Forward |
Address Table | 1K entries |
Flow Control | Back pressure for half duplex |
IEEE 802.3x Pause Frame for full duplex | |
Switch fabric | 12Gbps |
Throughput (packet per second) | 8.93Mpps@64bytes |
Maximum Transmit Unit | 9216 bytes |
Speed | SX/LX: 2000Mbps (full-duplex) |
FX: 200Mbps (full-duplex) | |
TP: 10/20Mbps, 100/200Mbps, 2000Mbps | |
Standards Conformance | |
Standards Compliance | IEEE 802.3 Ethernet / 10Base-T |
IEEE 802.3u Fast Ethernet / 100Base-TX | |
IEEE 802.3ab Gigabit Ethernet / 1000Base-T | |
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX | |
IEEE 802.3x Full-Duplex Flow Control | |
IEEE 802.3at High Power over Ethernet | |
IEEE 802.3af Power over Ethernet | |
Regulation Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC60068-2-32(Free fall) |
IEC60068-2-27(Shock) | |
IEC60068-2-6(Vibration) | |
Environment | |
Temperature | Operating: -40~75 degree C |
Storage: -40~75 degrees C | |
Humidity | Operating: 5~95% (Non-condensing) |
Storage: 5~95% (Non-condensing) |
Planet PL IGS 624HPT Endüstriyel PoE Switch PDF Dosyası1.38 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Wall Mount
