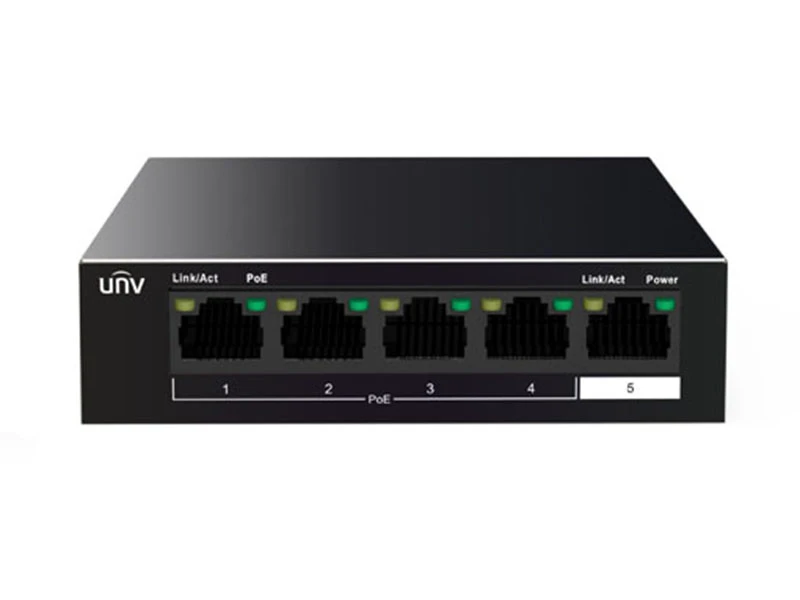

Uniview NSW2010 5T POE IN PoE Switch
Özellikler
Teknik Özellikler
| Item | Description |
| Ports | 5×10/100Base-TX autosensing Ethernet ports(4 10/100Mbps ports support PoE) |
| Port attribute | 10/100 Mbit/s transfer rate |
| Half-duplex, full-duplex and auto-negotiation | |
| Auto MDI/MDIX | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| MAC | 1K |
| Packet forwarding rate | 0.74Mpps |
| Switching capacity | 1Gbps |
| EXTEND mode | |
Extend Mode: If the extend mode is enabled, the transmission
distance of both power and data will extend up to 250m(10Mbps),
this funcation can replace the extender and parts of the Fiber. It will
extend the distance of the whole system and save the cost of the project. | |
| Status LEDs | Link/Act (steady yellow): link is normal |
| Link/Act (flashing yellow): data is being forwarded | |
| Link/Act (off): no link | |
| PoE (steady green): the port is powering a powered device properly | |
| PoE (off): the port is not connected to any powered device or is not supplying power | |
| Power (steady green): AC input is normal | |
| Power (off): AC input is abnormal | |
| PoE | Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W)， |
| PoE power type is end-span(12+, 36- and 45+, 78- line pair) | |
| Max PoE capacity: 57.8W | |
| Consumption | ≤ 63.7 W |
| DC voltage | 51 V , 1.25A |
| Operating temperature | °C-40°C (32°F-104°F) |
| Operating humidity | 10%-90% non-condensing |
| Storage temperature | -40°C-70°C (-40°F-158°F) |
| Storage humidity | 5%-90% non-condensing |
| Dimensions (W×D×H) | 100mm*100mm*26mm |
| Certification | FCC,CE,RoHS |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
Çalışma Mesafesi : 250 Mt.
Yönetilebilirlik : Yönetilemez
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
