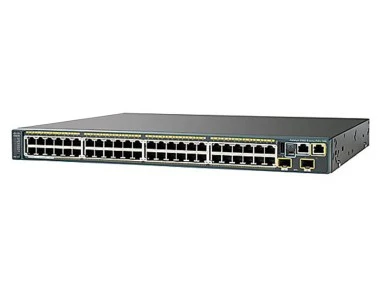

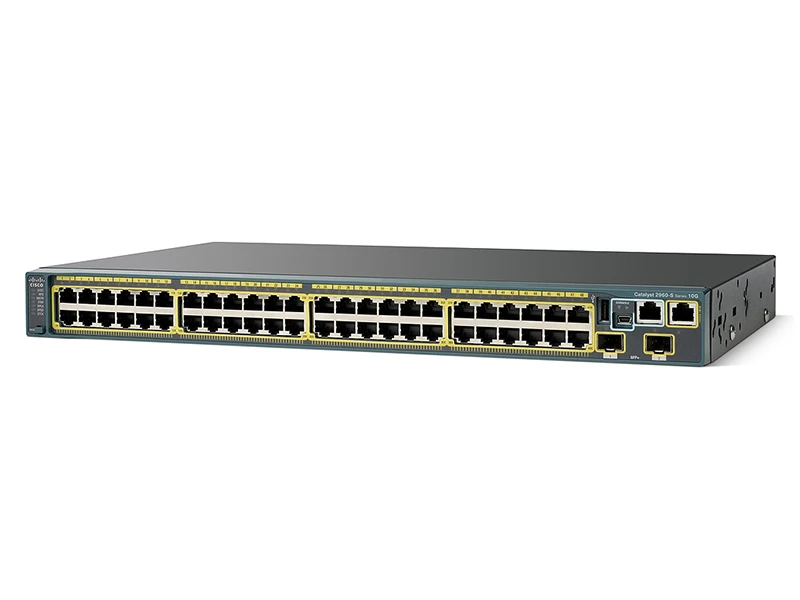

Cisco Catalyst 2960S 48LPD L 10/100/1000 PoE Switch
Teknik Özellikler
| Networking |
| Cabling Type: Ethernet 1000Base-T , Ethernet 100Base-TX , Ethernet 10Base-T |
| Communication Mode: Full-duplex , Half-duplex |
| Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3ah , IEEE 802.3at , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z |
| Connectivity Technology: Wired |
| Data Transfer Rate: 1000 Mbps |
| Empty Slots: 2 x SFP+ |
| Features: Access Control List (ACL) support , ARP support , Auto-negotiation , Auto-sensing per device , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Broadcast Storm Control , DHCP snooping , DiffServ support , Dynamic IP address assignment , Dynamic Trunking |
| Protocol (DTP) support , IGMP snooping , IPv6 support , Layer 2 switching , Link Aggregation Control Protocol (LACP) , Load balancing , MAC Address Notification , Multicast Storm Control , Multiple Spanning Tree Protocol (MSTP) support , PoE+ , Port Aggregation Protocol (PAgP) support , Port Security , Power over Ethernet (PoE) , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , Remote Switch Port Analyzer (RSPAN) , Syslog support , Unicast Storm Control , VLAN support |
| Form Factor: Rack-mountable , Rack-mountable |
| MAC Address Table Size: 8K entries |
| Manageable: Yes |
| Ports Qty: 48 |
| Power Over Ethernet (PoE): PoE |
| Remote Management Protocol: HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2 , SNMP 2c , SNMP 3 , SSH , Telnet , TFTP |
| Status Indicators: Link activity , Port duplex mode , Port status , Port transmission speed , Power , System |
| Subcategory: Network hubs and switches |
| Subtype: Gigabit Ethernet |
| Switching Protocol: Ethernet |
| Type: Switch |
| Bay Required |
| Type: None |
| Dimensions & Weight |
| Depth: 15.2 in |
| Height: 1.8 in |
| Weight: 12.72 lbs |
| Width: 17.5 in |
| Environmental Parameters |
| Humidity Range Operating: 10 - 95% (non-condensing) |
| Humidity Range Storage: 10 - 95% (non-condensing) |
| Max Operating Temperature: 104 °F |
| Max Storage Temperature: 158 °F |
| Min Operating Temperature: 23 °F |
| Min Storage Temperature: -13 °F |
| Flash Memory |
| Installed Size: 64 MB |
| Type: Flash |
| Header |
| Brand: Cisco |
| Compatibility: PC |
| Manufacturer: Cisco Systems |
| Model: 2960S-48LPD-L |
| Packaged Quantity: 1 |
| Product Line: Cisco Catalyst |
| Interface Provided |
| Comments: PoE |
| Connector Type: RJ-45 |
| Interface: Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty: 48 |
| Connector Type: Type A |
| Qty: 1 |
| Type: USB |
| Comments: Management |
| Connector Type: Mini-USB Type B |
| Interface: Console |
| Interface: Ethernet 10Base-T/100Base-TX |
| Connector Type: SFP+ |
| Qty: 2 |
| Miscellaneous |
| Authentication Method: RADIUS , Secure Shell (SSH) , TACACS+ |
| Compliant Standards: BSMI CNS 13438 Class A , CB , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 , EMC , EN 60950-1 , EN55024 , FCC Part 15 B Class A , GOST , IEC 60950-1 , MIC , NOM , RoHS 5/6 , TUV GS , UL 60950-1 Second Edition , VCCI Class A ITE |
| Encryption Algorithm: SSL |
| Height (Rack Units): 1 |
| MTBF: 198,300 hours |
| Rack Mounting Kit: Optional |
| Performance |
| Type: Switching capacity |
| Value: 176 Gbps |
| Type: Forwarding performance (64-byte packet size) |
| Value: 101.2 Mpps |
| Ports |
| Qty: 48 |
| Type: 10/100/1000 (PoE) |
| Ports (3rd) |
| Qty: 2 |
| Type: 10 Gigabit SFP+ |
| Power Device |
| Frequency Required: 50/60 Hz |
| Nominal Voltage: AC 120/230 V |
| Power Consumption Operational: 71 Watt |
| Type: Internal power supply |
| RAM |
| Installed Size: 128 MB |
| Service |
| Support Details Full Contract Period: Lifetime |
| Support Details Service Included: Replacement |
| Support Details Type: Limited warranty |
| Support Details Full Contract Period: 5 years |
| Support Details Type: New releases update |
| Service & Support |
| Type: Limited lifetime warranty |
| Service & Support Details |
| Response Time: Next business day |
| Component (Networking): Power supply and fans |
| Slot Provided |
| Free Qty: 1 |
| Total Qty: 1 |
| Type: Stacking Module slot |
| Slot Required |
| Type: None |
| Software |
| Type: Cisco IOS LAN Base |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
