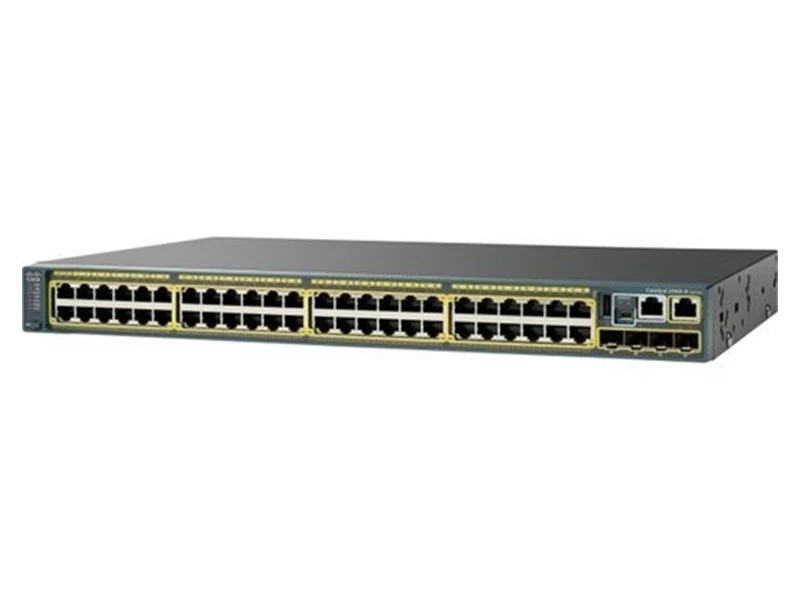

Cisco Catalyst 2960S F48FPS L 10/100 PoE Switch
Teknik Özellikler
| General |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 48 x 10/100 + 4 x SFP |
| Power Over Ethernet (PoE) |
| PoE+ |
| Capacity |
| Virtual interfaces (VLANs): 255 |
| Jumbo Frame Support |
| 9216 bytes |
| Authentication Method |
| RADIUS, Secure Shell (SSH), TACACS+ |
| Authentication Method |
| Secure Shell (SSH), RADIUS, TACACS+ |
| Power Over Ethernet (PoE) |
| PoE+ |
| Status Indicators |
| Port status, link activity, port transmission speed, port duplex mode, system |
| Jumbo Frame Support |
| 9216 bytes |
| Manufacturer |
| Cisco |
| Camera |
| Installed Size |
| 64 MB |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 50/60 Hz |
| Type |
| internal power supply |
| Networking |
| Subcategory |
| network hubs and switches |
| Subtype |
| Gigabit Ethernet |
| Form Factor |
| desktop, rack-mountable |
| Type |
| switch |
| Stackable |
| stackable |
| Features |
| ARP support, Access Control List (ACL) support, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Strict Priority Queuing (SPQ), Broadcast Storm Control, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X), layer 2 switching, Cisco Fast EtherChannel, DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, IGMP snooping, Link Aggregation Control Protocol (LACP), Multicast Storm Control |
| Compliant Standards |
| IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP) |
| Jumbo Frame Support |
| 9216 bytes |
| Ports Qty |
| 48 |
| Manageable |
| Yes |
| Remote Management Protocol |
| CLI, HTTP, RMON 2, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet |
| Power Over Ethernet (PoE) |
| PoE+ |
| Miscellaneous |
| MTBF |
| 260000 sec |
| Height (Rack Units) |
| 1 m |
| Interface Provided |
| Interface |
| Ethernet 10Base-T/100Base-TX |
| Qty |
| 1, 4, 48 |
| Connector Type |
| RJ-45, SFP (mini-GBIC) |
| RAM |
| Installed Size |
| 128 MB |
| Environmental Parameters |
| Humidity Range Storage |
| 10 - 95% (non-condensing) |
| Min Operating Temperature |
| 23 °F |
| Max Operating Temperature |
| 113 °F |
| Min Storage Temperature |
| -13 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Operating |
| 10 - 95% (non-condensing) |
| Dimensions & Weight |
| Depth |
| 15.2 in |
| Width |
| 17.5 in |
| Height |
| 1.8 in |
| Weight |
| 13.01 lbs |
| Software |
| Type |
| Cisco IOS LAN Base |
| Service & Support |
| Type |
| limited lifetime warranty |
| Service & Support Details |
| Type |
| limited warranty |
| Full Contract Period |
| lifetime |
| Ports |
| Type |
| 10/100 |
| Qty |
| 48 |
| Expansion Slots |
| Type |
| Stacking Module slot |
| Total Qty |
| 1 |
| Free Qty |
| 1 |
| Ports (2nd) |
| Type |
| SFP (mini-GBIC) |
| Qty |
| 4 |
| Performance |
| Type |
| forwarding performance, switching capacity |
| Value |
| 176 Gbps, 88 Gbps |
| Capacity |
| Type |
| virtual interfaces (VLANs) |
| Value |
| 255 |
| General |
| Manufacturer |
| Cisco |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
Yönetilebilirlik : Yönetilebilir
