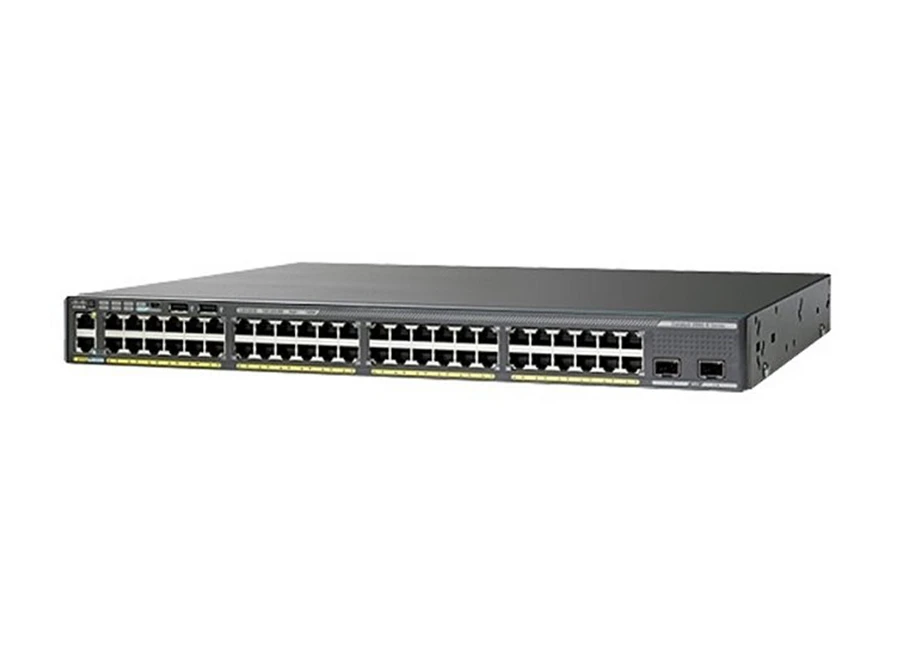

Cisco Catalyst 2960XR 48FPS I PoE Switch
Teknik Özellikler
| WS-C2960XR-48FPS-I | |
| Enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 740W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80G |
| Forwarding Performance | 107.1Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | - Per-port status: Link integrity, disabled, activity, speed, and full duplex |
| - System status: System, RPS, PoE, Stack link status, link duplex, and link speed | |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 FlexStack-Plus slot and 1 power redundant slot |
| Stack Modules | C2960X-STACK |
| Stacking cable | - CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length |
| - CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length | |
| - CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length | |
| Power supply | PWR-C2-250WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.89kVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 16 Inches (40.8 cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 14.7 Pounds (6.7Kg) |
| Package Weight | 38.56 Pounds (17.49Kg) |
| Rack Mounting Kit | Optional |
| MTBF in hours | 230,86 |
| Compliant Standards | - IEEE 802.1D Spanning Tree Protocol |
| - IEEE 802.1p CoS Prioritization | |
| - IEEE 802.1Q VLAN | |
| - IEEE 802.1s | |
| - IEEE 802.1w | |
| - IEEE 802.1X | |
| - IEEE 802.1ab (LLDP) | |
| - IEEE 802.3ad | |
| - IEEE 802.3af and IEEE 802.3at | |
| - IEEE 802.3ah (100BASE-X single/multimode fiber only) | |
| - IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | |
| - IEEE 802.3 10BASE-T | |
| - IEEE 802.3u 100BASE-TX | |
| - IEEE 802.3ab 1000BASE-T | |
| - IEEE 802.3z 1000BASE-X | |
| - RMON I and II standards | |
| - SNMP v1, v2c, and v3 | |
| - IEEE 802.3az | |
| - IEEE 802.3ae 10Gigabit Ethernet | |
| - IEEE 802.1ax | |
| System software / license | |
| System software | IOS IP Lite |
| license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| features | - IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub) |
| - Advanced IP unicast routing protocols (OSPF for Routed Access) | |
| - EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite. | |
| - Equal-cost routing | |
| - Policy-based routing (PBR) | |
| - Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) | |
| - Protocol Independent Multicast (PIM) | |
| Network security | - MAC-based VLAN assignment enables - Cisco TrustSec uses |
| - Comprehensive 802.1X - IPv6 First-Hop Security | |
| - Device Sensor and Device Classifier - Cisco Trust Anchor Technology | |
| - Cisco Threat Defense - Private VLANs | |
| - Unicast Reverse Path Forwarding (uRPF) - Multidomain Authentication | |
| - Access Control Lists (ACLs) - Switched Port Analyzer (SPAN) | |
| - Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) | |
| - TACACS+ and RADIUS authentication - MAC Address Notification | |
| - Multilevel security on console access BPDU Guard | |
| - Spanning Tree Root Guard (STRG) - IGMP filtering | |
| Management & Troubleshooting | - Auto-MDOX -TDR - UDLD - IP SLA Responder |
| - layer 2 / IP Traceroute - SPAN - RSPAN | |
| - Express Setup - Device Manager - Cisco Network Assistant | |
| - Smartports + Advisor - Troubleshooting Advisor - Drag-and-drop Cisco IOS Upgrade | |
| - IP Address DHCP - Autoinstall with saved configuration - Configuration Replace | |
| - DHCP Auto Image Upgrade - DHCP Port Based Allocation - Error Disable MIB | |
| Technical Support and Services | - Cisco SMARTnet Service - Cisco Smart Foundation Service - Cisco Smart Care Service |
| - Cisco SP Base Service - Cisco Focused Technical Support Services | |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113º (-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to 40ºC) |
| Short-term exception at sea level* | 23ºF to 131ºF (-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF (-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF (-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF (-25º to 70ºC) |
| Operating altitude | Up to 10,000 (Up to 3000 Meters) |
| Storage altitude | Up to 13,000 (Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
