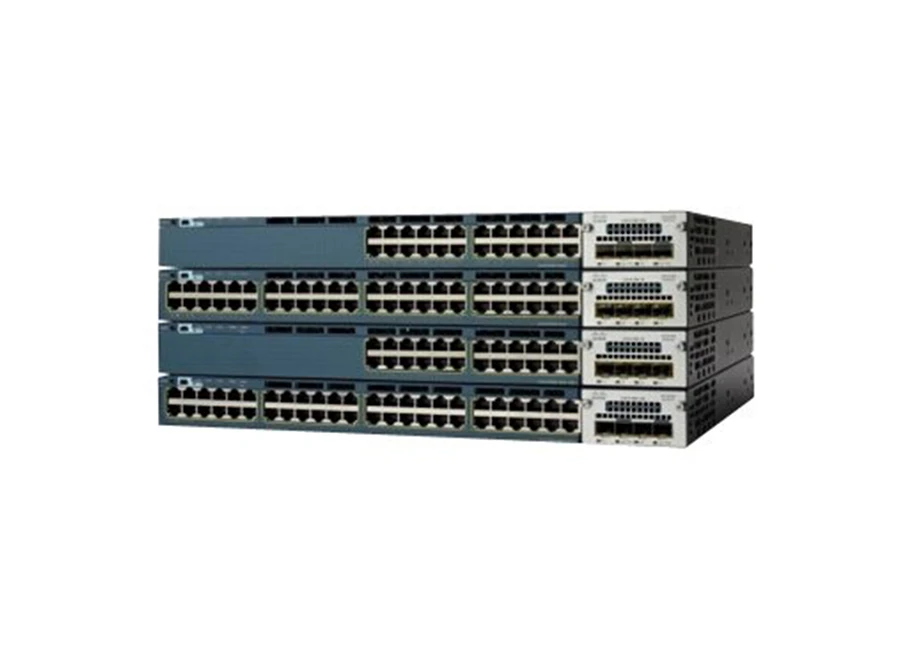

Cisco Catalyst 3560X 48U L PoE Switch

Özellikler

Product Description

Cisco Catalyst 3560X-48U-L - switch - 48 ports - managed - rack-mountable

Device Type

Switch - 48 ports - managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (UPOE)

Power Over Ethernet (PoE)

UPOE

PoE Budget

800 W

Performance

Switching fabric bandwidth: 160 Gbps ¦ Forwarding performance: 101.2 Mpps

Capacity

Virtual interfaces (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000

Jumbo Frame Support

9216 bytes

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

Features

Hot swap module replacement, layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az

Power

AC 120/230 V (50/60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

17.5 in x 19.5 in x 1.8 in

Weight

16.75 lbs

Pricing Type

Refurbished

Manufacturer Warranty

Limited lifetime warranty

Teknik Özellikler

Miscellaneous
Rack Mounting Kit	Included
MTBF	189,710 hours
Compliant Standards	NEBS level 3, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1
Pricing Type	Refurbished
Dimensions & Weight
Width	17.5 in
Depth	19.5 in
Height	1.8 in
Weight	16.75 lbs
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature	23 °F
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
General
Device Type	Switch - 48 ports - managed
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	800 W
Performance	Switching fabric bandwidth: 160 Gbps ¦ Forwarding performance: 101.2 Mpps
Capacity	Virtual interfaces (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000
Jumbo Frame Support	9216 bytes
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Hot swap module replacement, layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az
RAM	256 MB
Flash Memory	64 MB
Status Indicators	Port status, port transmission speed, port duplex mode, power, system, link/activity
Expansion / Connectivity
Interfaces	48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x mini-USB console - mini-USB Type B - Type B management ¦ 1 x console RS-232 - RJ-45 - RJ-45 ¦ 1 x 100Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 management
Expansion Slots	1 (total) / 1 (free) x expansion slot
Power
Power Device	Internal power supply
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	122.06 Watt
Features	Redundant Power System (RPS) connector
Software / System Requirements
Software Included	Cisco IOS LAN Base
