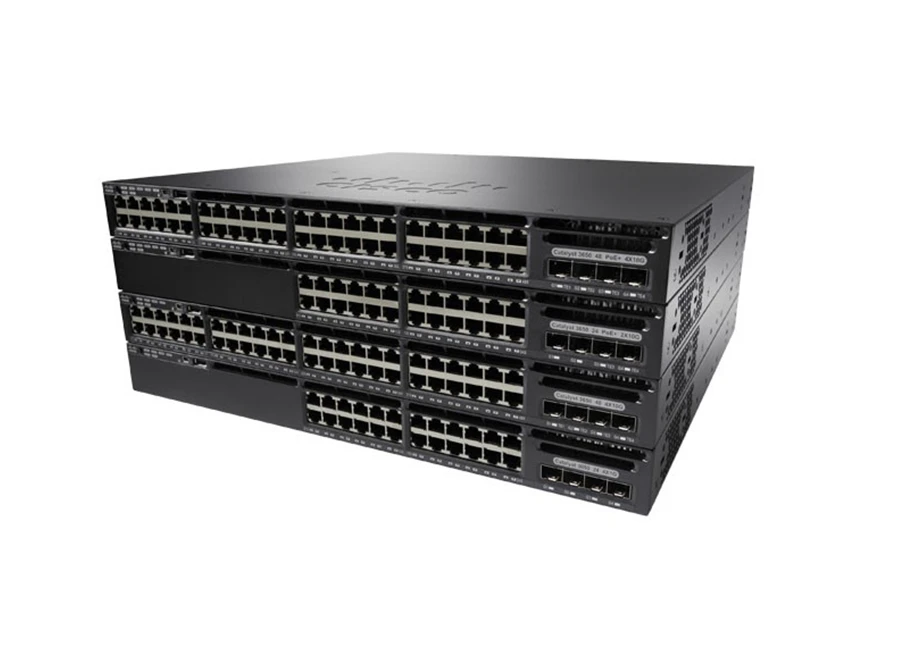

Cisco Catalyst 3650 12X48UQ L PoE Switch

Teknik Özellikler

WS-C3650-12X48UQ-L
Capacity
Type Virtual interfaces (VLANs)
Value 4094
Dimensions & Weight
Width 17.5 in
Depth 19.1 in
Height 1.7 in
Weight 16.71 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 96% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Flash Memory
Installed Size 4 GB
Header
Compatibility PC
Manufacturer Cisco Systems
Packaged Quantity 1
Product Line Cisco Catalyst
Model 3650-12X48UQ-L
Brand Cisco
Interface Provided
Qty 4
Type Management (mini-USB)
Connector Type Type B
Comments Management
PoE Power 60 W
Miscellaneous
Rack Mounting Kit Included
Compliant Standards BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, KN22 Class A, KN24, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A
Authentication Method Kerberos, RADIUS, Secure Shell (SSH), TACACS+
MTBF 203,130 hours
Height (Rack Units) 1
Color Category Black
Networking
Type Switch
Connectivity Technology Wired
Remote Management Protocol CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Status Indicators Active, PoE, Port duplex mode, Port transmission speed, Status, System
Ports Qty 48
Features Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cisco StackWise Technology, Class of Service (CoS), DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Flexible NetFlow (FNF), Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), LLDP support, MAC Address Notification, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
Routing Protocol BGP-4, EIGRP for IPv6, IS-IS, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IP routing
MAC Address Table Size 32000 entries
Stackable Stackable
Subcategory Network hubs and switches
Power Over Ethernet (PoE) UPOE
Advanced Switching Layer 3
Manageable Yes
Form Factor Desktop, Rack-mountable
Jumbo Frame Support 9198 bytes
Subtype Gigabit Ethernet
PoE Budget 660 W
Performance
Type Switching capacity
Value 272 Gbps
Ports
Qty 36
Type 10/100/1000 (UPOE)
Ports (2nd)
Qty 12
Type 100/1000/2.5G/5G/10G (UPOE)
Ports (3rd)
Qty 4
Type 10 Gigabit SFP+ (uplink)
Power Device
Frequency Required 50/60 Hz
Power Provided 1100 Watt
Installed Qty 1
Max Supported Qty 2
Nominal Voltage AC 120/230 V
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Type Internal power supply
Hot-Plug Hot-plug
RAM
Installed Size 4 GB
Service
Support Details Type Technical support
Support Details Service Included Phone consulting
Support Details Full Contract Period 90 days
Service & Support
Type Limited lifetime warranty
Service & Support Details
Response Time Next business day
Slot Provided
Type Stacking Module slot
Total Qty 1
Free Qty 1
Software
Type Cisco IOS LAN Base

pdfCisco Catalyst 3650 12X48UQ L PoE Switch Pdf Dosyası1.4 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 48 Port
PoE Güç Bütçesi : 400-800 Watt
