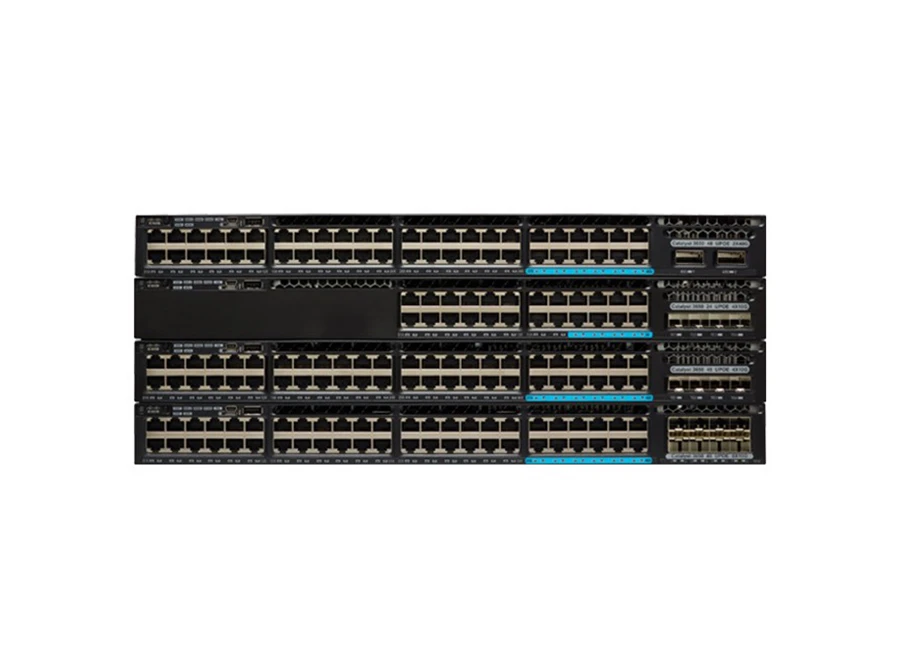

Cisco Catalyst 3650 48FQM E PoE Switch

Teknik Özellikler

WS-C3650-48FQM-E
General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 775 W
Performance Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Virtual interfaces (VLANs): 1000 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 4 x 10GBase-X SFP+ uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 975 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF 383,760 hours
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software Included Cisco IOS IP Services
Width 17.5 in
Depth 19.1 in
Height 1.7 in
Weight 17.2 lbs

pdfCisco Catalyst 3650 48FQM E PoE Switch Pdf Dosyası1.4 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 48 Port
PoE Güç Bütçesi : 400-800 Watt
