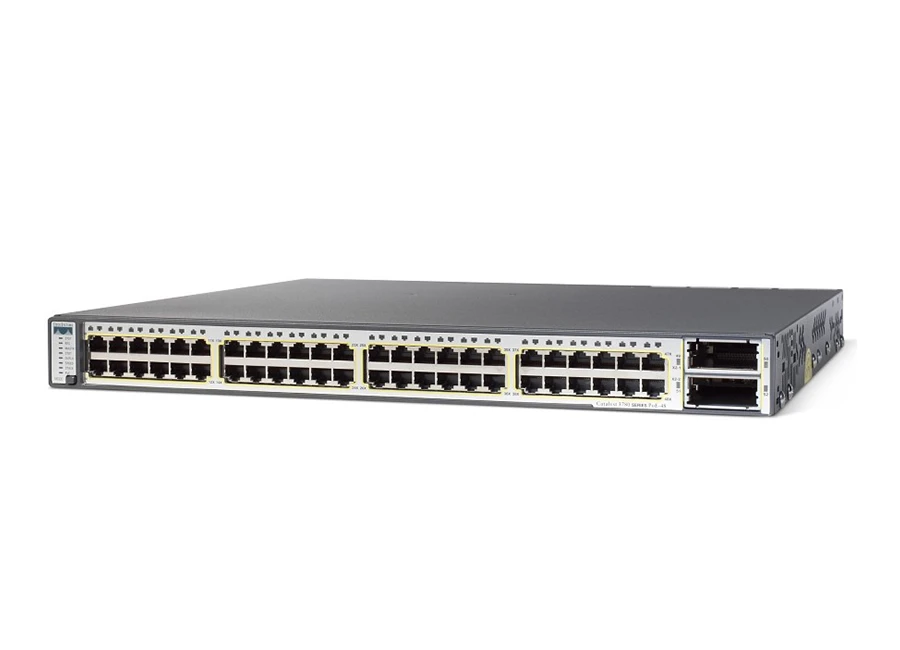

Cisco Catalyst 3750E 48PD S PoE Switch
Özellikler
- 48 10/100/1000 PoE ports + 2 X2-based 10 Gigabit Ethernet ports
- 64-Gbps, high-speed StackWise Plus stacking
- 160-Gbps wire rate, nonblocking switching fabric capacity
- Field-replaceable 750WAC power supply and fan tray
- 420W available for Cisco Enhanced PoE allowing > 15.4W for up to 24 ports
- 1 rack unit (RU) stackable multilayer switch
- IPv6
- IP Base software feature set (IPB)
Teknik Özellikler
WS-C3750E-48PD-S | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3750E-48PD-S |
Manufacturer Website Address | www.cisco.com |
Brand Name | Cisco |
Product Line | Catalyst |
Product Series | 3750-E |
Product Model | 3750E-48PD-S |
Product Name | Catalyst 3750-E 48-Port Multi-Layer Ethernet Switch with PoE |
Product Type | Layer 3 Switch |
Interfaces/Ports | |
Number of Ports | 48 |
Gigabit Ethernet Port | Yes |
Media & Performance | |
Connectivity Media | Category 5 UTP 100/1000Base-T |
Connectivity Media | Category 4 UTP 10Base-T |
Connectivity Media | Category 3 UTP 10Base-T |
Performance | 128Gbps Switching Fabric |
Performance | 101.2Mpps Forwarding Rate |
Performance | 68Gbps Backplane Speed |
Performance | 95Mpps Forwarding Rate For 64-byte Packet |
Performance | 64Gbps Stacking Bandwidth |
I/O Expansions | |
Number of Expansion Slots | 2 |
Expansion Slots | (2 Total) X2 Uplink |
Network & Communication | |
Layer Support | 3 |
Layer Support | 4 |
Layer Support | 2 |
Number of Stacks | 9 |
Management & Protocols | |
Manageable | Yes |
Management | Cisco IOS Software CLI |
Cisco Network Assistant | |
CiscoWorks LAN Management Solution (LMS) | |
IEEE 802.1Q VLAN | |
IEEE 802.1p QoS | |
Telnet Interface | |
SNMP v1, v3, v2c | |
Memory | |
Standard Memory | 256 MB |
Memory Technology | DRAM |
Flash Memory | 64 MB |
Software | |
Operating System | IP Base software feature set (IPB) |
Power Description | |
Input Voltage | 220 V AC |
Input Voltage | 110 V AC |
Input Voltage Range | 100 V AC to 240 V AC |
Power Source | AC Adapter |
Redundant Power Supply | Yes |
Physical Characteristics | |
Dimensions | 1.75" Height x 17.50" Width x 18.10" Depth |
Weight (Approximate) | 19.20 lb |
Miscellaneous | |
Package Contents | Catalyst 3750-E 48-Port Multi-Layer Ethernet Switch with PoE |
Documentation | |
AC Power Cord | |
Console Cable | |
StackWise Cable | |
Two 19-inch Mounting Brackets | |
Cable Guide | |
Four Rubber Mounting Feet | |
Power Cord Retainer | |
Four number-12 Phillips Machine Screws | |
Twelve number-8 Phillips Flat-Head Screws | |
One Black Phillips Machine Screw | |
Ground Lug Screw and Ring Terminal | |
Additional Information | 370W available for PoE allowing full 15.4W for up to 24 ports |
Field-replaceable 750WAC power supply and fan tray | |
IPv6 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 48 Port
PoE Güç Bütçesi : 400-800 Watt
