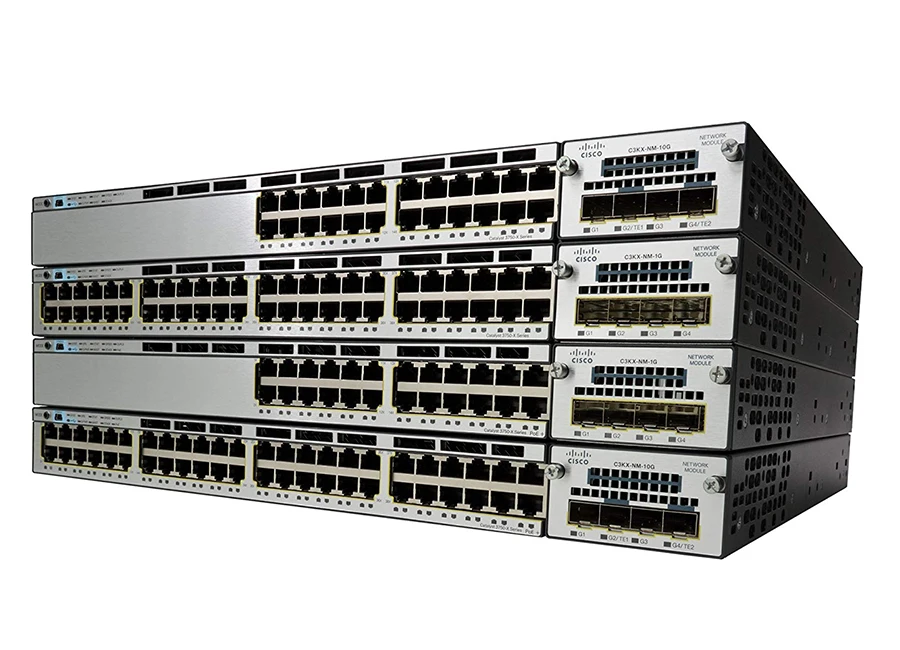

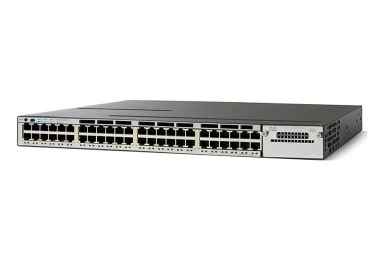

Cisco Catalyst 3750X 48U L PoE Switch

Teknik Özellikler

Device Type Switch - 48 ports - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 800 W
Performance Switching fabric bandwidth: 160 Gbps
Capacity Virtual interfaces (VLANs): 255
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), universal power over Ethernet (UPOE)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 49.5 cm x 4.45 cm
Weight 7.6 kg
Manufacturer Warranty Limited lifetime warranty
Extended Specification
General
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity Virtual interfaces (VLANs): 255
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
Device Type Switch - 48 ports - Managed - stackable
Enclosure Type Rack-mountable 1U
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), universal power over Ethernet (UPOE)
Flash Memory 128 MB
Jumbo Frame Support 9216 bytes
Max Units In A Stack 9
Performance Switching fabric bandwidth: 160 Gbps
PoE Budget 800 W
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
RAM 256 MB
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Status Indicators Port status, port transmission speed, port duplex mode, power, system, link/activity
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 49.5 cm
Height 4.45 cm
Weight 7.6 kg
Width 44.5 cm
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Storage Temperature 70 °C
Min Operating Temperature -5 °C
Min Storage Temperature -40 °C
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x Expansion Slot
Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management ¦ 2 x network stack device
Manufacturer Warranty
Service & Support Limited warranty - lifetime ¦ Limited warranty - power supply and fans - 5 years ¦ New releases update
Miscellaneous
Compliant Standards TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
MTBF 139,913 hours
Rack Mounting Kit Included
Power
Features Redundant Power System (RPS) connector
Installed Qty 1 (installed) / 2 (max)
Power Device Internal power supply
Power Provided 1.1 kW
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included Cisco IOS LAN Base

pdfCisco Catalyst 3750X 48U L PoE Switch Pdf Dosyası504.95 KB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 48 Port
PoE Güç Bütçesi : 400-800 Watt
