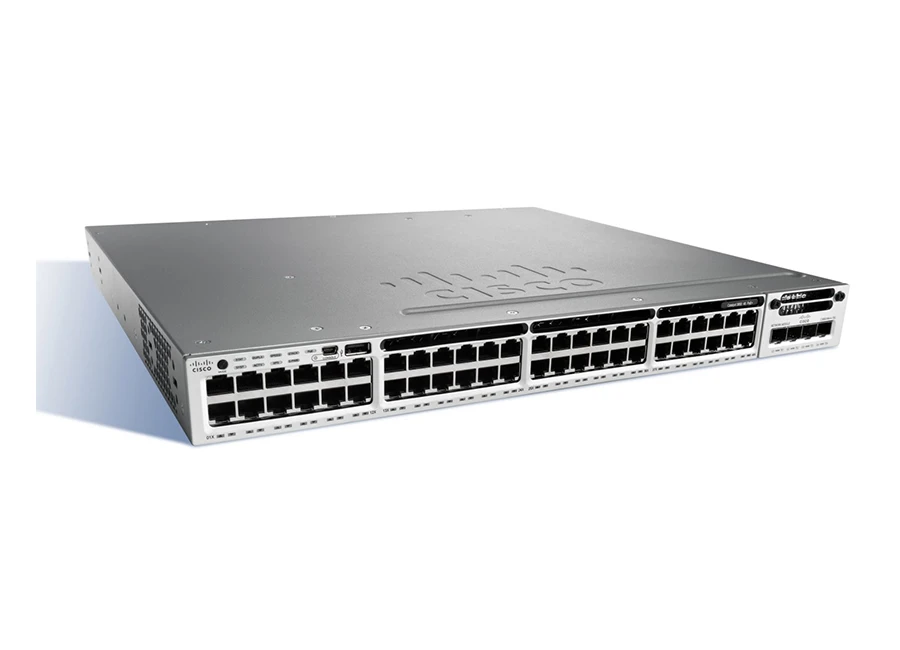

Cisco Catalyst 3850 48P E PoE Switch

Teknik Özellikler

WS-C3850-48P-E
model info:	WS-C3850-48P-E
enclosure type	Rack-mountable - 1U
Ports	48 x 10/100/1000 (POE+)
Network management Interface	- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
	- Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	435W
Switching Capacity	176Gbps
Maximum stacking number	up to 9 switches with same IOS feature set in same series
Stack Bandwidth	480Gbps
Forwarding Performance	130.95Mpps
FNF (Flexible NetFlow) entries	48,000 flows
Maximum VLANs IDs	4
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 40Gbps
Supported Aironet AP series	3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	- C3850-NM-4-1G: 4 x 1G uplinks network module
	- C3850-NM-4-10G: 4 x 10G uplinks network module
	-C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable	-STACK-T1-50CM StackWise stacking cable with a 0.5 m length
	-STACK-T1-1M StackWise stacking cable with a 1.0 m length
	-STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	-CAB-SPWR-30CM stack power cable with a 30CM length
	-CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-715WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	135.96 (Max)
Miscellaneous
Width	17.5 Inches (44.5 cm)
Depth	17.7 Inches (44.5 Cm)
Height	1.75 Inches (4.45 cm)
Weight	17.4 Pounds (7.9Kg)
Rack Mounting Kit	optional
MTBF in hours	241,05
Compliant Standards	- IEEE 802.1D Spanning Tree Protoco
	- IEEE 802.1p CoS Prioritization
	- IEEE 802.1Q VLAN
	- IEEE 802.1s
	- IEEE 802.1w
	- IEEE 802.1X
	- IEEE 802.1X-Rev
	-IEEE 802.11
	- IEEE 802.1ab (LLDP)
	- IEEE 802.3ad
	- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
	- IEEE 802.3 10BASE-T
	- IEEE 802.3u 100BASE-TX
	- IEEE 802.3ab 1000BASE-T
	- IEEE 802.3z 1000BASE-X
	- RMON I and II standards
	- SNMP v1, v2c, and v3
	-IEEE 802.3af and IEEE 802.3at
System software / license
System software	IOS IP Services
EnergyWise license	ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses	-L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
	-L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
	-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
	-LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Features	-EEM - RPS Support - IP service-level agreements (SLAs) - Advanced IP unicast routing protocols - Jumbo Frames
	- VLANS -Voice Vlan -VTPv2 -CDPv2 -LLDP - 802.3ad LACP and PAgP - PVST/PVST+ - 802.1W/802.1S
	-Port Fast/Uplink Fast -Dynamic Trunking Protocol (DTP) - port CoS Trust and Override - Trusted Boundary
	- ACL Classification -ingress Policing - Auto QoS - Per VLAN policies - 802.1p queues - Scheduling - Priority
	Queuing - Configure CoS Priority Queues -Configure CoS Priority Queues - Configure Queue Weights - Configure
	Buffers and Thresholds -Class & Policy Maps - Modify CoS and DSCP Mapping - Weighted Tail Drop - IGMPv1,v2,v3
	and MLDv1, v2 - DHCP server - DSCP transparency - HSRP, VRRP, BLGP - RIPv1, v2 EIGRP, PIM OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4 - VRF-lite - PIM-SM/DM, PIM sparse-dense mode, SSM - Flexible Netflow
Advanced Network security	- Port security - DHCP snooping -Dynamic ARP inspection (DAI) - IP source guard -The Unicast Reverse Path Forwarding (uRPF)
	- Bidirectional data support on a SPAN - User authentication
	- Private VLAN -Router and VLAN ACLs - complete identity and security
	- Multidomain authentication - MAC address notification
	- IGMP filtering - Cisco security VLAN ACL
	- Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
	- Port-based ACLs - TrustSec SXP - IEEE 802.1ae
	- TACACS+ and RADIUS authentication - Cisco standard and extended IP security router ACLs
	- Bridge protocol data unit (BPDU) Guard
	- Spanning Tree Root Guard (STRG) - Wireless end-to-end security
Technical Support and Services	- Cisco SMARTnet Service - Cisco Smart Foundation Service - Cisco SP Base Service - Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure	23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m)	23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m)	23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m)	23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m)	23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m)	23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m)	23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure	23ºF to 113ºF (-5ºC to +45º)
Storage environment	-40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude	Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude	Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
