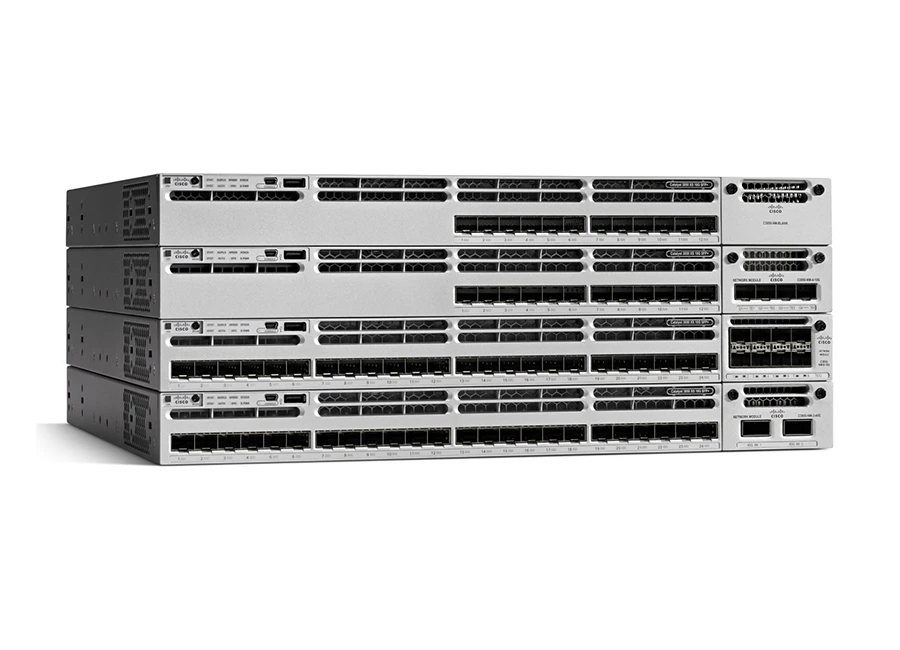

Cisco Catalyst 3850 48PW S PoE Switch
Teknik Özellikler
| Specification | |
| model info: | WS-C3850-48PW-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) |
| Network management Interface | -Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
| -Management console port: RJ-45-to-DB9 cable for PC connections | |
| Available PoE Power | 435W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 130.95Mpps |
| FNF (Flexible NetFlow) entries | 48,000 flows |
| Maximum VLANs IDs | 1000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | -C3850-NM-4-1G: 4 x 1G uplinks network module |
| -C3850-NM-4-10G: 4 x 10G uplinks network module | |
| -C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module | |
| Stacking cable | -STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
| -STACK-T1-1M StackWise stacking cable with a 1.0 m length | |
| -STACK-T1-3M StackWise stacking cable with a 3.0 m length | |
| Stack Power Cable (recommended) | -CAB-SPWR-30CM stack power cable with a 30CM length |
| -CAB-SPWR-150CM stack power cable with a 150CM length | |
| Power supply | PWR-C1-715WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 135.96 (Max) |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.7 Inches (44.5 Cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 17.4 Pounds (7.9Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 241,05 |
| Compliant Standards | -IEEE 802.1D Spanning Tree Protoco |
| -IEEE 802.1p CoS Prioritization | |
| -IEEE 802.1Q VLAN | |
| -IEEE 802.1s | |
| -IEEE 802.1w | |
| -IEEE 802.1X | |
| -IEEE 802.1X-Rev | |
| -IEEE 802.11 | |
| -IEEE 802.1ab (LLDP) | |
| -IEEE 802.3ad | |
| -IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | |
| -IEEE 802.3 10BASE-T | |
| -IEEE 802.3u 100BASE-TX | |
| -IEEE 802.3ab 1000BASE-T | |
| -IEEE 802.3z 1000BASE-X | |
| -RMON I and II standards | |
| -SNMP v1, v2c, and v3 | |
| -IEEE 802.3af and IEEE 802.3at | |
| System software / license | |
| System software | IOS IP Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Software license | -C3850-48-S-E: IP Base to IP Services RTU paper license |
| -L-C3850-48-S-E: IP Base to IP Services RTU electronic license | |
| Access Point Licenses | -5 Access Point licenses bundled |
| -L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) | |
| -L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) | |
| -LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) | |
| -LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) | |
| Features | -RPS Support -IP service-level agreements (SLAs) -Advanced IP unicast routing protocols -Jumbo Frames |
| -VLANS -Voice Vlan -VTPv2 -CDPv2 -LLDP -802.3ad LACP and PAgP -PVST/PVST+ -802.1W/802.1S | |
| -Port Fast/Uplink Fast -Dynamic Trunking Protocol (DTP) -port CoS Trust and Override -Trusted Boundary | |
| -ACL Classification -ingress Policing -Auto QoS -Per VLAN policies -802.1p queues -Scheduling -Priority | |
| Queuing -Configure CoS Priority Queues -Configure CoS Priority Queues -Configure Queue Weights -Configure | |
| Buffers and Thresholds -Class & Policy Maps -Modify CoS and DSCP Mapping -Weighted Tail Drop -IGMPv1,v2,v3 | |
| and MLDv1, v2 -DHCP server -DSCP transparency -HSRP, VRRP, BLGP -RIPv1, v2 EIGRP, PIM OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4 -VRF-lite -PIM-SM/DM, PIM sparse-dense mode, SSM -Flexible Netflow | |
| Advanced Network security | -Port security -DHCP snooping -Dynamic ARP inspection (DAI) -IP source guard -The Unicast Reverse Path Forwarding (uRPF) |
| -Bidirectional data support on a SPAN -User authentication | |
| -Private VLAN -Router and VLAN ACLs -complete identity and security | |
| -Multidomain authentication -MAC address notification | |
| -IGMP filtering -Cisco security VLAN ACL | |
| -Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) | |
| -Port-based ACLs -TrustSec SXP -IEEE 802.1ae | |
| -TACACS+ and RADIUS authentication -Cisco standard and extended IP security router ACLs | |
| - Bridge protocol data unit (BPDU) Guard | |
| -Spanning Tree Root Guard (STRG) -Wireless end-to-end security | |
| Technical Support and Services | -Cisco SMARTnet Service -Cisco Smart Foundation Service -Cisco SP Base Service -Cisco Focused Technical Support Services |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
