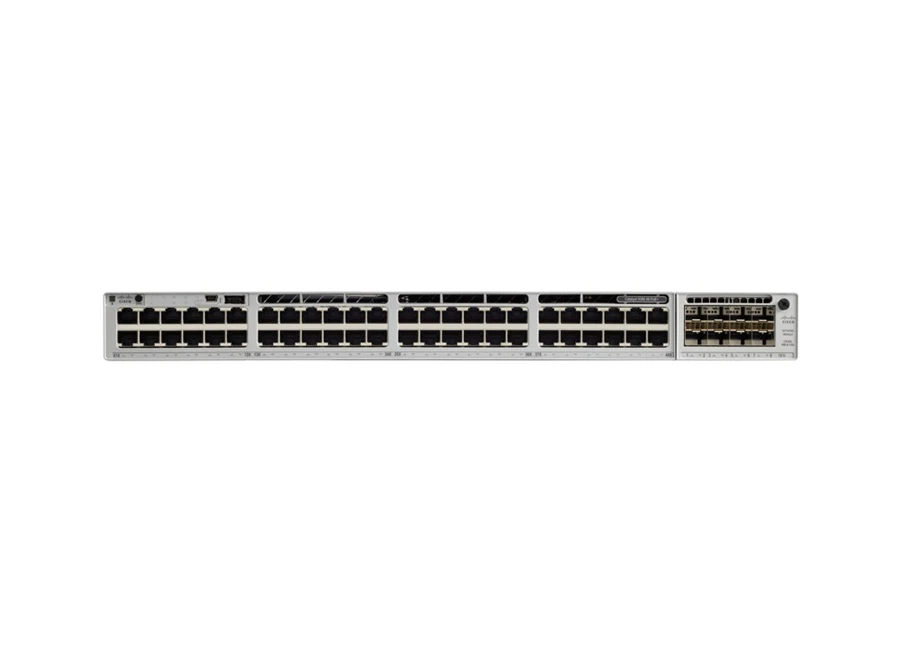

Cisco Catalyst 9300 48P A PoE Switch

Teknik Özellikler

C9300-48P-A Specification
Part Number C9300-48P-A
Product Description Catalyst 9300 48-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48 POE+
Default AC power supply 715W AC
Available PoE power 437W
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-715WAC
Switching capacity 256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32
IPv6 routing entries 16
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299
Safety certifications -  UL 60950-1
-  CAN/CSA-C222.2 No. 60950-1
-  EN 60950-1
-  IEC 60950-1
-  AS/NZS 60950.1
-  IEEE 802.3
Electromagnetic emissions certifications -  47 CFR Part 15
-  CISPR22 Class A
-  EN 300 386 V1.6.1
-  EN 55022 Class A
-  EN 55032 Class A
-  CISPR 32 Class A
-  EN61000-3-2
-  EN61000-3-3
-  ICES-003 Class A
-  TCVN 7189 Class A
-  V-3 Class A
-  CISPR24
-  EN 300 386
-  EN55024
-  TCVN 7317
Environmental Reduction of Hazardous Substances (ROHS) 5

pdfCisco Catalyst 9300 48P A PoE Switch Pdf Dosyası1.35 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 48 Port
PoE Güç Bütçesi : 400-800 Watt
