Açıklama

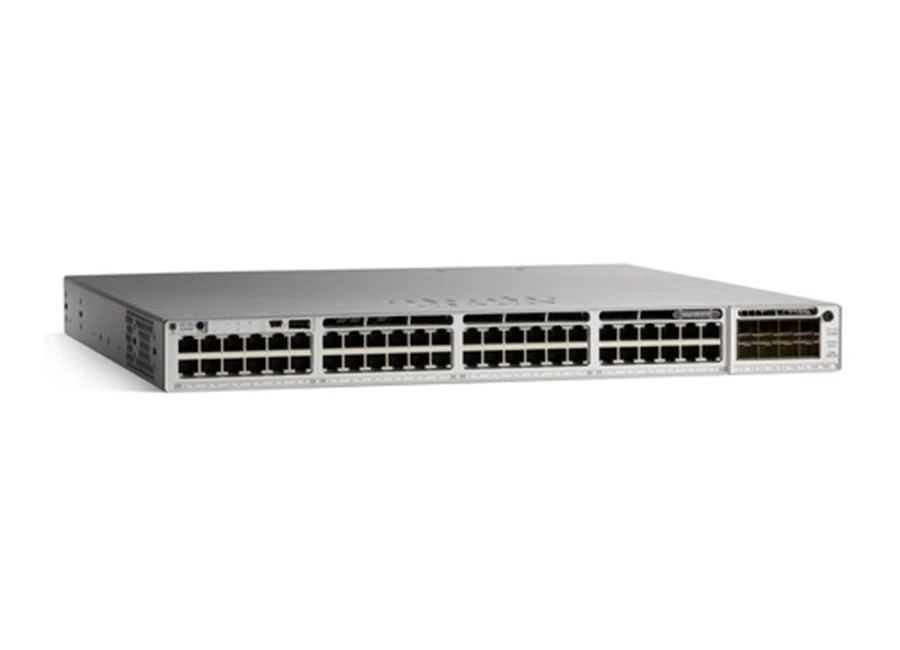

Cisco Catalyst 9300 48U A PoE Switch
Özellikler
- Switch – 48 ports – L3 – managed – stackable
- Rack-mountable 1U
- Gigabit Ethernet
- 48 x 10/100/1000
Teknik Özellikler
| Part Number | C9300-48U-A |
| Product Description | Catalyst 9300 48-port UPOE, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 48 Cisco UPOE |
| Default AC power supply | 1100W AC |
| Available PoE power | 822W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-1100WAC |
| Switching capacity | 256 Gbps on 48-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32 |
| IPv6 routing entries | 16 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299 |
| Safety certifications | - UL 60950-1 |
| - CAN/CSA-C222.2 No. 60950-1 | |
| - EN 60950-1 | |
| - IEC 60950-1 | |
| - AS/NZS 60950.1 | |
| - IEEE 802.3 | |
| Electromagnetic emissions certifications | - 47 CFR Part 15 |
| - CISPR22 Class A | |
| - EN 300 386 V1.6.1 | |
| - EN 55022 Class A | |
| - EN 55032 Class A | |
| - CISPR 32 Class A | |
| - EN61000-3-2 | |
| - EN61000-3-3 | |
| - ICES-003 Class A | |
| - TCVN 7189 Class A | |
| - V-3 Class A | |
| - CISPR24 | |
| - EN 300 386 | |
| - EN55024 | |
| - TCVN 7317 | |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
