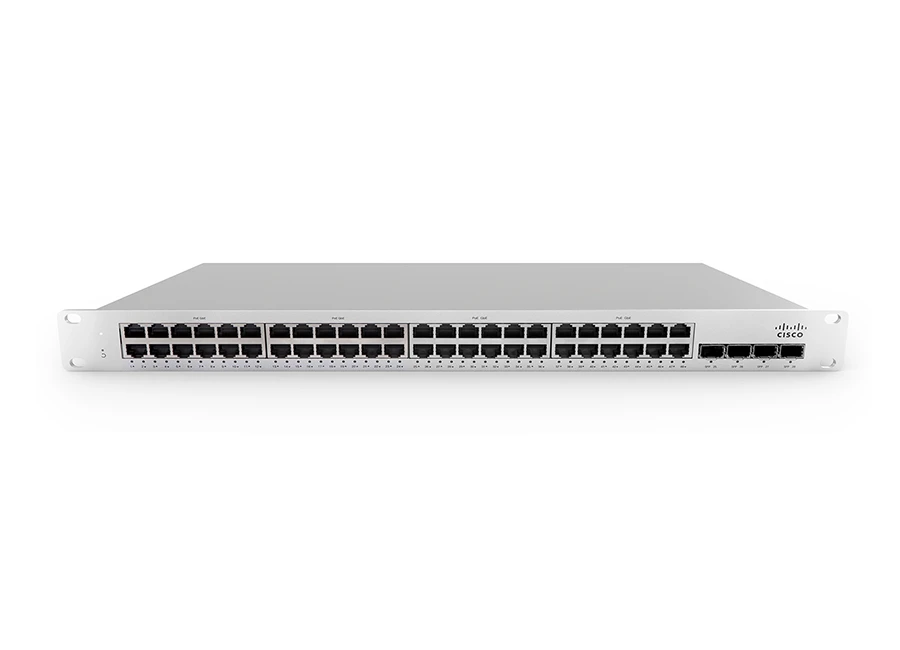

Cisco Meraki MS350 48LP HW PoE Switch

Teknik Özellikler

MS350-48LP-HW
Interfaces • 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and autoMDIX3
• 4 x SFP+ 10G uplink
• 2 x stacking ports
Switching capacity 176 Gbps
Stacking Bandwidth 160G (dual interface)
Forwarding rate 127.98 mpps
Available PoE+ Power 370 W
Idle / Full Load Power 63 / 478 W
Power Supply Configuration Hot-swappable
Optional Redundant Power Supply 2 x 640W PSU
What’s included 1 x Power Supply (MA-PWR-640WAC), Mounting screw kit,
1 x Stacking Cable (0.5m),
2 x Pre-Installed Fans
Dimensions 1.74” x 19.08” x 20.4” (4.44cm x 48.46cm x 51.81cm)
Weight 13.82 lb (6.27 kg)
Management • Managed via the Web with the Meraki cloud management platform
• Integrated with Meraki Wireless and complete portfolio of IT products and solutions
• Zero-touch remote provisioning (no staging needed)
• Detailed historical per-port and per-client usage statistics
• DHCP, client, and hostname fingerprinting
• SNMPd and SYSLOG support for integration with other network management solutions
• Automatic firmware upgrades with scheduling control
Layer 3 • Static routing, OSFPv2
• Multicast routing
• Warm Spare (VRRP)
• DHCP Relay, DHCP Server
Remote Diagnostics • Email, SMS and Mobile push notification alerts
• Cable testing and link failure detection with alerting
• Live remote packet capture
• Dynamic and interactive network discovery and topology
• Combined event and configuration change logs with instant search
Power • Power input: 100 - 240 VAC, 47-63 Hz
• Power consumption: 56 - 888W
Stacking • Physical stacking of up to 8 switches with 160 Gbps stack bandwidth on all models
• Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Mounting • 1U Rack-mountable with included rack mount hardware
• 2-post front mounting options available
Ethernet Switching Capabilities • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
• 802.1Q VLAN and trunking support for up to 4,094 VLANs
• 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
• Broadcast storm control
• 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
• 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
• Port mirroring
IGMP snooping for multicast filtering
• MAC forwarding entries: 32K
Environment • Operating temperature: -5°C to 50°C
• Humidity: 5 to 95% non-condensing
• Variable speed fans
Regulatory • CSA-US (US, Canada)
• FCC (USA)
• IC (Canada)
• CE (Europe)
• RCM (Australia/New Zealand)
• RoHS
Security • Integrated two-factor authentication for Dashboard management
• Role-based access control (RBAC) with granular device and configuration control
• Corporate wide password policy enforcement
• IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
• Multi-Domain/Multi-Host/Multi Authentication
• Port security: Sticky MAC, MAC whitelisting
• DHCP snooping, detection and blocking, Dynamic ARP Inspection
• STP Enhancements: BPDU guard, Root guard, Loop guard
• IPv4 and IPv6 ACLs
MTBF Ratings 536

pdfCisco Meraki MS350 48LP HW PoE Switch Pdf Dosyası229.95 KB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 48 Port
PoE Güç Bütçesi : 400-800 Watt
