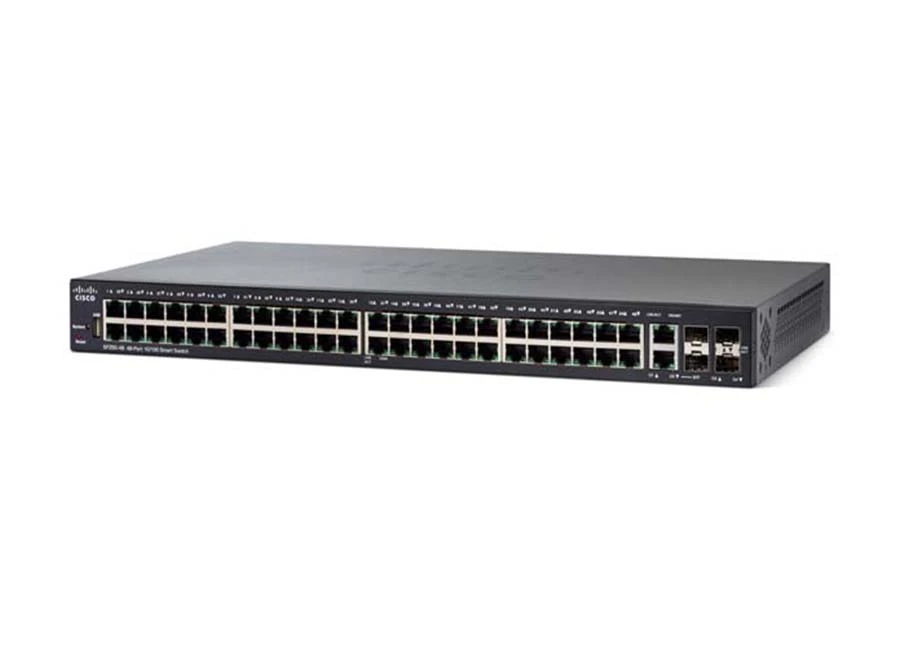

Cisco SF250 48HP PoE Switch

Teknik Özellikler

Performance
Switching capacity and forwarding rate All switches are wire-speed and nonblocking	Product Name	Capacity in mpps (64-byte packets)	Switching Capacity (Gbps)
	SF250-48	13.10	17.6
	SF250-48HP	13.10	17.6
	SG250-10P	14.88	20.0
	SG250-26	38.69	52.0
	SG250-26HP	38.69	52.0
	SG250-26P	38.69	52.0
Layer 2 Switching
Spanning Tree Protocol	Standard 802.1d spanning tree support
	Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
	8 instances are supported
	Multiple Spanning Tree instances using 802.1s (MSTP)
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
	Up to 4 groups
	Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG
VLAN	Support for up to 256 active VLANs simultaneously
	Port-based and 802.1Q tag-based VLANs
	Management VLAN
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network-wide zero touch deployment of voice endpoints and call control devices.
IGMP (versions 1, 2, and 3) snooping	Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 1K multicast groups (source-specific multicasting is also supported)
HOL blocking	Head-of-line (HOL) blocking.
Security
Secure Sockets Layer (SSL)	SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
IEEE 802.1X (Authenticator role)	RADIUS authentication, MD5 hash, single/multiple host mode, and single/multiple sessions.
Secure Sensitive Data (SSD)	A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user.
Port security	Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses.
RADIUS	Supports RADIUS authentication for management access. Switch functions as a client.
Storm control	Broadcast, multicast, and unknown unicast.
DoS prevention	Denial-of-service (DOS) attack prevention
Quality of Service
Priority levels	4 hardware queues
Scheduling	Strict Priority and weighted round-robin (WRR)
Class of service	Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; trusted QoS Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
Rate limiting	Ingress policer, per VLAN, per port
Standards
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
IPv6
IPv6	IPv6 host mode
	IPv6 over Ethernet
	Dual IPv6/IPv4 stack
	IPv6 neighbor and router discovery (ND)
	IPv6 stateless address autoconfiguration
	Path maximum transmission unit (MTU) discovery
	Duplicate address detection (DAD)
	Internet Control Message Protocol (ICMP) version 6
	IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
	USGv6 and IPv6 Gold Logo certified
IPv6 QoS	Prioritize IPv6 packets in hardware
Multicast Listener Discovery (MLD v1/2) snooping	Deliver IPv6 multicast packets only to the required receivers
IPv6 applications	Web/SSL, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), Remote Authentication Dial-In User Service (RADIUS), Syslog, DNS client, DHCP Client, DHCP Autoconfig
IPv6 RFC supported	RFC 4443 (which obsoletes RFC 2463) - ICMPv6
	RFC 4291 (which obsoletes RFC 3513) - IPv6 Address Architecture
	RFC 4291 - IP Version 6 Addressing Architecture
	RFC 2460 - IPv6 Specification
	RFC 4861 (which obsoletes RFC 2461) - Neighbor Discovery for IPv6
	RFC 4862 (which obsoletes RFC 2462) - IPv6 Stateless Address Auto-configuration
	RFC 1981 - Path MTU Discovery
	RFC 4007 - IPv6 Scoped Address Architecture
	RFC 3484 - Default address selection mechanism
	RFC 5214 (which obsoletes RFC 4214) - ISATAP tunneling
	RFC 4293 - MIB IPv6: Textual Conventions and General Group
	RFC 3595 - Textual Conventions for IPv6 Flow Label
Management
Web user interface	Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring.
SNMP	SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Standard MIBs	lldp-MIB	rfc2665-MIB
	lldpextdot1-MIB	rfc2668-MIB
	lldpextdot3-MIB	rfc2737-MIB
	lldpextmed-MIB	rfc2925-MIB
	rfc2674-MIB	rfc3621-MIB
	rfc2575-MIB	rfc4668-MIB
	rfc2573-MIB	rfc4670-MIB
	rfc2233-MIB	trunk-MIB
	rfc2013-MIB	tunnel-MIB
	rfc2012-MIB	udp-MIB
	rfc2011-MIB	draft-ietf-bridge-8021x-MIB
	RFC-1212	draft-ietf-bridge-rstpmib-04-MIB
	RFC-1215	draft-ietf-hubmib-etherif-mib-v3-00-MIB
	SNMPv2-CONF	draft-ietf-syslog-device-MIB
	SNMPv2-TC	ianaaddrfamnumbers-MIB
	p-bridge-MIB	ianaifty-MIB
	q-bridge-MIB	ianaprot-MIB
	rfc1389-MIB	inet-address-MIB
	rfc1493-MIB	ip-forward-MIB
	rfc1611-MIB	ip-MIB
	rfc1612-MIB	RFC1155-SMI
	rfc1850-MIB	RFC1213-MIB
	rfc1907-MIB	SNMPv2-MIB
	rfc2571-MIB	SNMPv2-SMI
	rfc2572-MIB	SNMPv2-TM
	rfc2574-MIB	RMON-MIB
	rfc2576-MIB	rfc1724-MIB
	rfc2613-MIB	dcb-raj-DCBX-MIB-1108-MIB
		rfc1213-MIB
		rfc1757-MIB
Private MIBs	CISCOSB-lldp-MIB	CISCOSB-ip-MIB
	CISCOSB-brgmulticast-MIB	CISCOSB-iprouter-MIB
	CISCOSB-bridgemibobjects-MIB	CISCOSB-ipv6-MIB
	CISCOSB-bonjour-MIB	CISCOSB-mnginf-MIB
	CISCOSB-dhcpcl-MIB	CISCOSB-lcli-MIB
	CISCOSB-MIB	CISCOSB-localization-MIB
	CISCOSB-wrandomtaildrop-MIB	CISCOSB-mcmngr-MIB
	CISCOSB-traceroute-MIB	CISCOSB-mng-MIB
	CISCOSB-telnet-MIB	CISCOSB-physdescription-MIB
	CISCOSB-stormctrl-MIB	CISCOSB-PoE-MIB
	CISCOSBssh-MIB	CISCOSB-protectedport-MIB
	CISCOSB-socket-MIB	CISCOSB-rmon-MIB
	CISCOSB-sntp-MIB	CISCOSB-rs232-MIB
	CISCOSB-smon-MIB	CISCOSB-SecuritySuite-MIB
	CISCOSB-phy-MIB	CISCOSB-snmp-MIB
	CISCOSB-multisessionterminal-MIB	CISCOSB-specialbpdu-MIB
	CISCOSB-mri-MIB	CISCOSB-banner-MIB
	CISCOSB-jumboframes-MIB	CISCOSB-syslog-MIB
	CISCOSB-gvrp-MIB	CISCOSB-TcpSession-MIB
	CISCOSB-endofmib-MIB	CISCOSB-traps-MIB
	CISCOSB-dot1x-MIB	CISCOSB-trunk-MIB
	CISCOSB-deviceparams-MIB	CISCOSB-tuning-MIB
	CISCOSB-cli-MIB	CISCOSB-tunnel-MIB
	CISCOSB-cdb-MIB	CISCOSB-udp-MIB
	CISCOSB-brgmacswitch-MIB	CISCOSB-vlan-MIB
	CISCOSB-3sw2swtables-MIB	CISCOSB-ipstdacl-MIB
	CISCOSB-smartPorts-MIB	CISCOSB-eee-MIB
	CISCOSB-tbi-MIB	CISCOSB-ssl-MIB
	CISCOSB-macbaseprio-MIB	CISCOSB-digitalkeymanage-MIB
	CISCOSB-env_mib-MIB	CISCOSB-qosclimib-MIB
	CISCOSB-policy-MIB	CISCOSB-digitalkeymanage-MIB
	CISCOSB-sensor-MIB	CISCOSB-tbp-MIB
	CISCOSB-aaa-MIB	CISCOSMB-MIB
	CISCOSB-application-MIB	CISCOSB-secsd-MIB
	CISCOSB-bridgesecurity-MIB	CISCOSB-draft-ietf-entmib-sen sor-MIB
	CISCOSB-copy-MIB	CISCOSB-draft-ietf-syslog-device-MIB
	CISCOSB-CpuCounters-MIB	CISCOSB-rfc2925-MIB
	CISCOSB-Custom1BonjourService-MIB	CISCO-SMI-MIB
	CISCOSB-dhcp-MIB	CISCOSB-DebugCapabilities-MIB
	CISCOSB-dlf-MIB	CISCOSB-CDP-MIB
	CISCOSB-dnscl-MIB	CISCOSB-vlanVoice-MIB
	CISCOSB-embweb-MIB	CISCOSB-EVENTS-MIB
	CISCOSB-fft-MIB	CISCOSB-sysmng-MIB
	CISCOSB-file-MIB	CISCOSB-sct-MIB
	CISCOSB-greeneth-MIB	CISCO-TC-MIB
	CISCOSB-greeneth-MIB	CISCO-VTP-MIB
	CISCOSB-interfaces-MIB	CISCO-CDP-MIB
	CISCOSB-interfaces_recovery-MIB
Remote monitoring (RMON)	Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack	Coexistence of both protocol stacks to ease migration
Firmware upgrade	Web browser upgrade (HTTP/HTTPS) and TFTP and SCP
Port mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port.
VLAN mirroring	Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port.
DHCP (Options 12, 66, 67, 82, 129, and 150)	DHCP options facilitate tighter control from a central point (DHCP server), to obtain IP address, autoconfiguration (with configuration file download), DHCP Relay, and host name.
Autoconfiguration	Enables secure mass deployment with protection of sensitive data
Text-editable config files	Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports	Simplified configuration of QoS and security capabilities
Auto Smartports	Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments.
Cloud services	Support for Cisco Active Advisor
Localization	Localization of GUI and documentation into multiple languages
Login banner	Configurable multiple banners for web as well as CLI
Other management	Traceroute; single IP management; HTTP/HTTPS; RADIUS; port mirroring; TFTP upgrade; DHCP client; Simple Network Time Protocol (SNTP); cable diagnostics; Ping; syslog; automatic time settings from Management Station.
Power Efficiency
Energy Detect	Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up.
Cable length detection	Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE compliant (802.3az)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports.
Disable port LEDs	LEDs can be manually turned off to save on energy.
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes.
MAC table	8K addresses.
Discovery
Bonjour	The switch advertises itself using the Bonjour protocol.
LLDP (802.1ab) with LLDP-MED extensions	Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol (CDP)	The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol.
Auto Smartports	Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero-touch deployments.
Ports
Model Name	Total System Ports	RJ-45 Ports	Combo Ports (RJ-45 + SFP)
SF250-48	48 Fast Ethernet + 2 Gigabit Ethernet	48 Fast Ethernet	2 Gigabit Ethernet combo + 2 SFP
SF250-48HP	48 Fast Ethernet + 2 Gigabit Ethernet	48 Fast Ethernet	2 Gigabit Ethernet combo + 2 SFP
SG250-10P	10 Gigabit Ethernet	8 Gigabit Ethernet	2 Gigabit Ethernet combo
SG250-26	26 Gigabit Ethernet	24 Gigabit Ethernet	2 Gigabit Ethernet combo
SG250-26HP	26 Gigabit Ethernet	24 Gigabit Ethernet	2 Gigabit Ethernet combo
SG250-26P	26 Gigabit Ethernet	24 Gigabit Ethernet	2 Gigabit Ethernet combo
Product Specifications
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
CPU memory	512 MB
Package Contents	Cisco 250 Series Smart Switch
	Power cord (power adapter for 10-port SKUs)
	Mounting Kit
	Quick Start Guide
Minimum Requirements	Web browser: Mozilla Firefox version 36 or later; Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later
	Category 5 Ethernet network cable
	TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
Packet buffer
All numbers are aggregate across all ports, as the buffers are dynamically shared:
Model Name	Packet Buffer
SF250-48	24Mb
SF250-48HP	24Mb
SG250-10P	12Mb
SG250-26	12Mb
SG250-26HP	12Mb
SG250-26P	12Mb
Supported SFP/SFP+ Modules
SKU	Media	Speed	Maximum Distance
MGBBX1	Single-mode fiber	100 Mbps	10 km
MGBSX1	Multimode fiber	100 Mbps	500 km
MGBLH1	Single-mode fiber	100 Mbps	40 km
MGBLX1	Single-mode fiber	100 Mbps	10 km
MGBT1	UTP cat 5	100 Mbps	100 m
Environmental
Power	100–240V 50–60 Hz, internal, universal – SF250-48, SF250-48HP, SG250-26, SG250-26HP, SG250-26P
	100–240V 50–60 Hz, external – SG250-10P
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	32° to 122°F (0° to 50°C)
Storage temperature	-4° to 158°F (-20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Unit Dimensions (W x H x D)
SF250-48	440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SF250-48HP	440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in)
SG250-10P	280 x 44 x 170 mm (11.0 x 1.45 x 6.69 in)
SG250-26	440 x 44 x 202 mm (17.3 x 1.45 x 7.95 in)
SG250-26HP	440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250-26P	440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
Unit weight
SF250-48	3.57 kg (7.87 lb)
SF250-48HP	4.93 kg (10.87 lb)
SG250-10P	1.2 kg (2.65 lb)
SG250-26	2.72 kg (6.0 lb)
SG250-26HP	3.37 kg (7.43 lb)
SG250-26P	3.81 kg (8.40 lb)
Acoustic noise and mean time between failures (MTBF)
Model Name	Fan (Number)	Acoustic Noise	MTBF at 40°C (Hours)
SF250-48	No fan	N/A	256,281.25
SF250-48HP	2	°C to 30°C: 38.0dB	286,555.77
		50°C: 52.7dB
SG250-10P	No fan	N/A	205,647.00
SG250-26	No fan	N/A	343,592.66
SG250-26HP	1	°C to 30°C: 37.5dB	333,792.21
		50°C: 49.7dB
SG250-26P	2	°C to 30°C: 36.0dB	430,341.06
		50°C: 53.7dB
Warranty	Limited lifetime
Power over Ethernet (PoE)
Switches support 802.3at PoE+, 802.3af, 802.3xx 60W, and Cisco prestandard (legacy) PoE. Maximum power of 60W to any 10/100 or Gigabit Ethernet port for PoE+ supported devices and 15.4W for PoE supported devices, until the PoE budget for the switch is reached. The total power available for PoE per switch is as follows:
802.3af PoE, 802.3at PoE+, and 802.3xx 60W power are delivered over any of the RJ-45 ports within the listed power budgets	Model Name	Power Dedicated to PoE	Number of Ports That Support PoE
	SF250-48HP	195W	48
	SG250-10P	62W	8
	SG250-26HP	100W	24
	SG250-26P	195W	24
PoE powered device and PoE passthrough
	In addition to AC power, compact switch models can work as PoE powered devices and be powered by PoE switches connected to the uplink ports. The switch can also pass through the power to downstream PoE end devices if required.
	Maximum of 60W can be drawn per uplink port if the peer PoE switch supports 60W PoE. When multiple uplink ports are connected to PoE switches, the power drawn from these ports is combined.
	When AC power is connected and functioning properly, it will have priority over the PoE powered device function. The PoE powered device function will then act as a backup power source to the AC power. The PoE powered device function will be the primary power source for the switch if AC power is not connected.
	Model	Power Option	Available PoE Power (W)	Can Switch Be Powered with Uplinks?
	SG250-10P	1 PoE uplink	0W	Yes
		2 PoE uplink	0W	Yes
		1 PoE+ uplink	0W	Yes
		2 PoE+ uplink	22W	Yes
		1 60W PoE uplink	22W	Yes
		2 60W PoE uplink	50W	Yes
		AC power	62W	Yes
Model	Green Power (mode)	System Power Consumption	Power Consumption (with PoE)	Heat Dissipation (BTU/hr)
SF250-48	EEE, Energy Detect	110V=23.4W	N/A	82.57
		220V=24.2W
SF250-48HP	EEE, Energy Detect	110V=43.1W	110V=265.2W	904.90
		220V=44.3W	220V=255.8W
SG250-10P	EEE, Energy Detect, Short Reach	110V=13.25W	110V=85.19W	290.68
		220V=13.42W	220V=84.17W
SG250-26	EEE, Energy Detect, Short Reach	110V=18.1W	N/A	64.49
		220V=18.9W
SG250-26HP	EEE, Energy Detect, Short Reach	110V=23.5W	110V=135.2W	461.32
		220V=24.4W	220V=133.9W
SG250-26P	EEE, Energy Detect, Short Reach	110V=34.2W	110V=262W	893.98
		220V=37.2W	220V=254.5W
