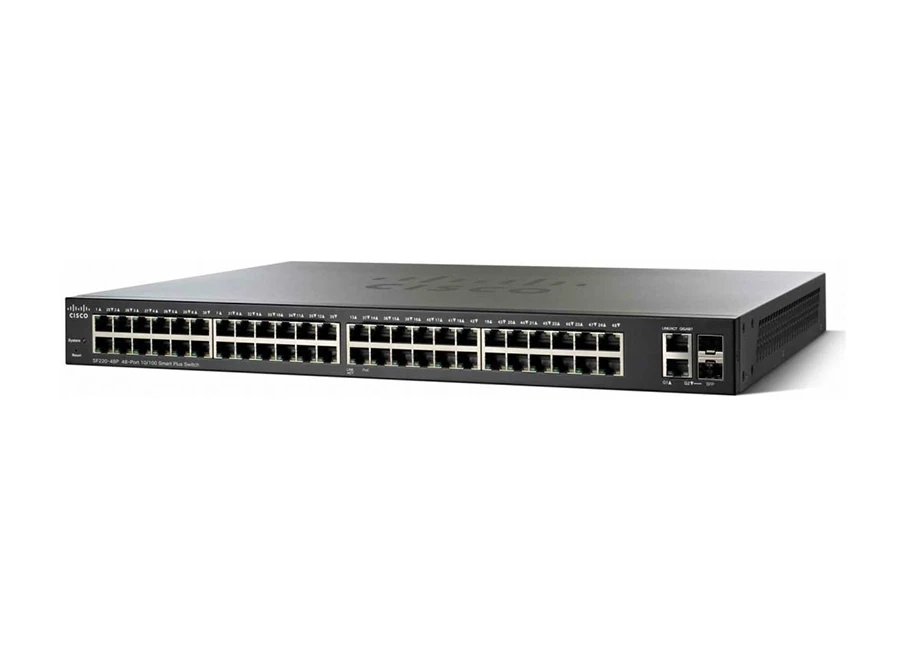

Cisco SF350 48P PoE Switch

Özellikler

Cisco Small Business SF350-48P - switch - 48 ports - Managed - rack-mountable
Device Type	Switch - 48 ports - L3 - Managed
Enclosure Type	Rack-mountable 1U
Subtype	Fast Ethernet
Ports	48 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	382 W
Performance	Switching capacity: 17.6 Gbps ¦ Forwarding performance (64-byte packet size): 13.1 Mpps
Capacity	Active VLANs: 4096
MAC Address Table Size	16K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	Static IPv4 routing, CIDR
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features	Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Power	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)	44 cm x 35 cm x 4.45 cm
Weight	5.59 kg
Localisation	United Kingdom
Manufacturer Warranty	Limited lifetime warranty
Extended Specification
General
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Capacity	Active VLANs: 4096
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Device Type	Switch - 48 ports - L3 - Managed
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	SSL
Features	Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer
Flash Memory	256 MB
Jumbo Frame Support	9216 bytes
MAC Address Table Size	16K entries
Performance	Switching capacity: 17.6 Gbps ¦ Forwarding performance (64-byte packet size): 13.1 Mpps
PoE Budget	382 W
Ports	48 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE+
RAM	512 MB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Routing Protocol	Static IPv4 routing, CIDR
Status Indicators	Link/activity
Subtype	Fast Ethernet
Dimensions & Weight
Depth	35 cm
Height	4.45 cm
Weight	5.59 kg
Width	44 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Humidity Range Storage	10 - 90% (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	48 x 100Base-TX RJ-45 PoE+ - 382 W ¦ 2 x 1000Base-T RJ-45/SFP ¦ 2 x 1000Base-T SFP ¦ 1 x console RJ-45 management ¦ 1 x USB management
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Miscellaneous
Cables Included	1 x power cable ¦ 1 x console cable
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localisation	United Kingdom
MTBF	182,270 hours
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
