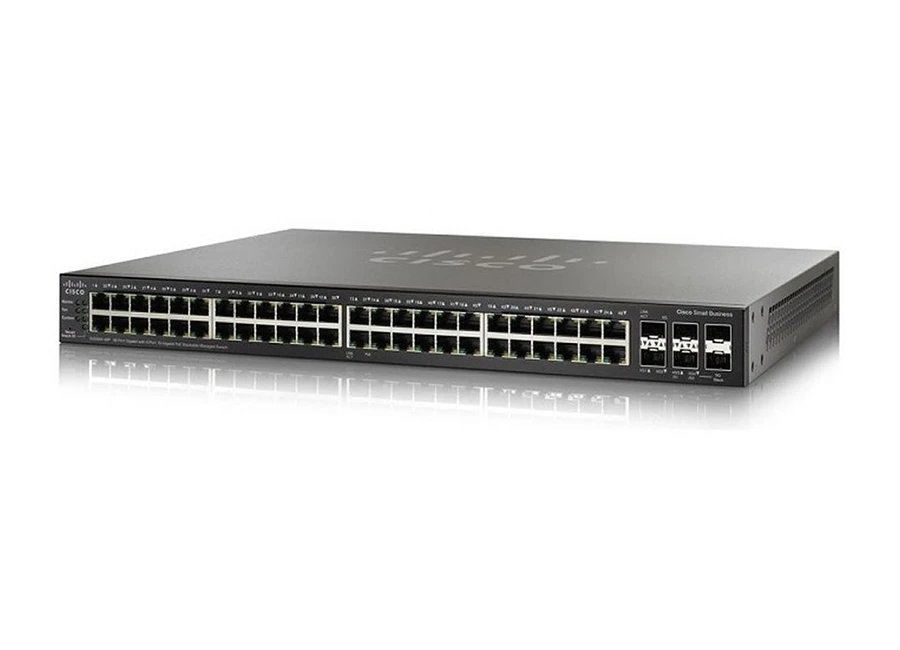

Cisco SG350X 48P PoE Switch

Teknik Özellikler

Cisco Small Business SG350X-48P - switch - 48 ports - Managed - rack-mountable
Device Type	Switch - 48 ports - Managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	382 W
Performance	Switching capacity (64-byte packet size): 130.94 Mpps ¦ Switching capacity: 176 Gbps
Capacity	MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ IPv6 routes (static): up to 6000 ¦ ACL entries: up to 2000
MAC Address Table Size	64K entries
Jumbo Frame Support	9000 bytes
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Remote Management Protocol	SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Features	Flow control, Layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 4 fans, Time-controlled ACLs support, 3MB packet buffer, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power	AC 120/230 V (47 - 63 Hz)
Dimensions (WxDxH)	44 cm x 45 cm x 4.4 cm
Weight	5.82 kg
Localisation	United Kingdom
Manufacturer Warranty	Limited lifetime warranty
Extended Specification
General
Authentication Method	RADIUS, TACACS, TACACS+
Capacity	MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ IPv6 routes (static): up to 6000 ¦ ACL entries: up to 2000
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Device Type	Switch - 48 ports - Managed - stackable
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	MD5, SSL
Features	Flow control, Layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 4 fans, Time-controlled ACLs support, 3MB packet buffer, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard
Flash Memory	256 MB
Jumbo Frame Support	9000 bytes
MAC Address Table Size	64K entries
Max Units In A Stack	4
Performance	Switching capacity (64-byte packet size): 130.94 Mpps ¦ Switching capacity: 176 Gbps
PoE Budget	382 W
Ports	48 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
Processor	X ARM: 800 MHz
RAM	512 MB
Remote Management Protocol	SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Status Indicators	System, link/speed, master, stack
Subtype	Gigabit Ethernet
Dimensions & Weight
Depth	45 cm
Height	4.4 cm
Weight	5.82 kg
Width	44 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Humidity Range Storage	10 - 90% (non-condensing)
Max Storage Temperature	70 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	32 x 1000Base-T RJ-45 30 W ¦ 16 x 1000Base-T RJ-45 60 W ¦ 2 x 10Gbit LAN RJ-45/SFP+ uplink ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x management (Gigabit LAN) ¦ 1 x USB Type A
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day
Miscellaneous
Cables Included	1 x serial cable
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2, USGv6
Localisation	United Kingdom
MTBF	164,614 hours
Rack Mounting Kit	Included
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (47 - 63 Hz)
