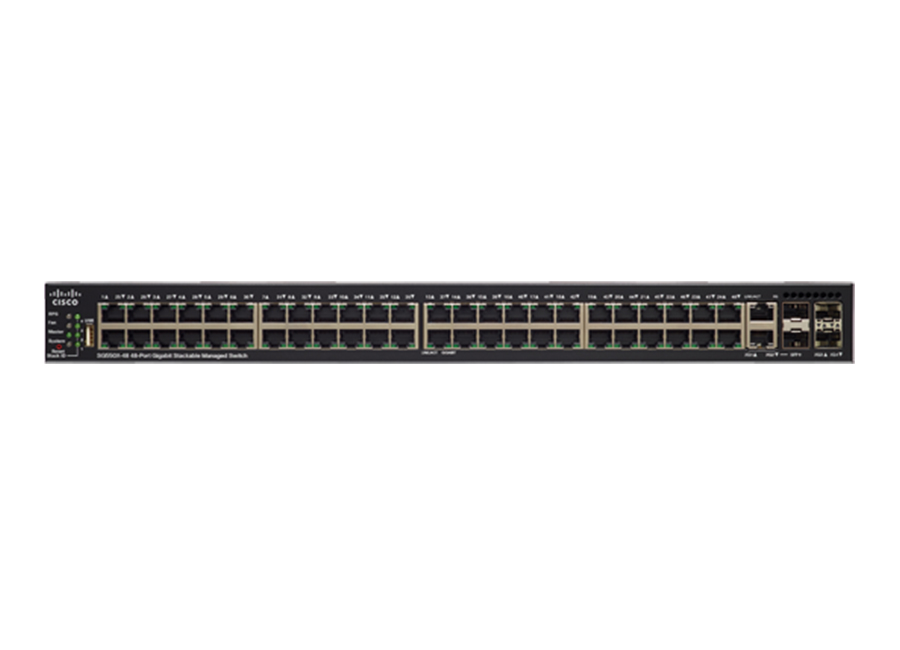

Cisco SG550X 48P PoE Switch

Teknik Özellikler

General
Device Type	Switch - 48 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 2 x combo 10GBase-T + 2 x SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	382 W
Performance	Forwarding performance (64-byte packet size): 130.94 Mpps ¦ Switching capacity: 176 Gbps
MAC Address Table Size	16K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Features	Flow control, Layer 2 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, LACP support, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP), 3MB packet buffer
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
RAM	256 MB
Flash Memory	32 MB
Status Indicators	Port transmission speed, system, PoE, link/activity
Expansion / Connectivity
Interfaces	48 x 1000Base-T RJ-45 60 W ¦ 2 x SFP+ ¦ 2 x 10GBase-T ¦ 1 x 1000Base-T RJ-45 management
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
MTBF	159,129 hours
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localisation	United Kingdom
Dimensions & Weight
Width	44 cm
Depth	35 cm
Height	4.4 cm
Weight	5.82 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1 year ¦ Technical support - web support - 1 year
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 - 90% (non-condensing)
