Açıklama

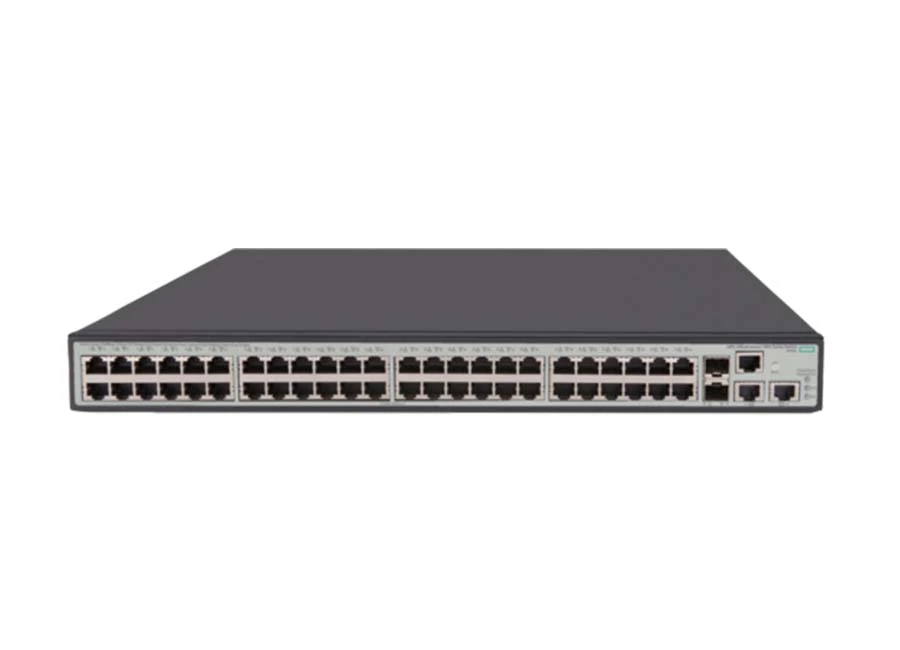

HPE 1950 48G JG963A PoE Switch
Özellikler
- Flexible 10GbE connections-10GBASE-T copper and SFP+ fiber-in an affordable, smart web-managed switch series.
- Four-high stacking can simplify network administration and add resiliency.
- Power over Ethernet models supporting up to 370 Watts total PoE+/PoE power.
- Customized operation using intuitive Web browser-based interface
- Limited lifetime warranty for unit, power, and fans.
Teknik Özellikler
Product Differentiator (long) |
Advanced smart web managed 48-port Gigabit PoE+ switch with 10G uplinks. This model has 48x 10/100/1000 PoE+/PoE enabled ports plus two 10GBASE T copper ports and two SFP+ ports for SFP+/SFP fiber connections. PoE power budget is 370 Watts. |
Power Consumption Description |
470 W (maximum) |
Input Voltage |
100 - 240 VAC, rated (depending on power supply chosen) |
Latency |
100 Mb Latency: < 5 µs 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 1.5 µs |
Routing/switching Capacity |
176 Gbps |
Throughput |
up to 130.9 Mpps |
PoE Capability |
370 W PoE+ |
Management Features |
IMC - Intelligent Management Center Limited command-line interface Web browser SNMP manager HTTPS RMON1 FTP Supported by HPE IMC and generic SNMP management platforms. Refer to documentation for MIB support details. |
Warranty Features |
Not applicable |
Detailed Product Description |
HPE OfficeConnect 1950 switch with 48 1GbE, power-over-Ethernet-plus ports, 2 SFP+ ports, and 2 10GbE ports |
Weight (imperial) |
15.43 lb |
Weight (metric) |
7 kg |
Product Dimensions (imperial) |
17.32 x 16.54 x 1.73 in |
Product Dimensions (metric) |
44 x 42 x 4.4 cm |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
PoE Port Sayısı : 48 Port
PoE Güç Bütçesi : 200-400 Watt
