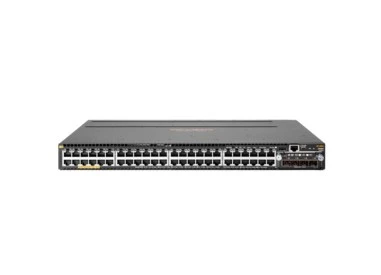

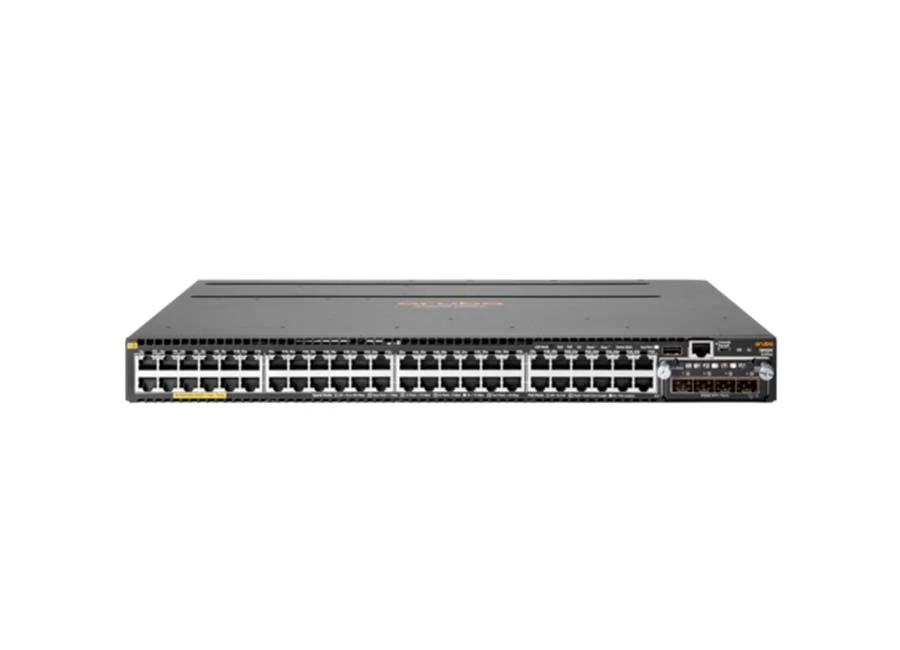

HPE Aruba 3810M 48G JL429A PoE Switch
Özellikler
- Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch JL429A
- Includes 1 3810M 48 Port PoE+ Switch (JL074A)
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports
- 4 fixed 1000/10000 SFP/SFP+ ports
- min=0 \ max=4 SFP/SFP+ Transceivers
- 1 open stacking module slot
- Includes 1 uplink module (JL083A)
- Includes 1 1050W Power Supply (JL087A, Max 2)
- 1U - Heigh
Teknik Özellikler
| Product Differentiator (long) |
| Scalable high-end campus access switch with 48x Gigabit PoE+ ports already together with a 4-port SFP+ module and a 1050W power supply. This model is a complete kit with 48x 10/100/1000 PoE+ ports and 1x 4-port SFP+ module (JL083A). Additionally it has 1x X372 54VDC 1050W Power Supply (JHL087A) and 1x fan tray (JL088A). Add a second power supply to achieve maximum PoE+ budget of 1440W. |
| Input Voltage |
| 100-240 VAC Depending on installed options, model and configuration |
| External I/O Ports |
| 48 10/100/1000 ports, maximum or 16 1/10GbE SFP+ ports, depending on model, all supporting MACSec 8 HPE Smart Rate Multi-Gigabit (1/2.5/5/10GBASE-T) ports, available on select model 2 open I/O module slots, maximum, depending on model PoE/PoE+ on selected models |
| Latency |
| 1000 Mb Latency: < 2.8 µs 10 Gbps Latency: < 1.8 µs 40 Gbps Latency: < 1.5 µs |
| Routing/switching Capacity |
| 320 Gbps |
| Switch Fabric Speed |
| 338 Gbps |
| Stacking Capabilities |
| Virtual 10 switches |
| Throughput |
| up to 190.5 Mpps |
| Memory and Processor |
| Dual ARM Coretex A9 @ 1 GHz 2 GB DDR3 SDRAM Packet buffer size: 13.5 MB Internal |
| PoE Capability |
| 1,440 W maximum, depending on configuration |
| Management Features |
| Aruba AirWave Network Management Aruba Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) In-line and out-of-band Out-of-band management (serial RS-232C or micro USB) |
| Warranty Standard Statement |
| Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Software releases: for details on the software releases available with your product purchase refer to www.hpe.com/networking/warrantysummary. |
| Weight (imperial) |
| 15.9 lbs |
| Weight (metric) |
| 7.21 kg |
| Product Dimensions (imperial) |
| 17.42 x 16.98 x 1.73 in |
| Product Dimensions (metric) |
| 44.25 x 43.13 x 4.39 cm |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
