Açıklama

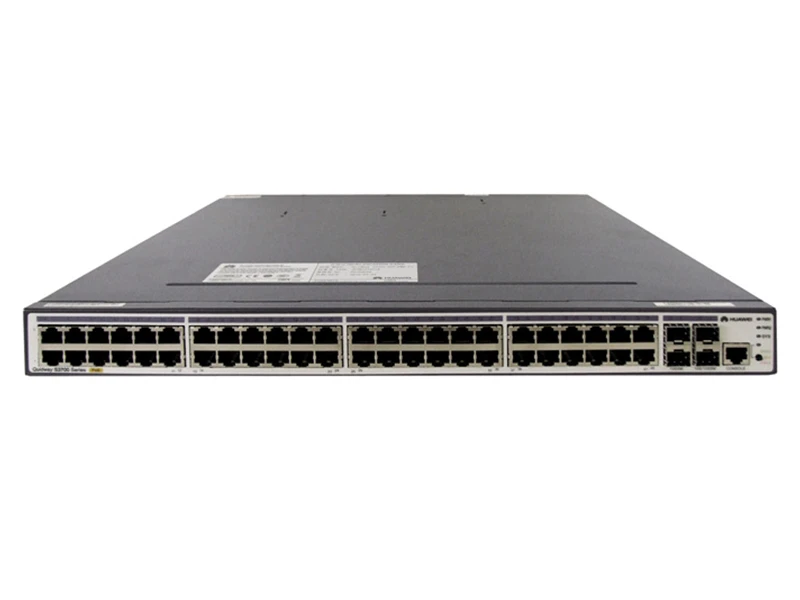

Huawei S3700 52P PWR EI 10/100 PoE Switch

Özellikler

48*10/100Base-TX ports, 2*100/1000Base-X SFP ports, 2*1000Base-X SFP ports
Layer 3 Ethernet Switch
Dual slots of power, without power module
Software: Enhanced Version
S3700-52P-PWR-EI supports multicast routing features and intelligent stacking (iStack)

Teknik Özellikler

Item	Description
Fixed port	4810/100Base-TX ports, 2100/1000Base-X SFP ports, 2*1000Base-X SFP ports
Forwarding performance	13.2 Mpps
MAC address table	Supports IEEE 802.1d compliance.
	Supports 16K MAC address entries.
	Supports MAC address learning and aging.
	Supports Static, dynamic, and blackhole MAC address entries.
	Packet filtering based on source MAC addresses
VLAN features	Supports 4K VLANs
	Supports Guest VLANs, voice VLAN, and super VLAN
	Supports VLAN assignment based on MAC addresses, protocols, and IP subnets
	Supports QinQ
	Supports Selective QinQ
	Supports 1:1 VLAN mapping
	Supports N:1 VLAN mapping
Reliability	Supports RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms
	Supports Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	Supports STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
	Supports BPDU protection, root protection and loop protection
	Supports Smart Ethernet Protection (SEP)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IP routing	Supports Static routing, RIPv1, RIPv2, and ECMP
IP routing	OSPF, IS-IS, and BGP
IPv6 features	Supports Neighbor Discovery (ND)
	Supports Path MTU (PMTU)
	Supports IPv6 ping, IPv6 tracert, and IPv6 Telnet
	Supports Manually configured tunnel
	Supports 6 to 4 tunnel
	Supports ISATAP tunnel
	Supports ACLs based on source IPv6 address, destination IPv6 address, Layer 4 ports, or
	protocol type
	Supports MLD v1/v2 snooping
Multicast	Supports 1 K multicast groups
	Supports IGMP v1/v2/v3 snooping and IGMP fast leave
	Supports Multicast VLAN and multicast replication between VLANs
	Supports Multicast load balancing among member ports of a trunk
	Supports Controllable multicast
	Supports Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM and PIM-SSM
QoS/ACL	Supports Rate limiting on packets sent and received by an interface
	Supports Packet redirection
	Supports Port-based traffic policing and two-rate three-color CAR
	Supports Eight queues on each port
	Supports WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Supports Re-marking of the 802.1p priority and DSCP priority
	Supports Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination
	Supports IP address, port number, protocol type, and VLAN ID
	Supports Rate limiting in each queue and traffic shaping on ports
Security & access	Supports User privilege management and password protection
	Supports DoS attack defense, ARP attack defense, and ICMP attack defense
	Supports Binding of the IP address, MAC address, interface, and VLAN
	Supports Port isolation, port security, and sticky MAC
	Supports Blackhole MAC address entries
	Supports Limit on the number of learned MAC addresses
	Supports 802.1x authentication and limit on the number of users on an interface
	Supports AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	Supports SSH v2.0 and CPU defense
	Supports Blacklist and whitelist
	Supports DHCP Server, DHCP Relay, DHCP Snooping, DHCP Security
Surge protection	6KV surge protection capability on service ports (1KV on service ports on PoE devices)
Management and maintenance	Supports iStack and MAC Forced Forwarding (MFF)
	Supports Remote configuration and maintenance using Telnet
	Supports Auto-Config.and Virtual cable test
	Supports Ethernet OAM (IEEE 802.3ah and 802.1ag)
	Supports SNMP v1/v2c/v3 and RMON
	Supports MUX VLAN,GVRP and Web NMS
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0°C to 50°C(long term);
Operating environment	Relative humidity: 10%–90% (non-condensing)
Power supply	AC:
	Rated voltage range: 100 V to 240 V AC; 50/60 Hz
	Maximum voltage range: 90 V to 264 V AC; 50/60 Hz
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Weight	< 4.3Kg(without power supply)
Power consumption	< 880W(PoE: 740W)
