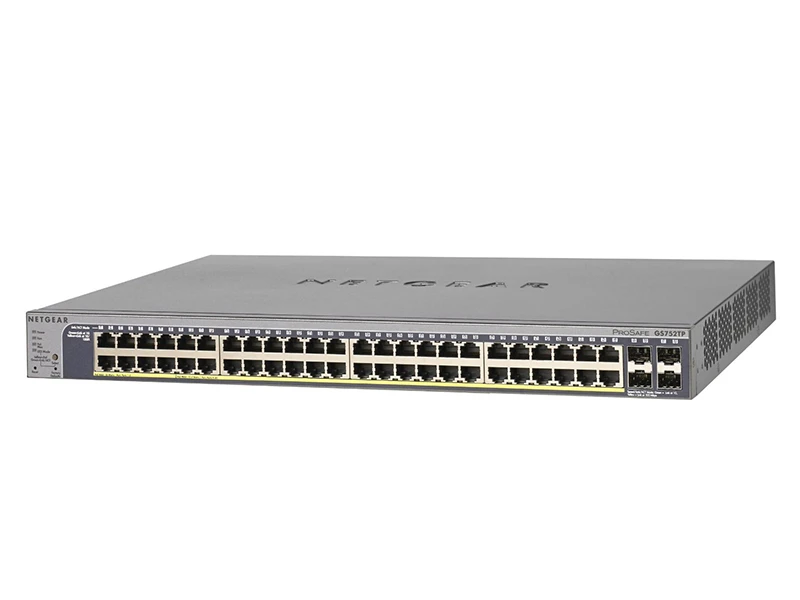

Netgear GS752TXP 10/100/1000 PoE Plus Switch
Teknik Özellikler
| Performance |
| 8 Priority queues |
| Weighted Round Robin (WRR) priority queuing |
| 16K Media Access Control (MAC) addresses with 48-bit MAC address |
| 512 Multicast groups |
| 32 static routes; 15 routed VLANs |
| 512 ARP cache entries |
| 8K DHCP snooping bindings |
| 100 shared rules for MAC, IP and IPv6 ACLs |
| Jumbo frames up to 9K packet size supported |
| L2 Services - VLANs |
| 256 VLANs supported |
| IEEE 802.1Q VLAN tagging |
| IP-based VLANs |
| MAC-based VLANs |
| Auto-Voice VLAN based on phone's OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP) |
| Auto-Video VLAN |
| L2 Services - Availability |
| Broadcast storm control |
| IEEE 802.3x (full duplex and flow control) |
| IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree |
| IEEE 802.1s Multiple Spanning Tree |
| BPDU guard |
| L2 Services - Multicast Filtering |
| IGMP snooping (v1, v2 and v3) |
| MLD snooping support (v1 and v2) |
| IGMP snooping queries |
| Block unknown multicast |
| Multicast VLAN Registration (MVR) |
| Stacking |
| 10G SFP+ or 10GBase-T copper stacking interface |
| Maximum of 6 switches within a stack |
| Stack with M4300 10G models (12X12F and 24X) |
| S3300 models: 2 ports per switch can be used as 10G Stacking Ports |
| M4300 models: 4 ports per switch can be used as 10G Stacking Ports |
| L3 Services – DHCP |
| DHCP client |
| DHCP snooping |
| L3 Services - IPv4 Routing |
| 32 Static routes |
| 512 Host ARP table entries |
| Router Discovery (IRDP) |
| Link Aggregation |
| IEEE 802.3ad - LAGs |
| Manual LAG |
| 26 LAGs with max 8 members in each LAG |
| Network Monitoring and Discovery Services |
| 802.1ab LLDP |
| SNMP (v1, v2c, v3) |
| SNMP (ifTable) |
| RMON group 1,2,3,9 |
| Network Security |
| IEEE 802.1X (Guest VLAN, RADIUS-based VLAN assignment via .1x) |
| MAC-based .1x |
| RADIUS accounting |
| L2/L3/L4 Access Control Lists (ACLs) |
| IP-based ACLs (IPv4 and IPv6) |
| MAC-based ACL |
| TCP/UDP-based ACL |
| MAC lockdown |
| MAC lockdown by the number of MACs |
| IEEE 802.1X Radius port access authentication |
| Port-based security by locked MAC addresses |
| IP source guard |
| Dynamic ARP inspection (600 Dynamic learned entries, 20 Static entries) |
| Network storm protection, DoS |
| Broadcast, unicast, multicast DoS protection |
| DoS attacks prevention |
| Quality of Service (QoS) |
| Access Lists |
| L2 MAC, L3 IP and L4 Port ACLs |
| Rate limiting (egress only) |
| Port-based QoS |
| Support for IPv6 fields |
| DiffServ QoS |
| IEEE 802.1p COS |
| Dst MAC and IP |
| IPv4 and v6 DSCP |
| TCP/UDP-based |
| WRR (Weighted Round Robin) |
| Strict priority queue technology |
| Timing and Synchronization for Time-Sensitive Applications (IEEE 802.1AS) |
| Stream Reservation Protocol (SRP) (IEEE 802.1Qat) |
| Forwarding and Queuing for Time-Sensitive Streams (IEEE 802.1Qav) |
| Audio Video Bridging Systems (IEEE 802.1BA) |
| Management |
| Web browser-based GUI management |
| Smart Control Center Software for multi-switch management |
| IP Access List |
| IPv6 Management |
| Configurable Management VLAN |
| Firmware Upgrade through Smart Control Center (TFTP) |
| Firmware download (to switch) and upload (to server) through TFTP/HTTP |
| Configuration and Image Upload (to PC) through HTTP |
| Configuration Download (to Switch) through TFTP/HTTP and upload (to server) |
| Memory & FLASH log |
| Syslog (server) |
| System password protection |
| Password management |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 4
Aktarım Türü : 10Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
Yönetilebilirlik : Yönetilebilir Layer 3
Yönetilebilir Layer 2
