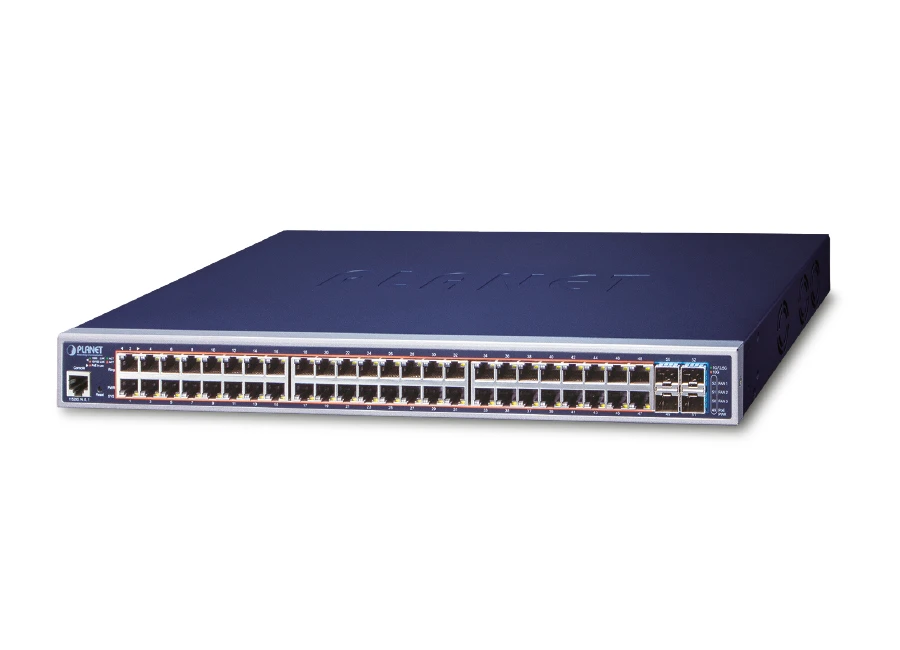

Planet GS 5220 48P4X PoE Managed Switch
Özellikler
Physical Port
- 48 10/100/1000BASE-T Gigabit RJ45 copper ports with 48-port IEEE 802.3af/at PoE+ injector
- 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- RJ45 console interface for switch basic management and setup
- Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 48 ports of IEEE 802.3af/IEEE 802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE admin-mode control
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- Temperature threshold control
- PD alive check
- PoE schedule
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Storm Control support
- Broadcast/Multicast/Unknown unicast
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs
- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- Voice VLAN
- Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- BPDU Guard
- Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 26 trunk groups with 4 ports for each trunk group
- Up to 80Gbps bandwidth (full duplex mode)
- Provides port mirror (many-to-1)
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
Layer 3 Features
- IP interfaces (Max. 8 VLAN interfaces)
- Routing table (Max. 32 routing entries)
- Routing Protocols (IPv4/IPv6 static routing)
Quality of Service
- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- IP TCP/UDP port number
- Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing on the switch port
- DSCP remarking
Multicast
- Supports IGMP snooping v1, v2 and v3
- Supports MLD snooping v1 and v2
- Querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
- Multicast VLAN Registration (MVR) support
Security
- Authentication
- IEEE 802.1x port-based/MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS/TACACS+ users access authentication
- Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Source MAC/IP address binding
- DHCP Snooping to filter untrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management
- IPv4 and IPv6 dual stack management
- Switch Management Interfaces
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSH/SSL secure access
- IPv6 IP Address/NTP/DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Reset button for system reboot or reset to factory default
- Dual images
- DHCP Relay
- DHCP Option 82
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- Network Diagnostic
- ICMPv6/ICMPv4 remote ping
- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
- SMTP/Syslog remote alarm
- Four RMON groups (history, statistics, alarms and events)
- SNMP trap for interface Link Up and Link Down notification
- System Log
- PLANET Smart Discovery Utility for deployment management
- Smart fan with speed control

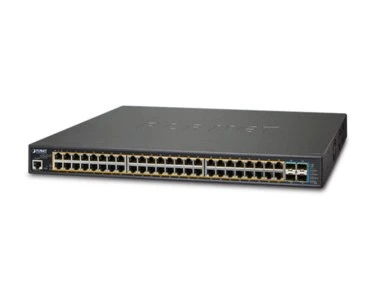

Redundant Power System (GS-5220-48P4XR)
- Redundant 100~240V AC/36-60V DC dual power
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces (Port-49 to Port-52) |
Compatible with 1000BASE-SX/LX/BX SFP transceiver | |
Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
Switch Architecture | Store-and-Forward |
Switch Fabric | 176Gbps/non-blocking |
Throughput | 130Mpps@64Bytes |
Address Table | 16K entries, automatic source address learning and aging |
Shared Data Buffer | 32M bits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10K bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
Weight | GS-5220-48P4X:4950g |
GS-5220-48P4XR:4955g | |
LED | System: |
SYS (Green) | |
AC/PWR (Green) | |
DC (Green) (GS-5220-48P4XR only) | |
Fan1/2/3 Alert ( Red ) | |
PoE PWR Alert ( Red ) | |
PoE Ethernet Interfaces (Port-1 to Port-48): | |
PoE-in-Use (Orange) | |
Ethernet Interfaces (Port-1 to Port-48): | |
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) | |
1/10G SFP+ Interfaces (Port-49 to Port-52): | |
1G (Green), 10G (Orange) | |
Power Consumption | GS-5220-48P4X: |
Max. 461 watts/1582 BTU | |
GS-5220-48P4XR: | |
AC: Max. 461 watts/11582 BTU | |
DC: Max. 36.6 watts/124.88 BTU | |
Power Requirements – AC | AC 100~240V, 50/60Hz, 7A |
Power Requirements – DC | GS-5220-48P4XR: |
DC 36~60V, 2A | |
ESD Protection | 6KV DC |
Fan | 3 smart fans |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at PoE PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 54V DC, 36 watts (max.) |
Power Pin Assignment | End-span: 1/2(+), 3/6(-) |
PoE Power Budget | 400 watts (max.) |
PoE Ability PD @ 7 watts | 48 units |
PoE Ability PD @ 15 watts | 26 units |
PoE Ability PD @ 30 watts | 13 units |
Layer 2 Management Functions | |
Port Configuration | Port disable/enable |
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
Flow control disable/enable | |
Port Status | Display each port’s speed duplex mode, link status, flow control status, |
auto-negotiation status, trunk status | |
Port Mirroring | TX/RX/Both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged based VLAN |
Q-in-Q tunneling | |
Private VLAN Edge (PVE) | |
MAC-based VLAN | |
Protocol-based VLAN | |
Voice VLAN | |
MVR (Multicast VLAN registration) | |
Up to 255 VLAN groups, out of 4095 VLAN IDs | |
Link Aggregation | IEEE 802.3ad LACP/static trunk |
26 groups with 4 port per trunk | |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | |
QoS | Traffic classification based, strict priority and WRR |
8-level priority for switching: | |
- Port number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP/ToS field in IP packet | |
IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups |
IGMP querier mode support | |
MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups |
MLD querier mode support | |
Access Control List | IP-based ACL/MAC-based ACL |
Up to 256 entries | |
Bandwidth Control | Per port bandwidth control |
Ingress: 100Kbps~1000Mbps | |
Egress: 100Kbps~1000Mbps | |
Layer 3 Functions | |
IP Interfaces | Max. 8 VLAN interfaces |
Routing Table | Max. 32 routing entries |
Routing Protocols | IPv4 static routing |
IPv6 static routing | |
Management | |
Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
SNMP MIBs | GS-5220-48P4X: |
RFC 1213 MIB-II | |
RFC 1493 Bridge MIB | |
RFC 1643 Ethernet MIB | |
RFC 2863 Interface MIB | |
RFC 2665 Ether-Like MIB | |
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
RFC 2737 Entity MIB | |
GS-5220-48P4XR: | |
RFC 2618 RADIUS Client MIB | |
RFC 2863 IF-MIB | |
RFC 2933 IGMP-STD-MIB | |
RFC 3411 SNMP-Frameworks-MIB | |
RFC 4292 IP Forward MIB | |
RFC 4293 IP MIB | |
RFC 4836 MAU-MIB | |
IEEE 802.1X PAE | |
LLDP | |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | GS-5220-48P4X: |
IEEE 802.3 10BASE-T | |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3ab Gigabit 1000T | |
IEEE 802.3ae 10Gb/s Ethernet | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.1s Multiple Spanning Tree Protocol | |
IEEE 802.1p Class of Service | |
GS-5220-48P4XR: | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP v1 | |
RFC 2236 IGMP v2 | |
RFC 3376 IGMP v3 | |
RFC 2710 MLD v1 | |
FRC 3810 MLD v2 | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : 10Gbit Fiber
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı : 48 Port
